A/C Recirculating Air Duct
REMOVAL1. Remove the A/C evaporator housing.

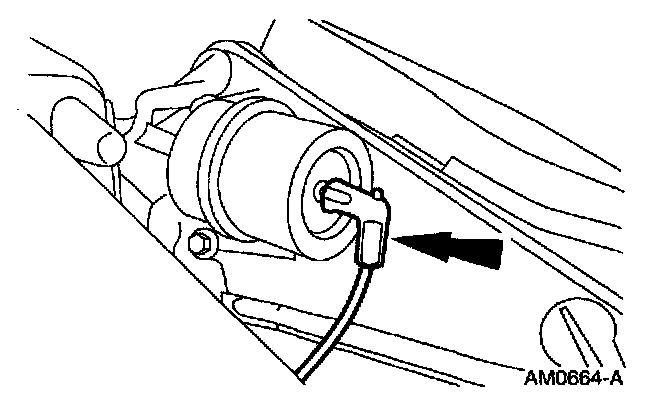

2. Disconnect the vacuum hose.

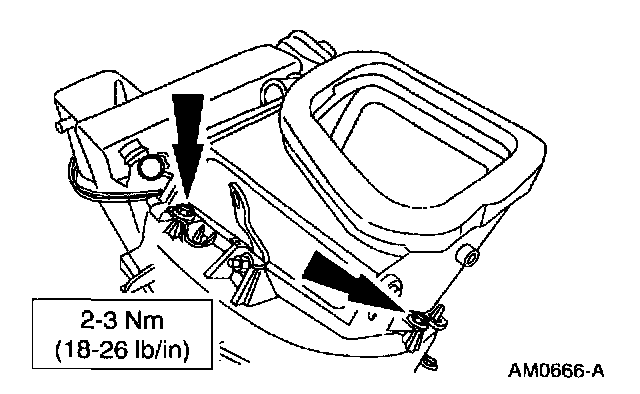

3. Remove the three screws and remove the A/C recirculating air duct.
INSTALLATION
1. Follow the removal procedure in reverse order.
1. Remove the A/C evaporator housing.
2. Disconnect the vacuum hose.
3. Remove the three screws and remove the A/C recirculating air duct.
INSTALLATION
1. Follow the removal procedure in reverse order.
