Home >> Lincoln >> 1999 >> Continental V8-4.6L DOHC VIN V >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle

Automatic Transmission/Transaxle

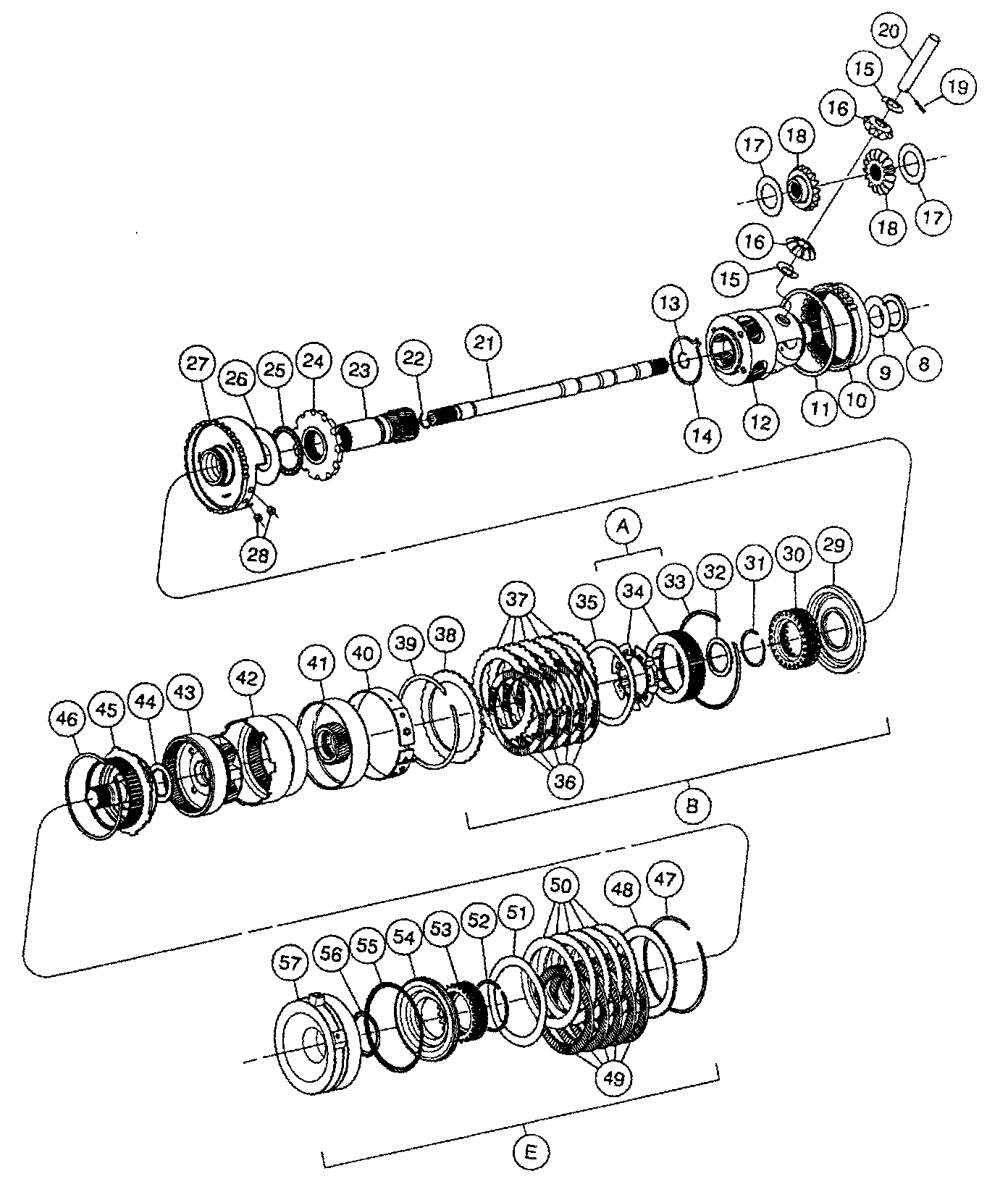

1 Of 9:

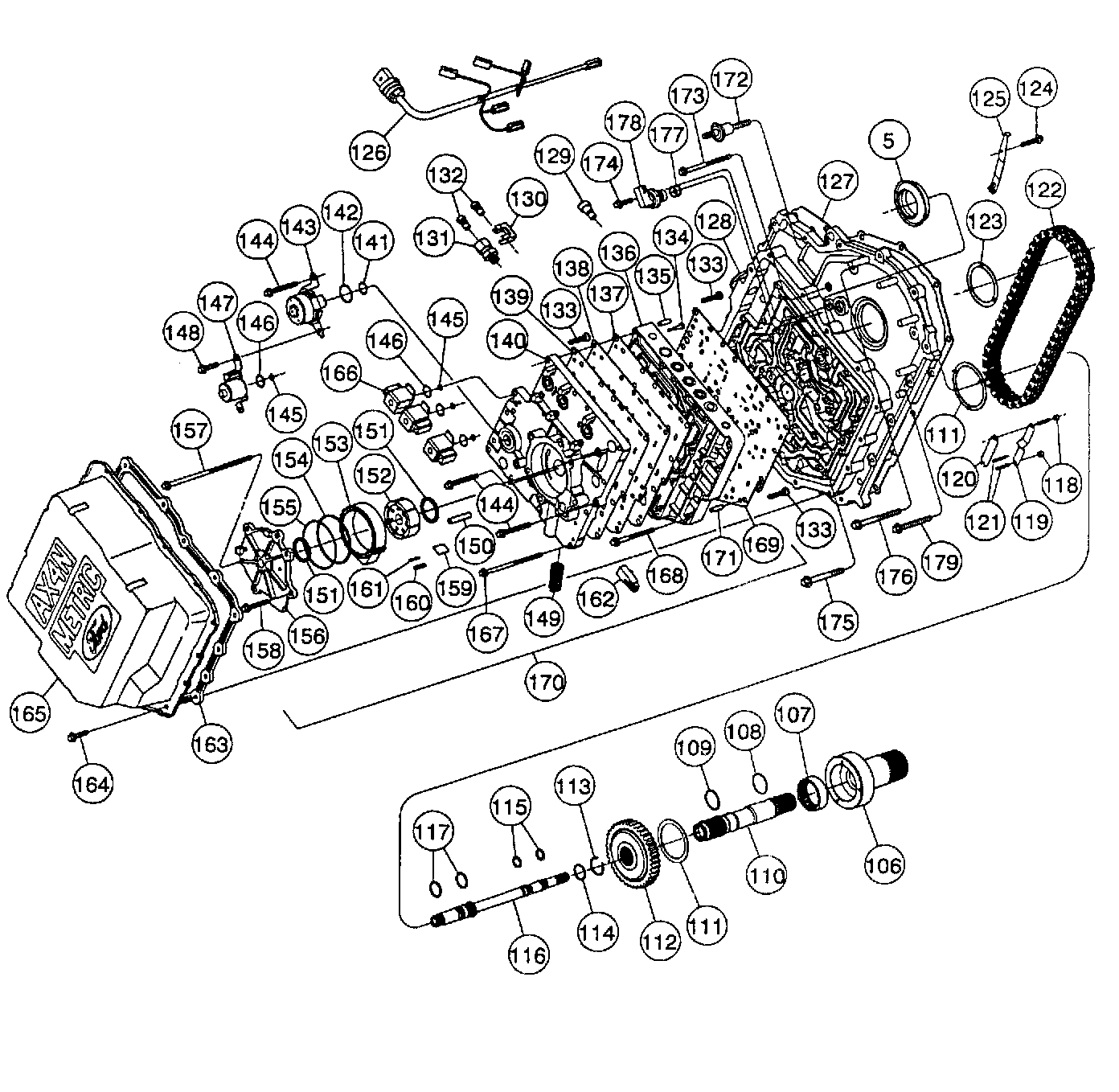

2 Of 9:

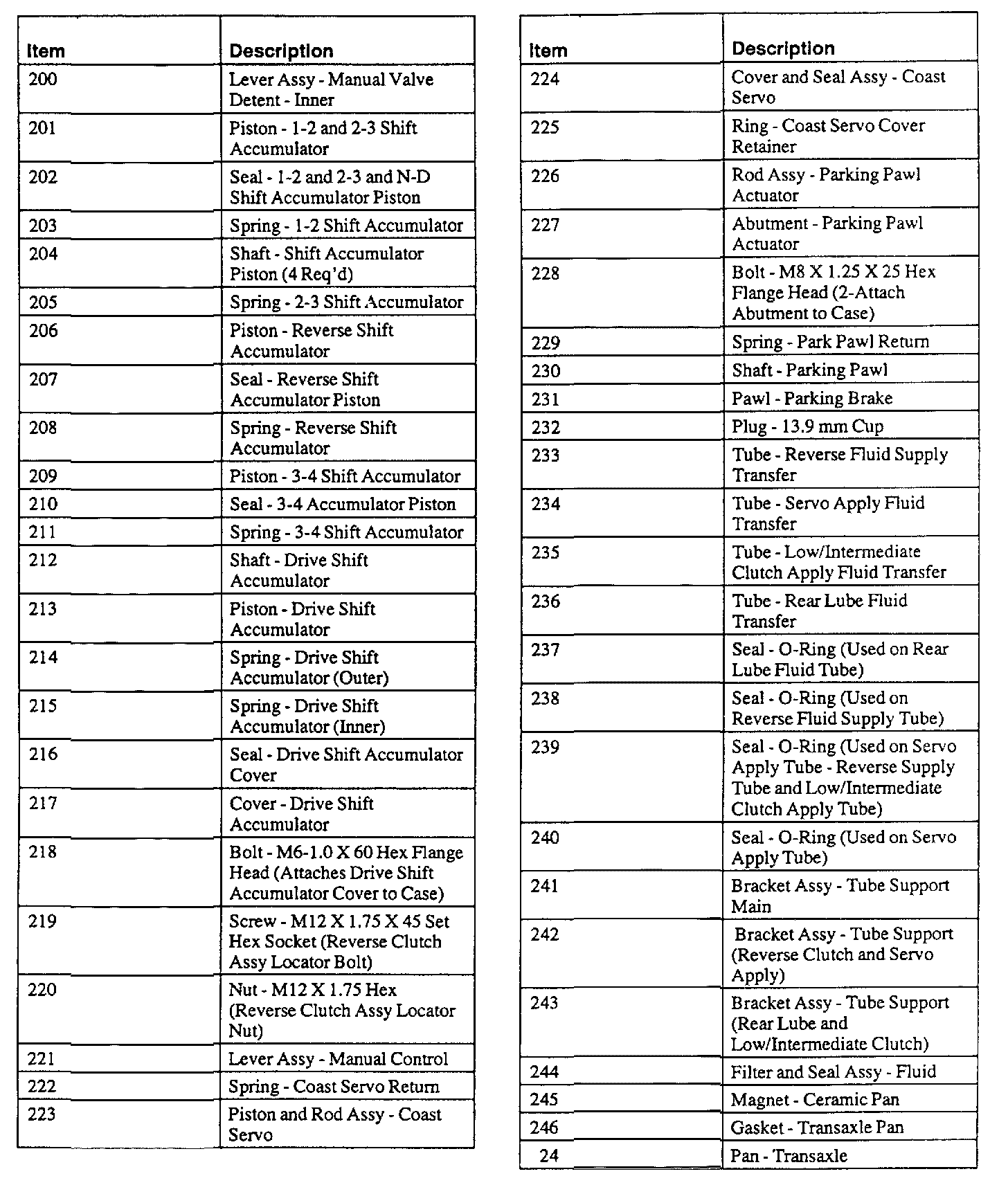

3 Of 9:




4 Of 9:




5 Of 9:




6 Of 9:




7 Of 9:




8 Of 9:




9 Of 9:





Disassembled Views
