System Diagram

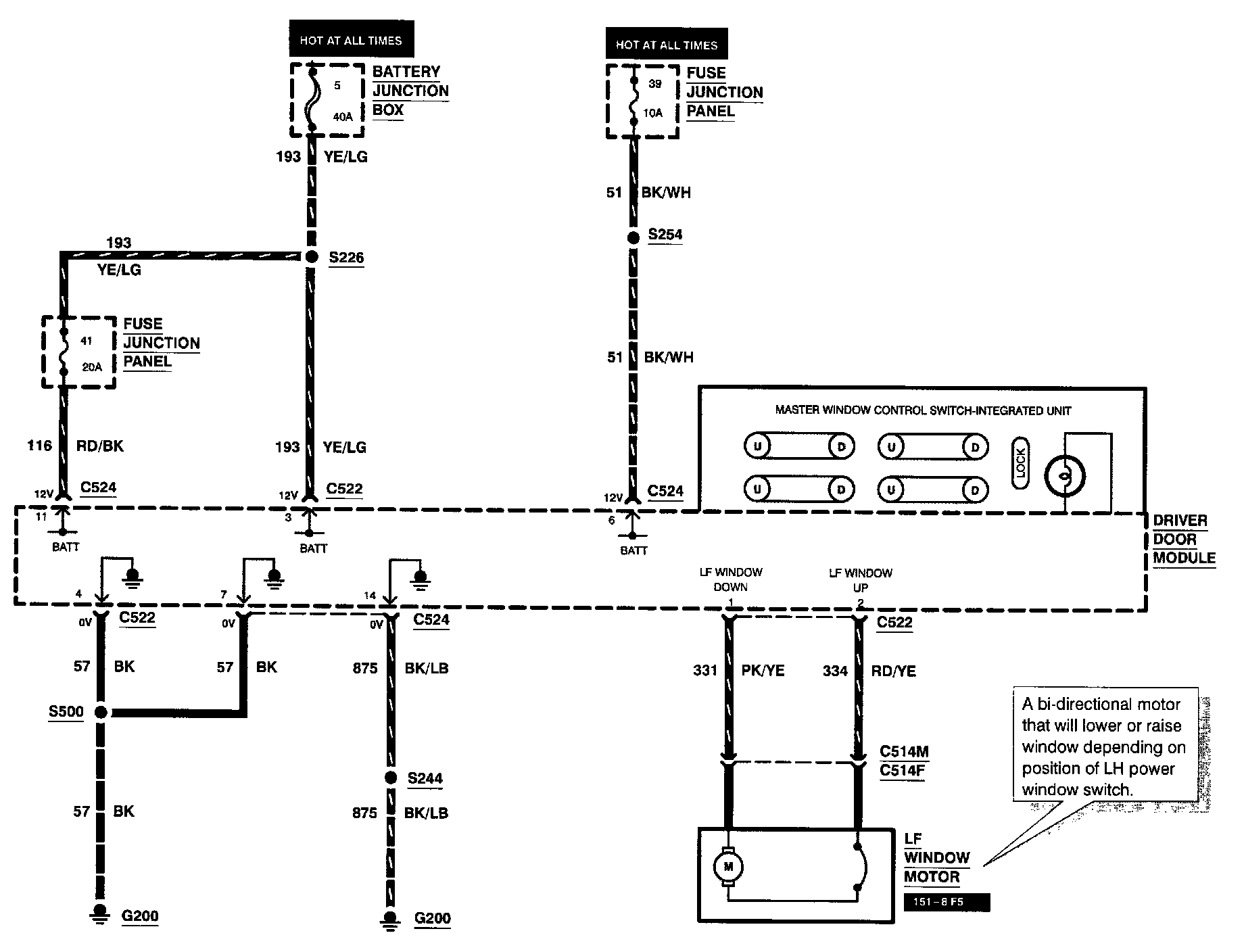

Diagram 100-1:

Battery Junction Box
Driver Door Module
Fuse 5
Fuse 39
Fuse 41
Fuse Junction Panel
LF Window Motor
Master Window Control Switch-Integrated Unit

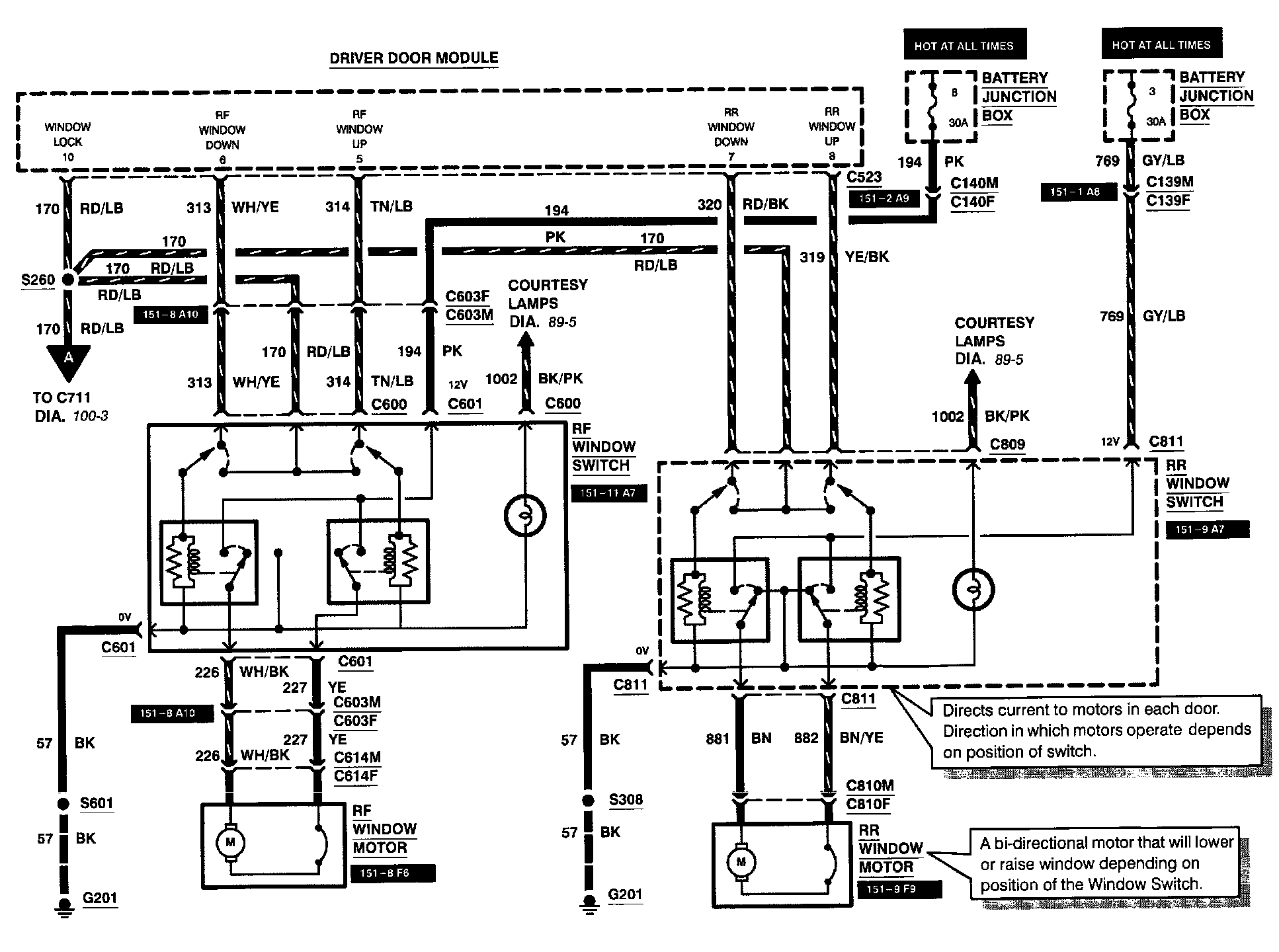

Diagram 100-2:

Battery Junction Box
Driver Door Module
Fuse 3
Fuse 8
RF Window Motor
RF Window Switch
RR Window Motor
RR Window Switch

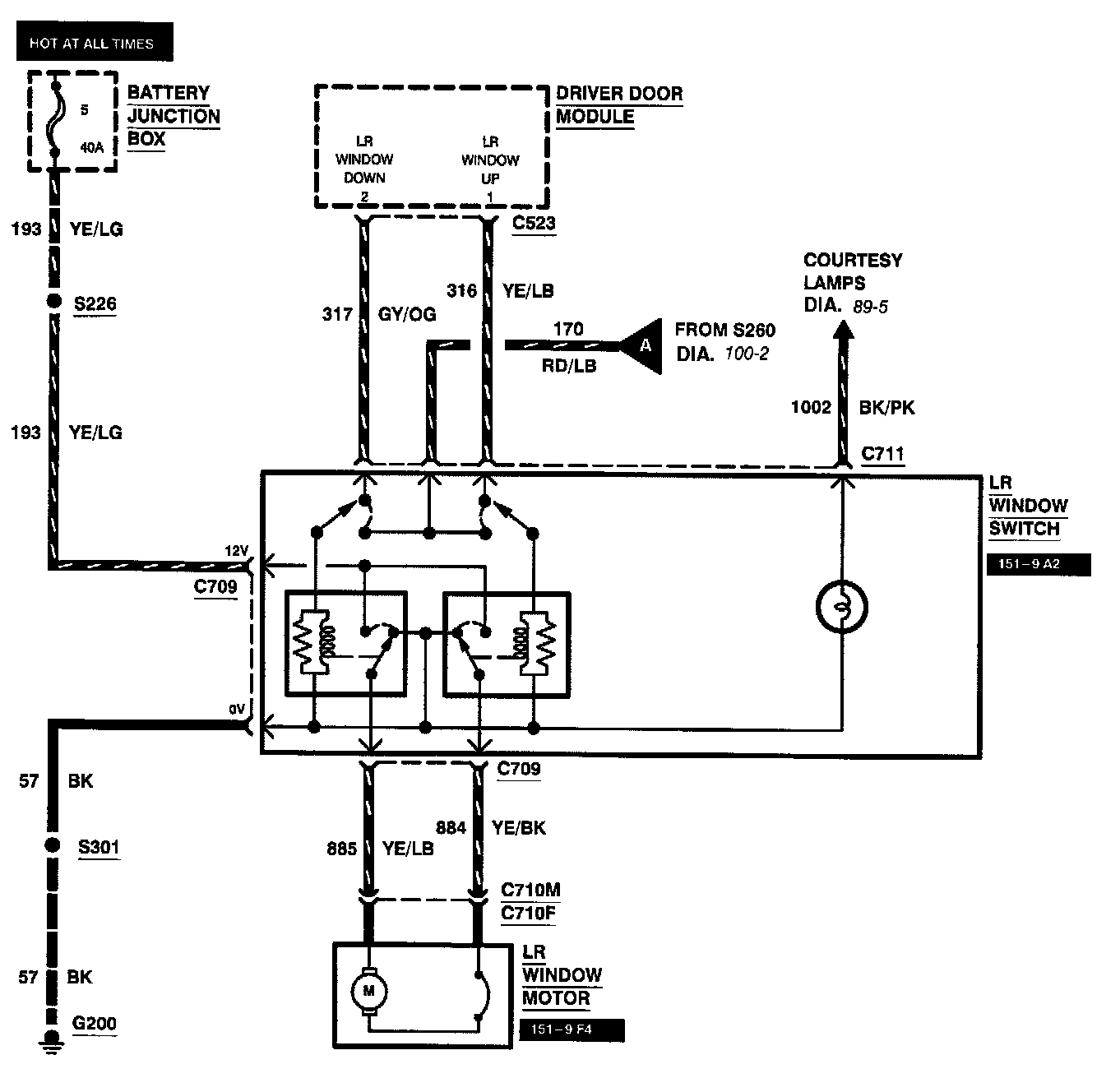

Diagram 100-3:

Battery Junction Box
Driver Door Module
Fuse 5
LR Window Motor
LR Window Switch
