Power Window Control Module

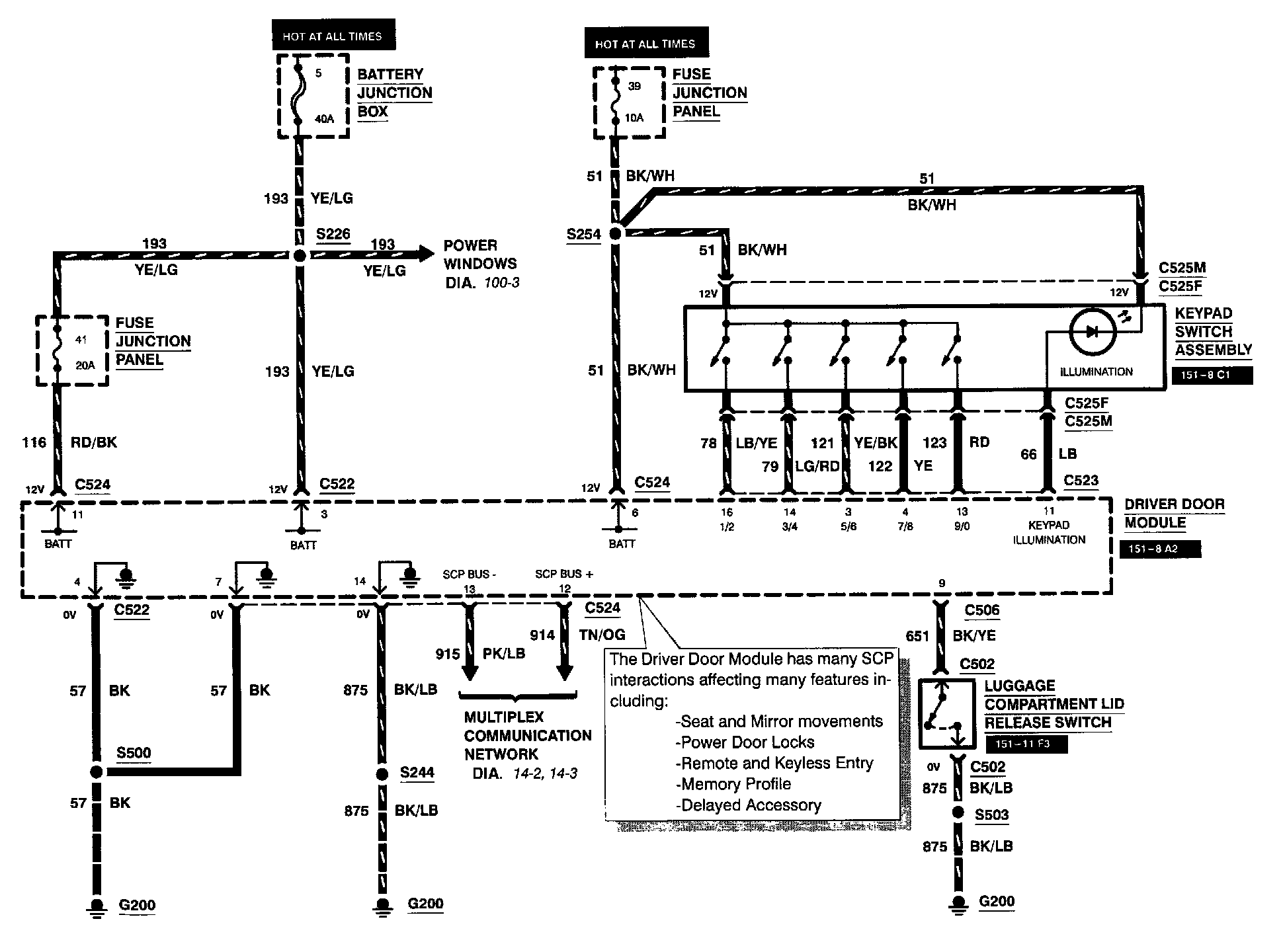

Diagram 57-1:

Battery
Battery Junction Box
Driver Door Module
Fuse 5
Fuse 39
Fuse 41
Fuse Junction Panel
Illumination
Keypad Switch Assembly
Luggage Compartment Lid Release Switch

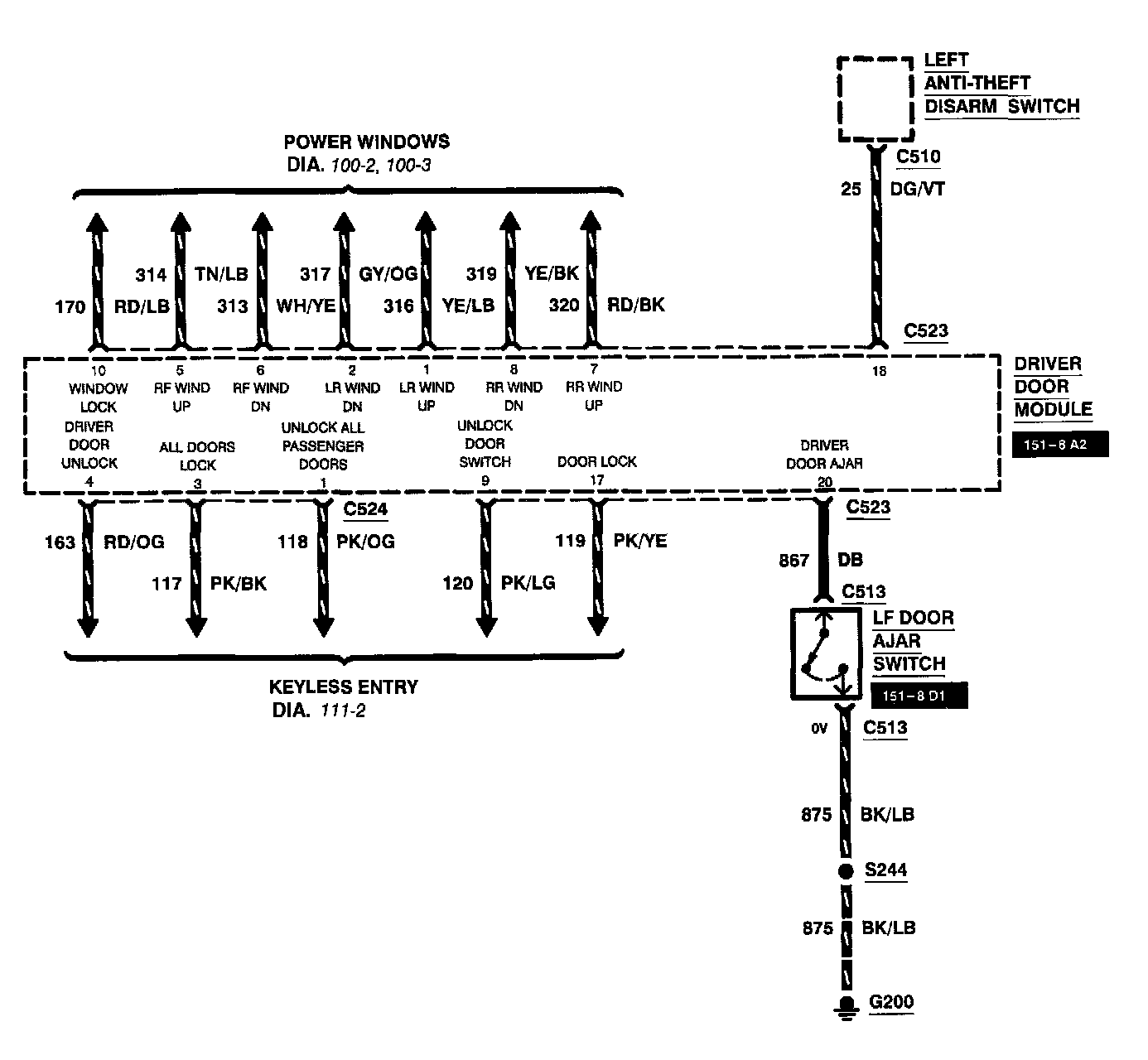

Diagram 57-2:

Driver Door Module
Exterior Rear View Mirror Switch
LF Seat Control Switch
LF Window Motor
Lock
Master Window Control Switch Integrated Unit

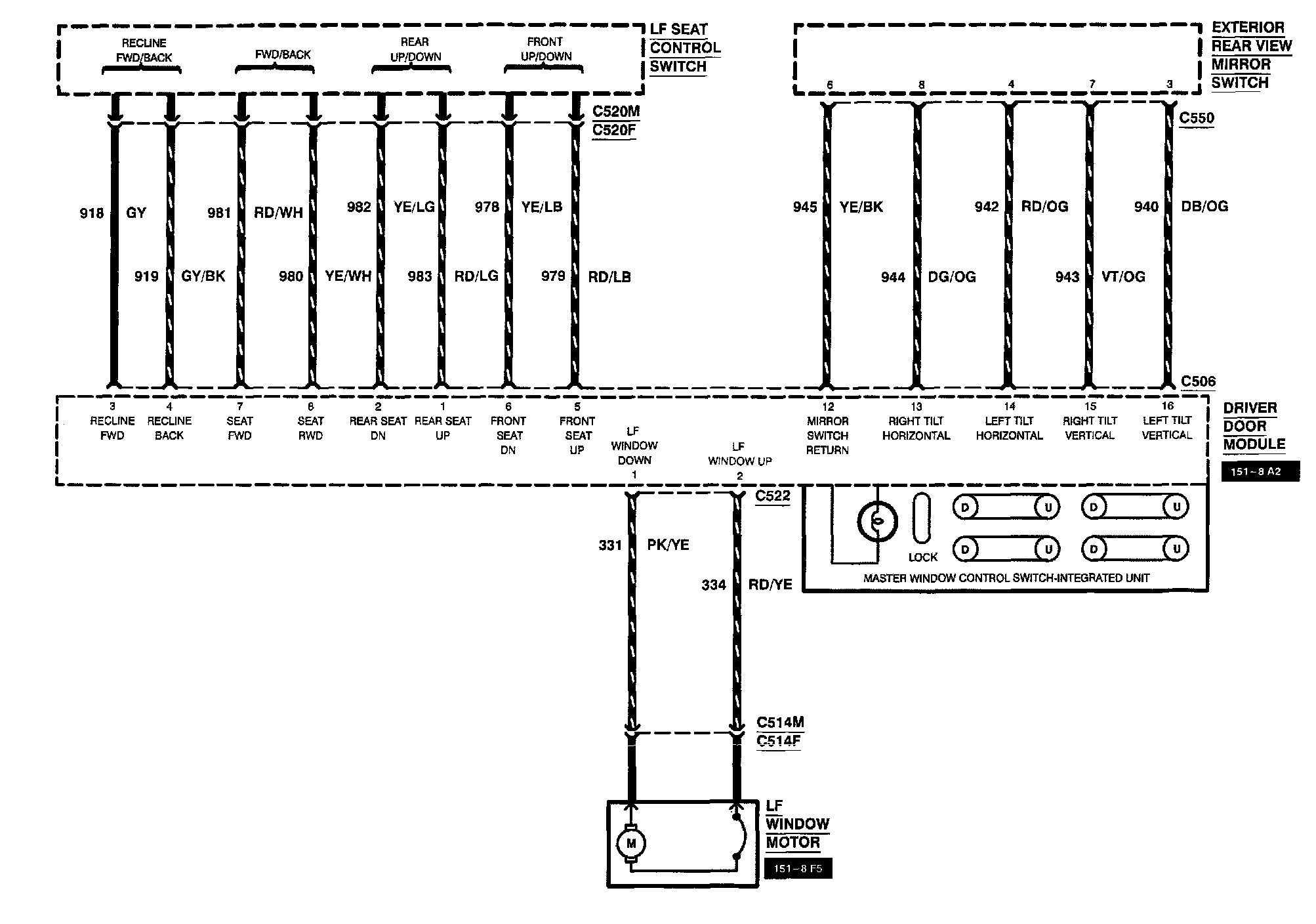

Diagram 57-3:

All Doors Lock
Door Lock
Driver Door Ajar
Driver Door Module
Driver Door Unlock
Left Anti-Theft Disarm Switch
LF Door Ajar Switch
Unlock All Passenger Doors
Unlock Door Switch
Window Lock
