Home
>>
Lincoln
>>
1999
>>
Continental V8-4.6L DOHC VIN V
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System

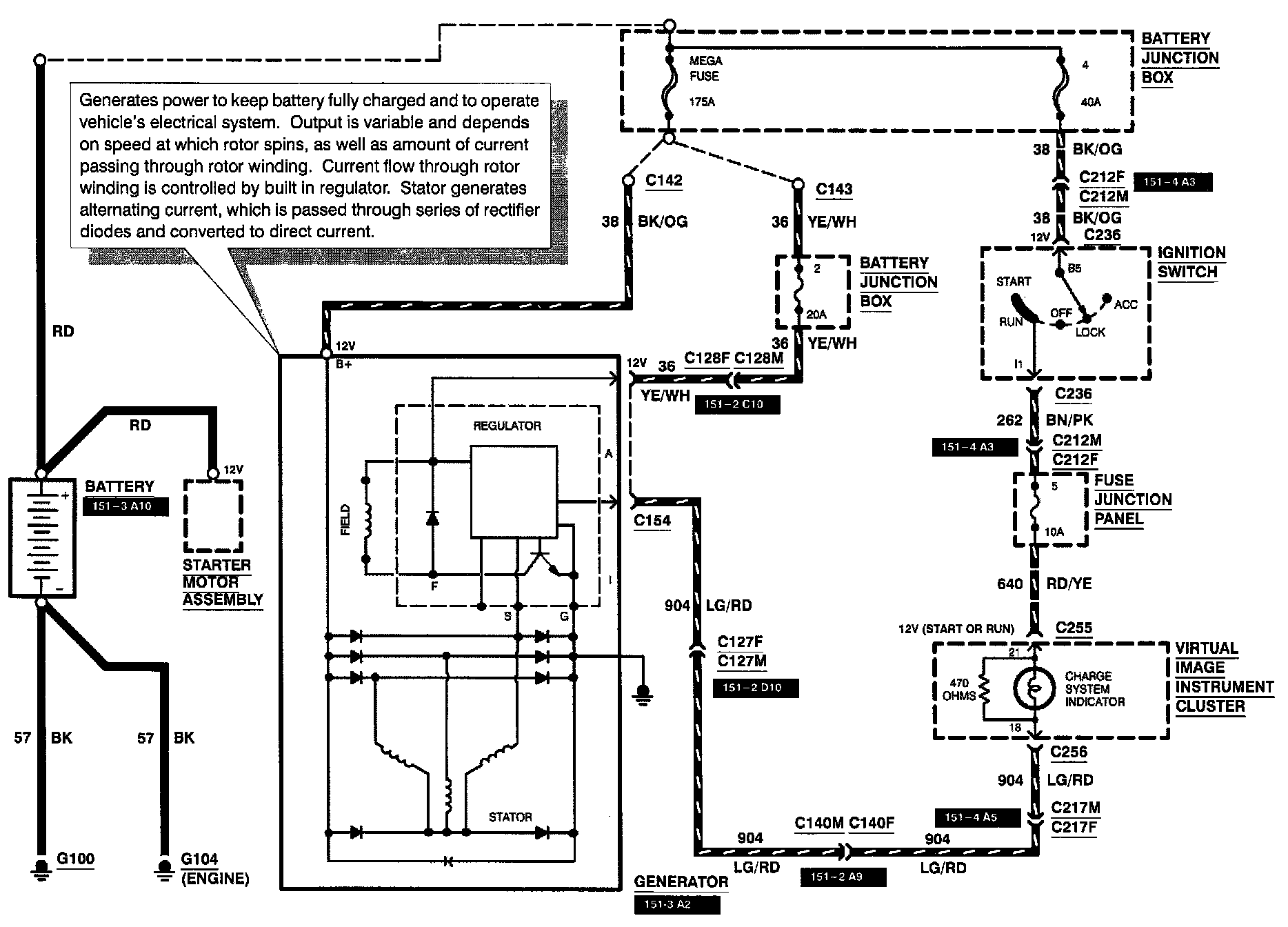

Charging System
Diagram 12-1:
