Support Bracket

Removal





1. Turn the air suspension switch off.
2. Raise and support the vehicle.
3. Remove the tire and wheel assembly.





CAUTION: Do not allow the rear disc brake caliper to hang from the rear wheel brake hose.

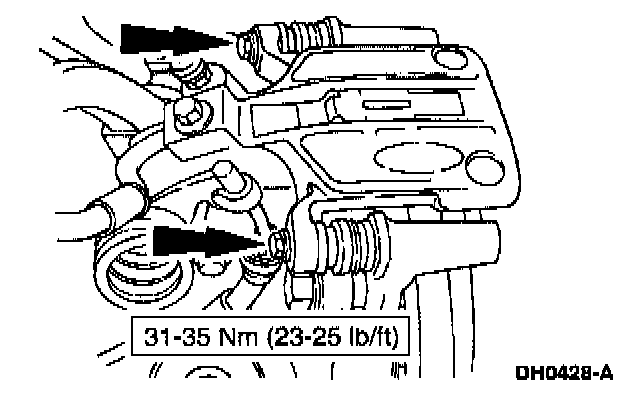

4. Remove the rear disc brake caliper bolts and position the caliper aside.

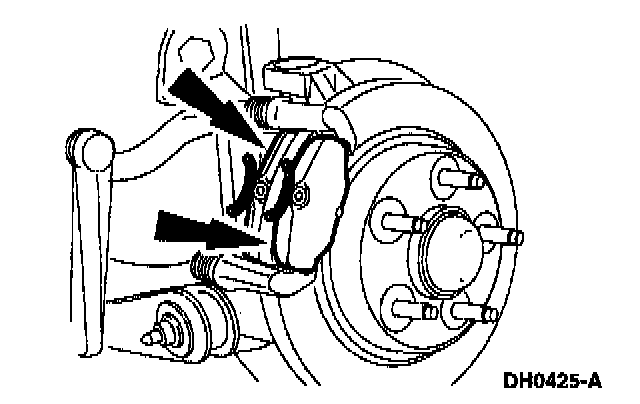

5. Remove the brake pads.

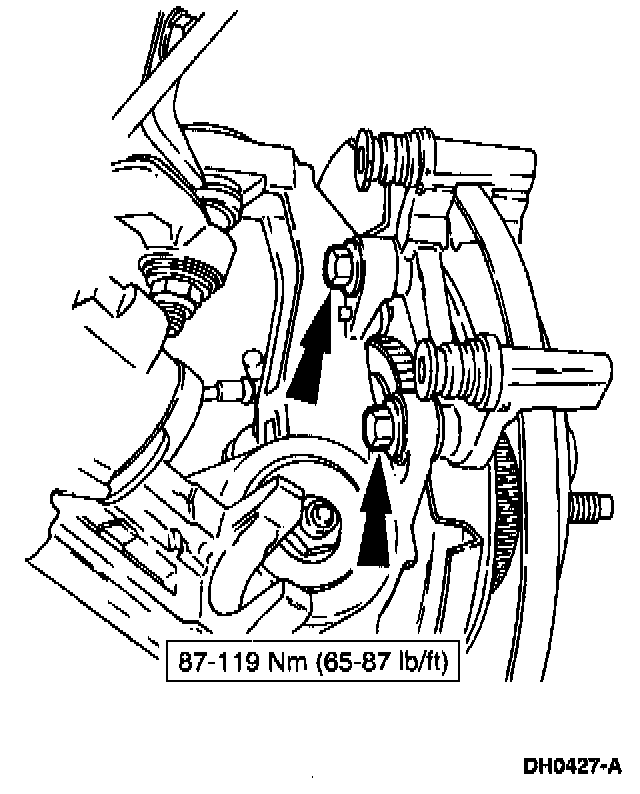

6. Remove the rear disc support bracket bolts and bracket.

Installation








1. Follow the removal procedure in reverse order.
