Rear

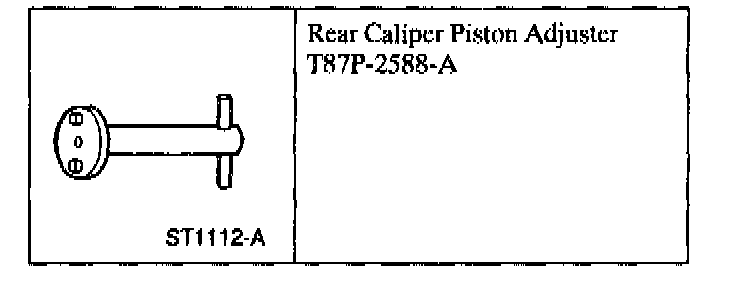

Special Tools:

Removal

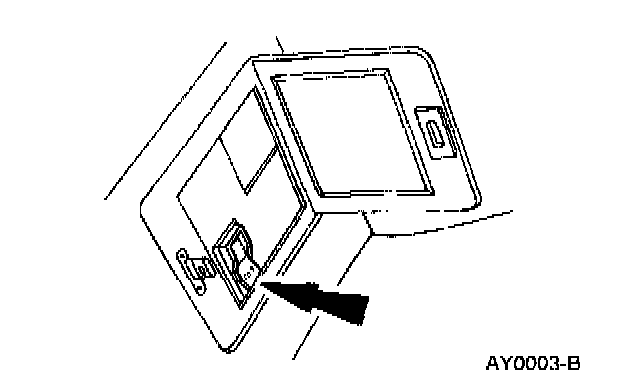

1. Turn the air suspension switch OFF.
2. Raise and support the vehicle.
3. Remove the wheel and tire assembly.





4. Remove the upper rear brake pin retainer.

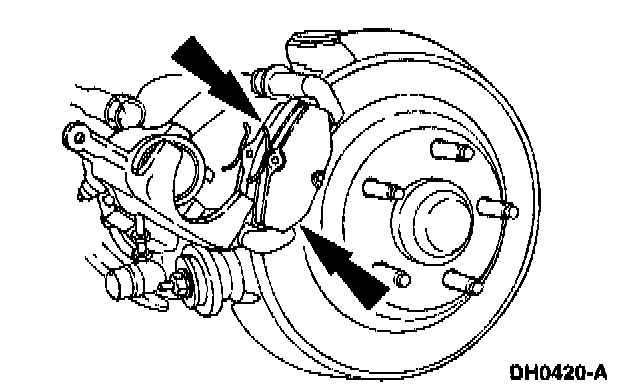

5. Rotate the rear disc brake caliper downward, and remove the brake pads.

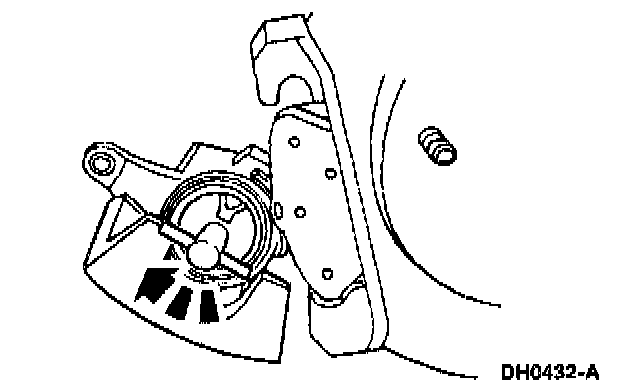

6. Compress the rear disc brake piston and adjuster into rear disc brake caliper using Rear Caliper Piston Adjuster.

Installation





1. Install the brake pads.

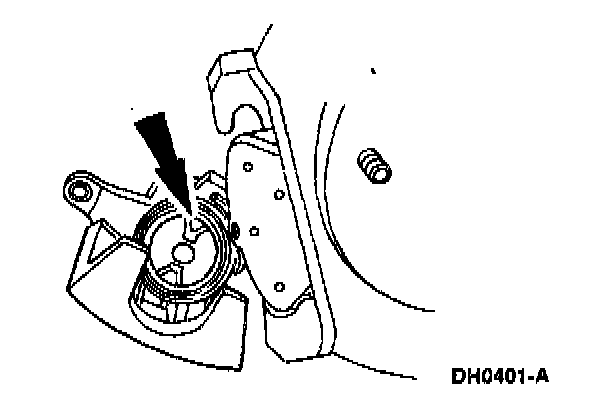

NOTE: Make sure one of the two slots in the rear brake piston and adjuster face is positioned so it will engage the nib on the pad.

2. Rotate the rear disc brake caliper upward.





3. Tighten the rear brake pin retainer.
4. Install the rear wheel and tire assemblies.





5. Turn the air suspension service switch ON.
