Brake Pedal Assy: Service and Repair

Removal
1. Disconnect the battery ground cable.

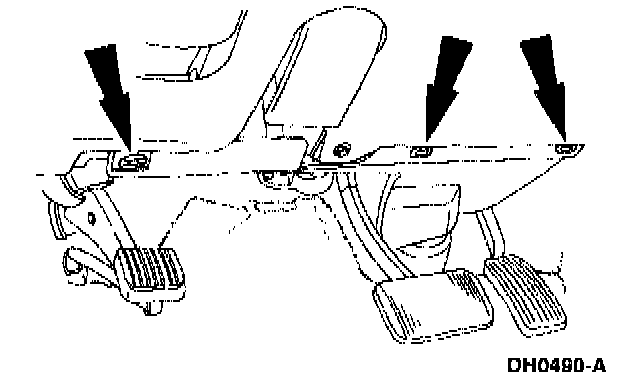

2. Remove the push pins and remove the instrument panel close-out panel.

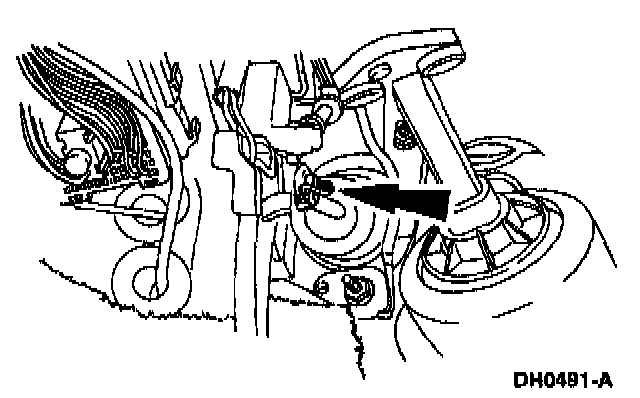

3. Disconnect the wiring harness from the speed control deactivate switch.





4. Remove the yellow push rod retainer and white nylon washer.

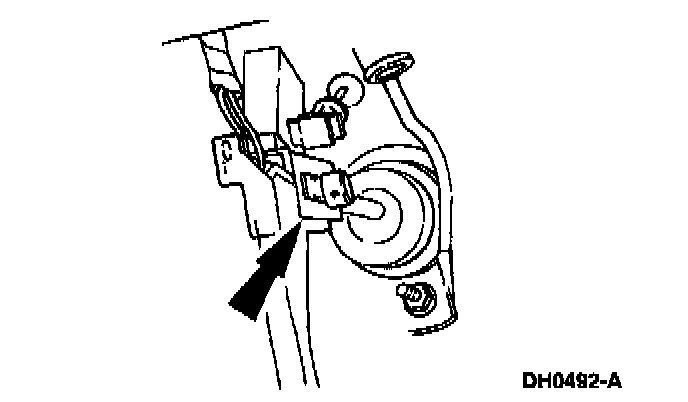

5. Slide the stoplight switch and booster push rod from the brake pedal pin.

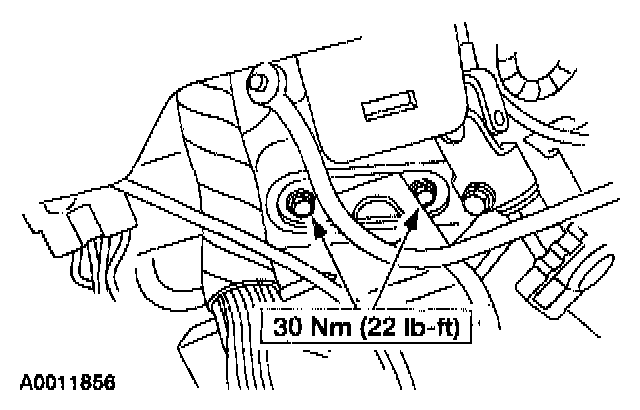

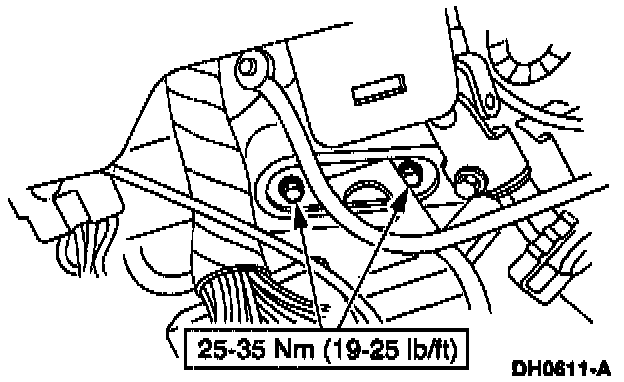

6. Remove the four brake booster retaining nuts.

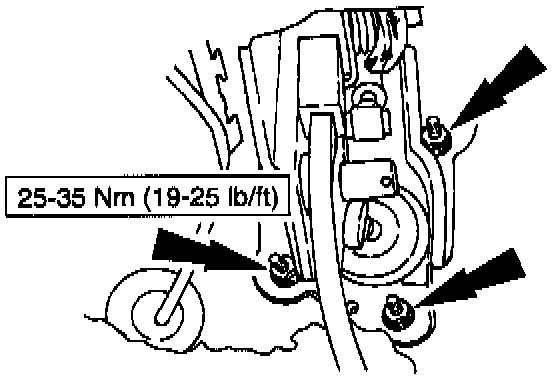

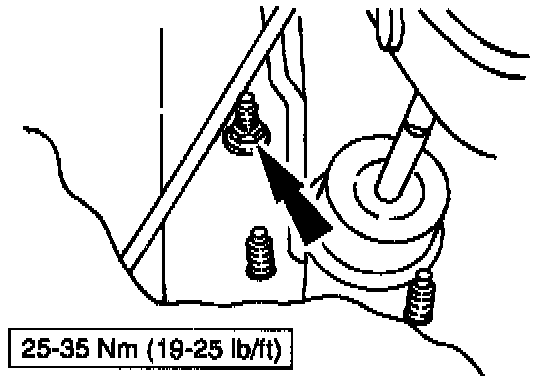

7. Remove the two bolts retaining the brake pedal to the upper cowl panel reinforcement, and remove the brake pedal.

Installation











1. Follow the removal procedure in reverse order.
