Seat Front Armrest

DISASSEMBLY
1. Remove the armrest.

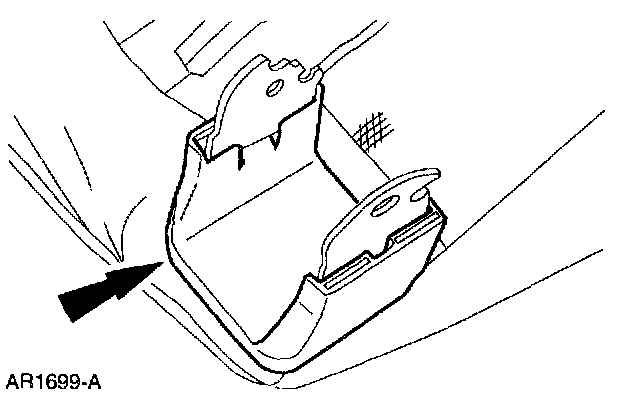

2. Remove the trim cover.







3. Release the J retainers.

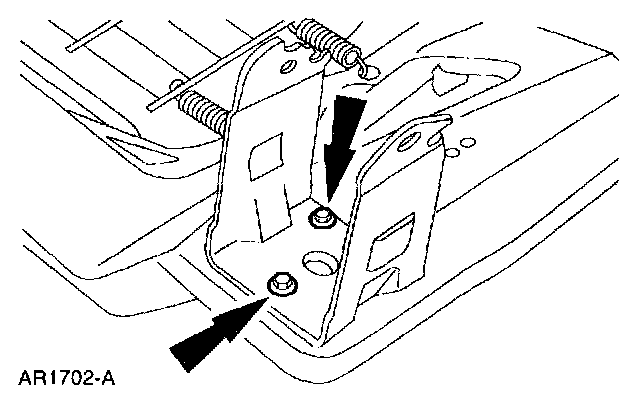

4. Remove the bracket.

ASSEMBLY
1. To assemble, reverse the disassembly procedure.
