Seat Track: Service and Repair

REMOVAL

WARNING: BE SURE TO READ AND FOLLOW ALL AIR BAG WARNINGS CONTAINED IN SEAT-FRONT SEAT BACKREST AND FRAME WITH SIDE AIR BAG DISASSEMBLY AND ASSEMBLY PROCEDURES.

CAUTION: Use care when handling the seat and track assembly. Dropping the assembly or sitting on a seat not secured in the vehicle may result in damaged components.

1. Remove the front seat.

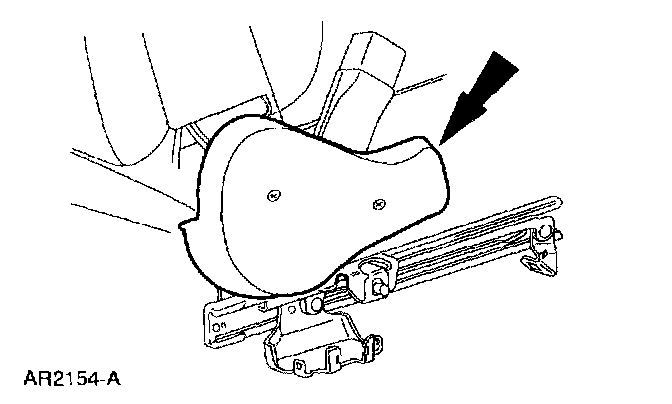

2. Remove the cover.

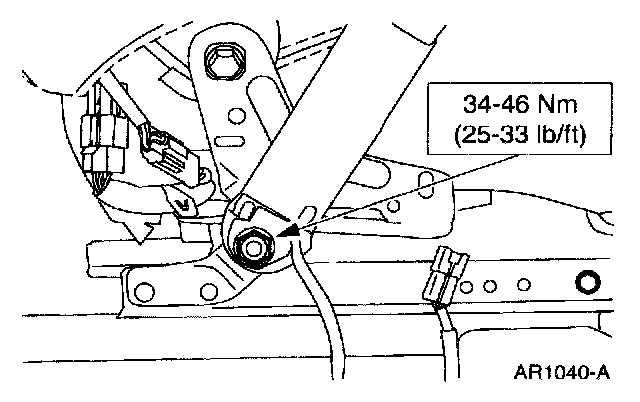

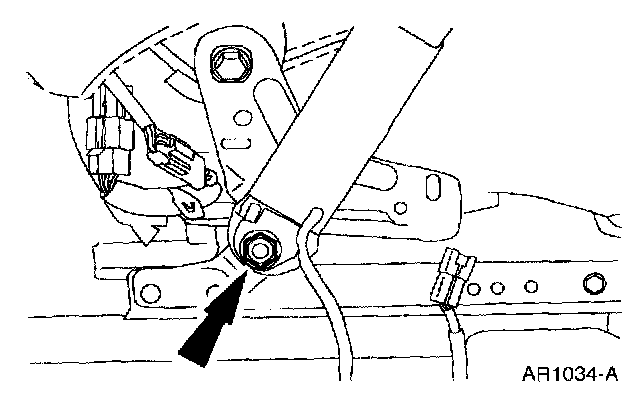

3. Remove the safety belt buckle.

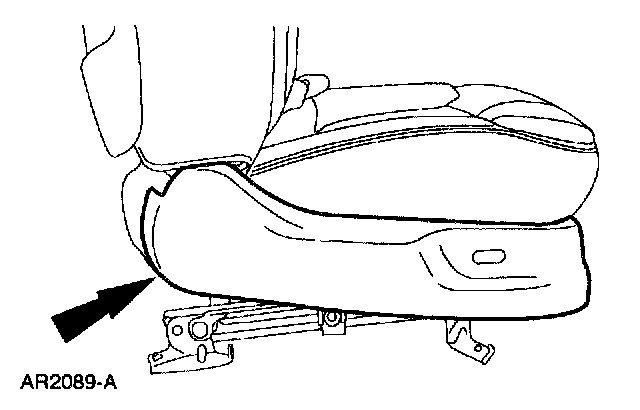

4. Remove the front seat cushion side shield.

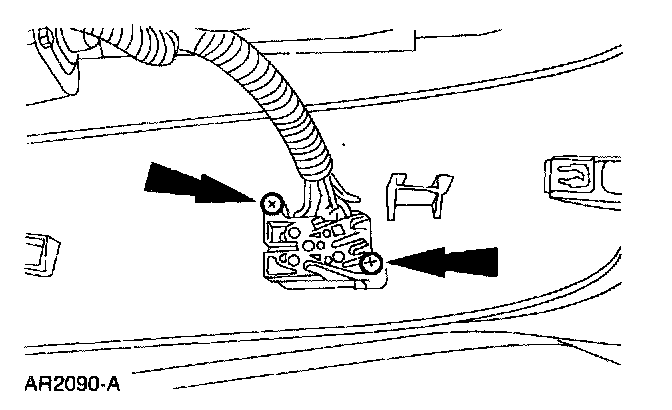

5. Remove the screws.

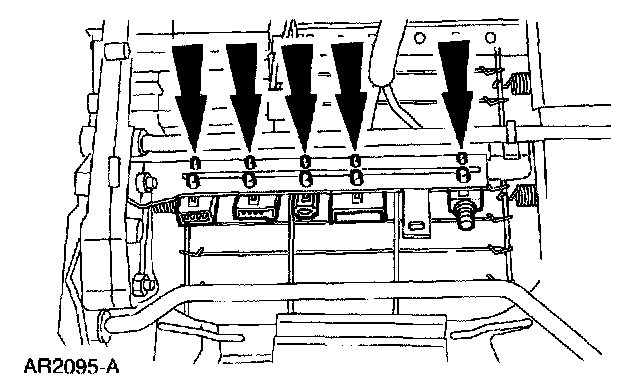

6. Disconnect the side air bag, heated seat, telephone and powerpoint connectors (if equipped).

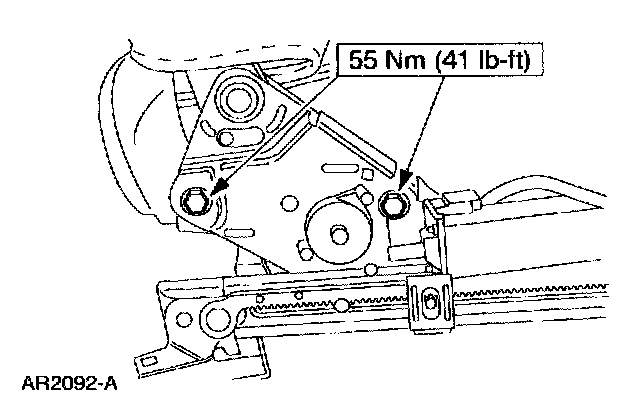

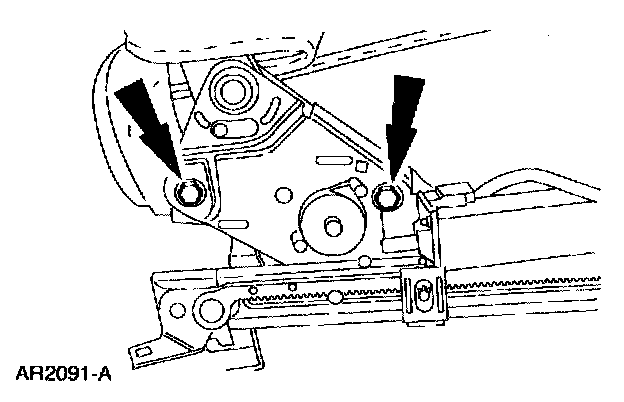

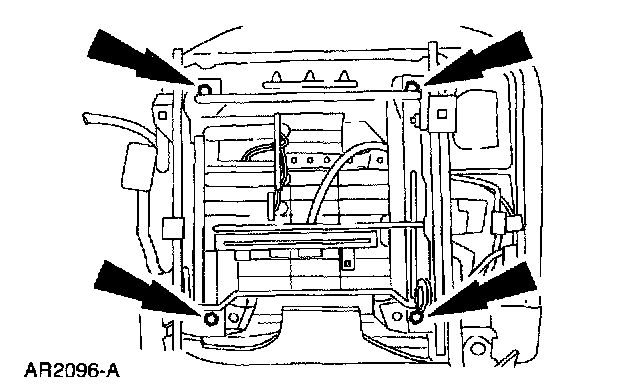

7. Remove the bolts.

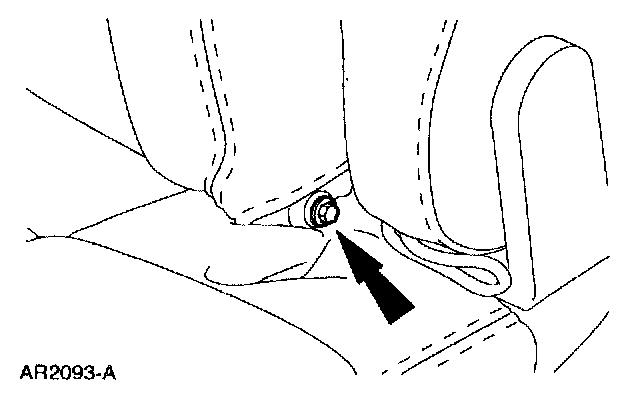

8. Remove the bolt.

CAUTION: When positioning the seat or separating the seat bottom from the back, be careful not to damage the seat backrest pivot and any of the wires or cables from the seat backrest to the seat bottom. This can cause damage to one of the seat components.

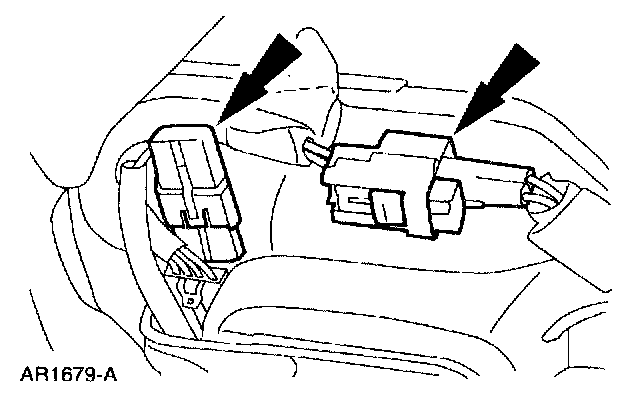

9. Release the connectors.







10. Remove the seat track.

INSTALLATION






















1. To install, reverse the removal procedure.
2. Check the restraint system for proper operation.
3. Prove out the air bag system.
