Seat Temperature Element: Service and Repair

REMOVAL

CAUTION: Be sure to read and follow all side air bag warnings contained in Seat-Front Seat Backrest and Frame with Side Air Bag disassembly and assembly procedures.

NOTE: The driver seat procedure is shown, the passenger seat procedure is similar.

1. Remove the seat.
2. Remove the Seat track.

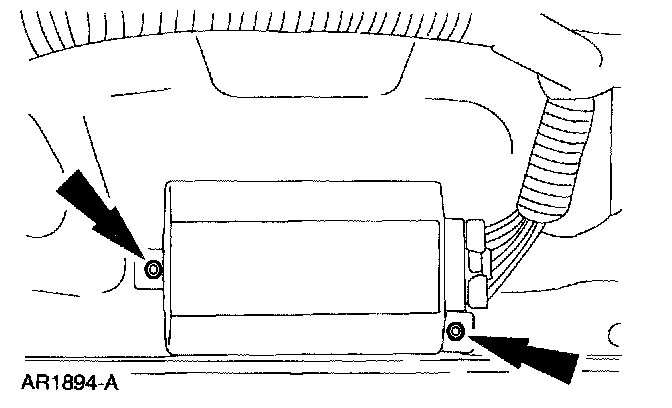

3. Remove the rivets.

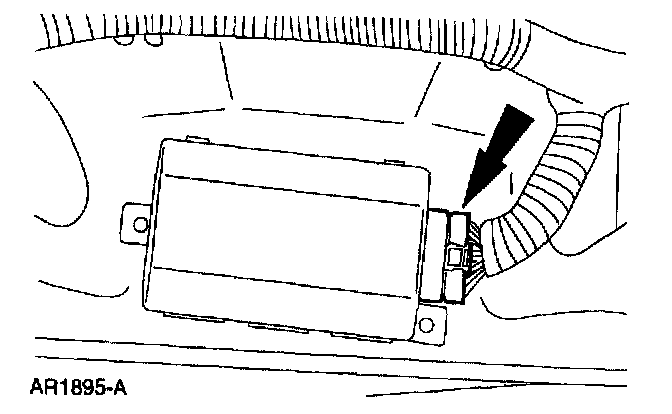

4. Disconnect the connector.

INSTALLATION
1. To install, reverse the removal procedure.
2. Check the restraint system for proper operation.
3. Prove out the air bag system.
