Power Seat Switch: Service and Repair

REMOVAL
1. Disconnect the battery ground cable and wait at least one minute.
2. Remove the front door trim panel.

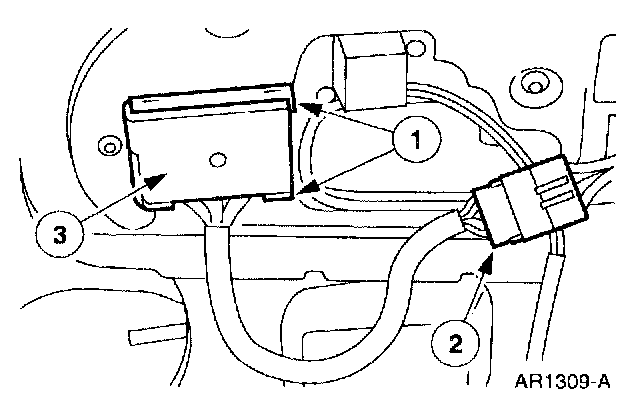

3. Remove the seat regulator control switch.
1. Release the clips.
2. Disconnect the electrical connectors.
3. Remove the seat regulator control switch.

INSTALLATION
1. Follow the removal procedure in reverse order.
