Power Mirror Motor: Service and Repair

REMOVAL
1. Remove the outside rear view mirror.
2. Remove the outside rear view mirror glass.

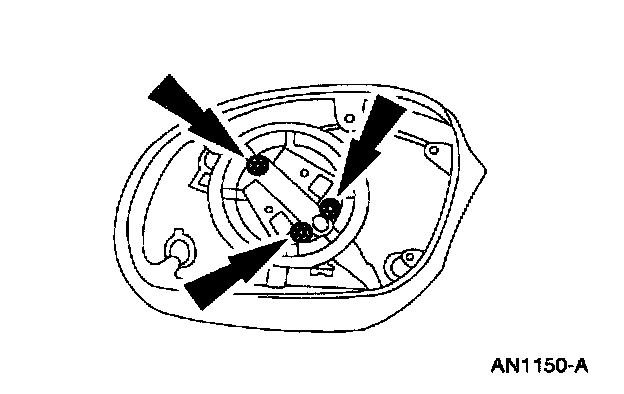

3. Remove the outside rear view mirror motor.
^ Remove the screw.
^ Remove the outside rear view mirror motor and the wiring assembly.

INSTALLATION

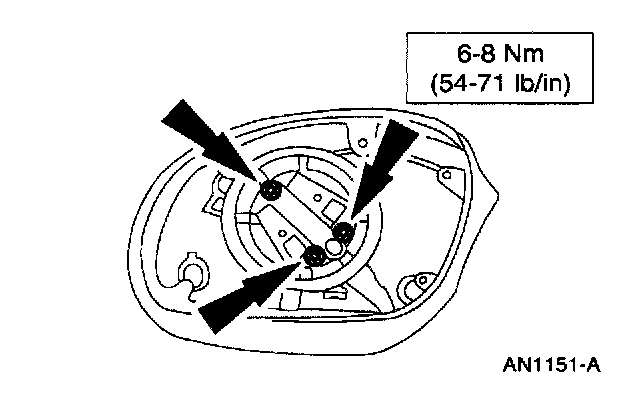

1. To install, reverse the removal procedure.
