Headliner: Service and Repair

REMOVAL

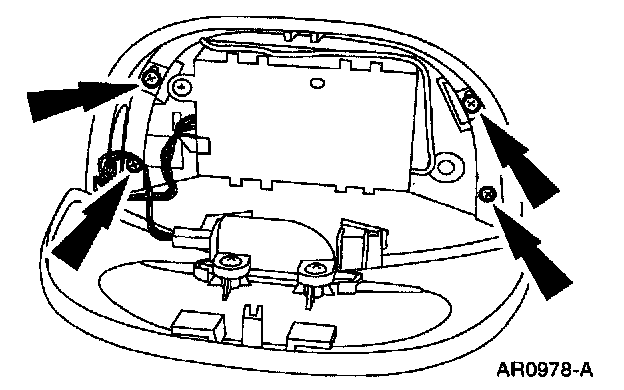

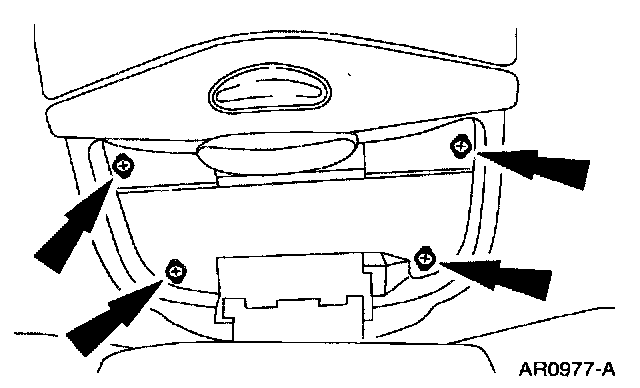

1. Remove the screws.







2. Remove the screws.

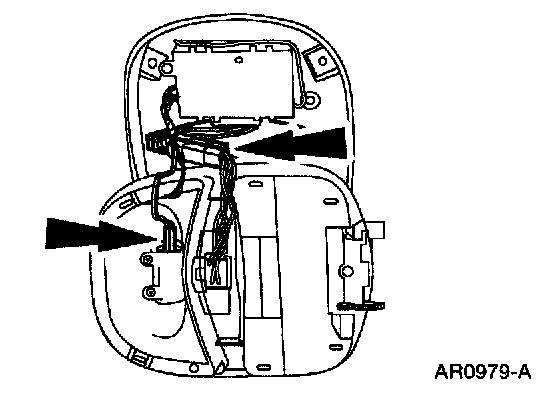

3. Disconnect the connectors and remove the overhead console.

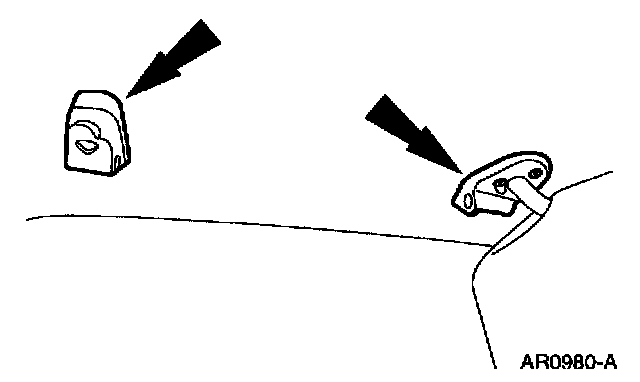

4. Remove the inside visor assemblies.

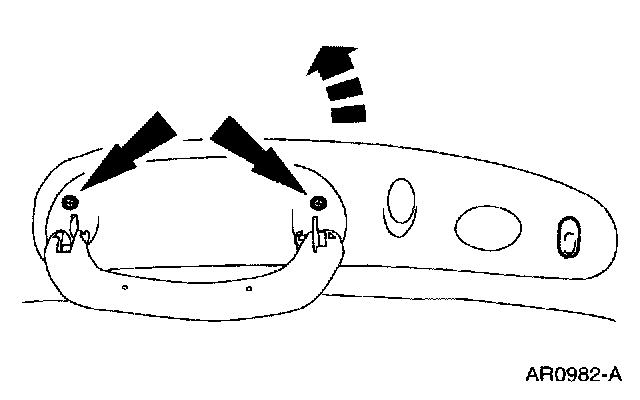

5. Remove the front assist handles.

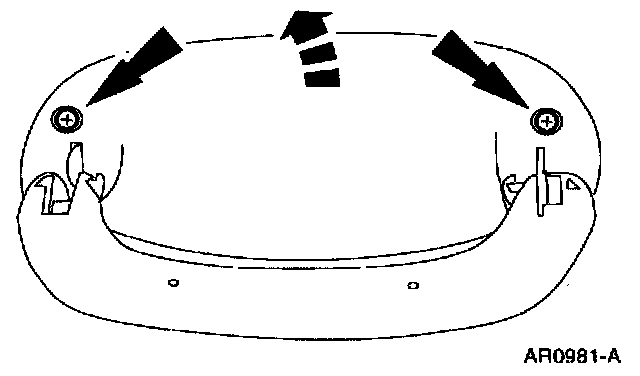

6. Remove the rear assist handles.

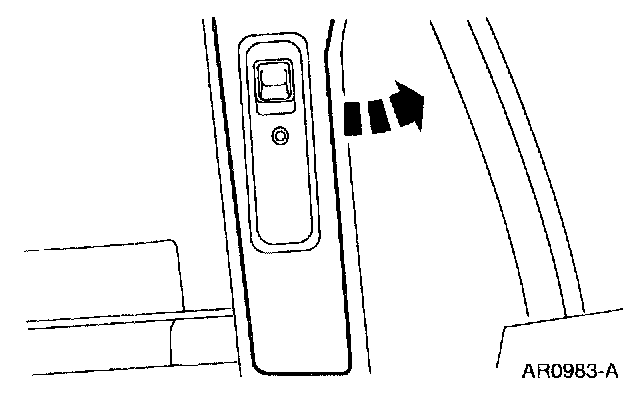

7. Remove the center body pillar inside upper finish panel.







8. Remove the windshield garnish moulding.

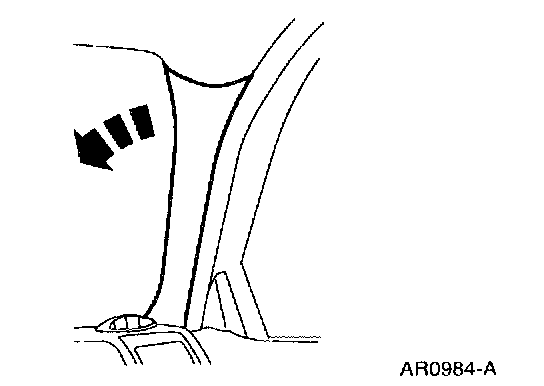

9. Remove the rear side roof trim panels.







10. Adjust the front seats full forward and recline the seat backs rearward.

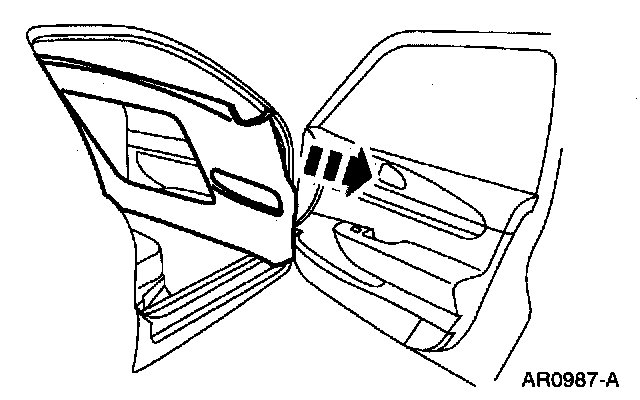

11. Remove the roof headlining through the passenger door.
12. Remove any remaining mounting bases or retaining clips.

INSTALLATION
1. Carefully position the roof headlining.

NOTE: Folding the roof headlining will require replacement with a new roof headlining.

2. Raise the roof headlining into position.







3. Install the rear side roof trim panels.







4. Install the windshield garnish moulding.







5. Install the center body pillar inside upper finish panel.







6. Install the front assist handles.







7. Install the rear assist handles.







8. Install the inside visor assemblies.







9. Connect the connectors.







10. Install the screws.







11. Install the screws.
