Overhead Console

REMOVAL
1. Disconnect the battery ground cable.

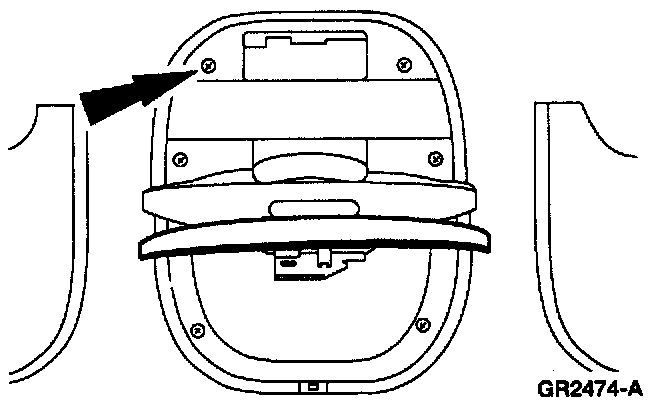

2. Open the overhead console storage compartment.

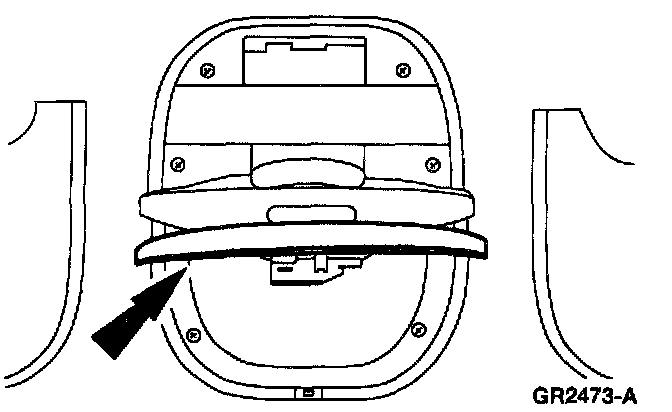

3. Open the overhead console front access panel.

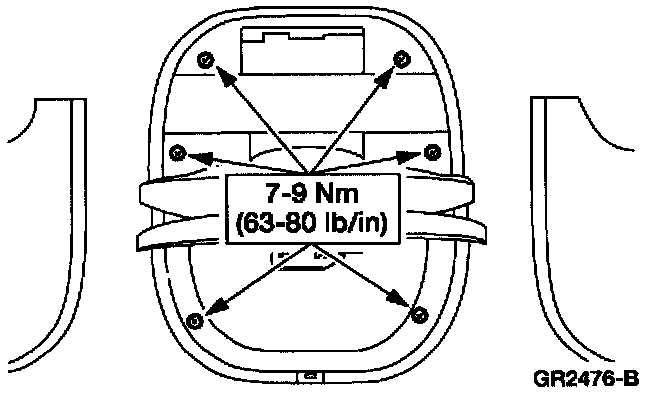

4. Remove the overhead console screws.







5. Remove the overhead console.
^ Disconnect the electrical connectors.

INSTALLATION







1. To install, reverse the removal procedure.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.
