Mini Console

REMOVAL
1. Disconnect the battery ground cable.

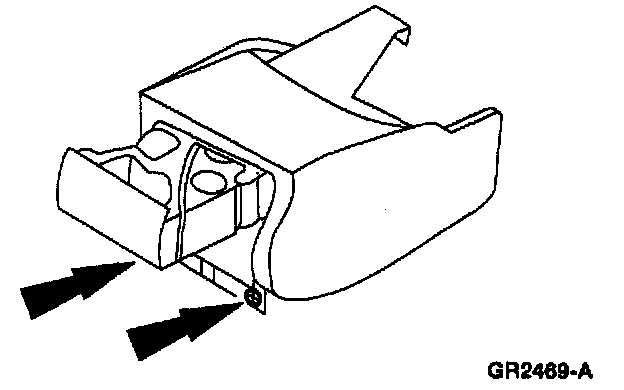

2. Remove the mini console screws.
^ Open the cup holder/ash receptacle.

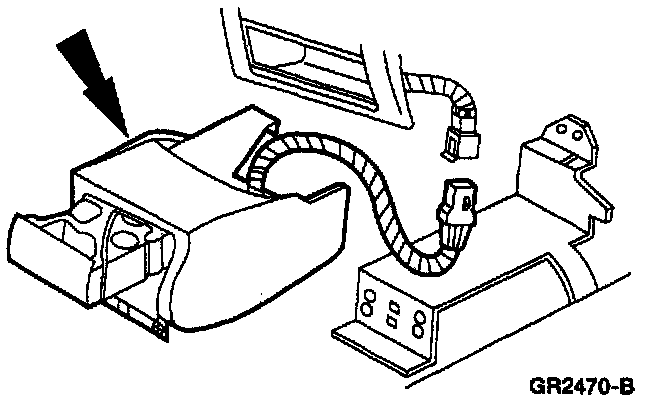

3. Remove the mini console.
^ Disconnect the electrical connector.

INSTALLATION

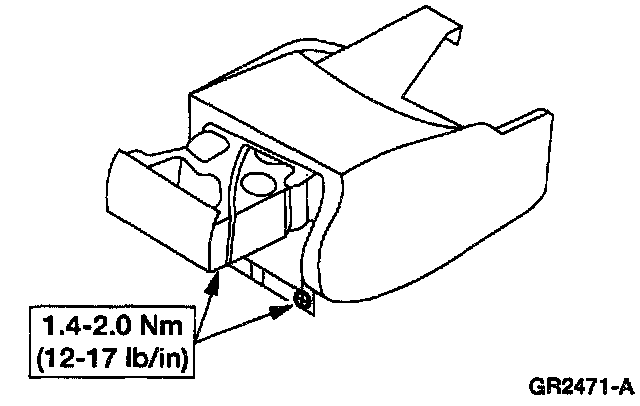

1. To install, reverse the removal procedure.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.
