Global Positioning System Switch: Service and Repair

REMOVAL

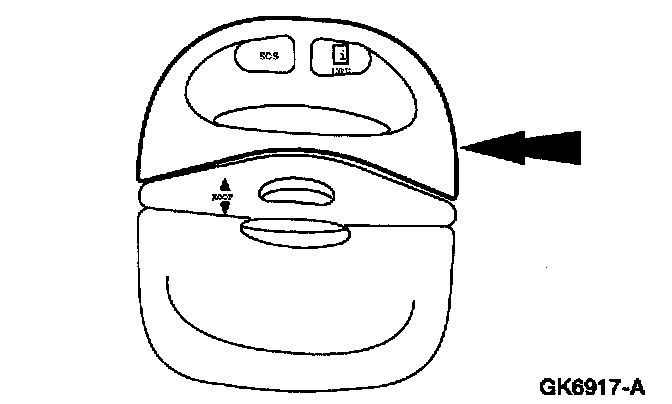

1. Pull open the console front finish panel.

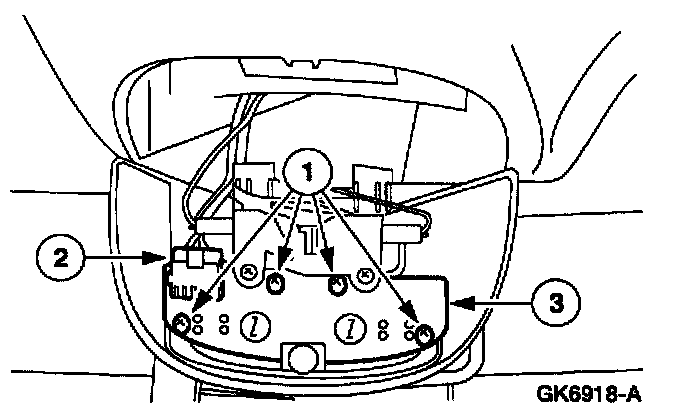

2. Remove the Remote Emergency Satellite Cellular Unit (RESCU) switch.
1 Remove the screws.
2 Disconnect the electrical connector.
3 Remove the RESCU switch.

INSTALLATION
1. To install, reverse the removal procedure.
