Town Car V8-281 4.6L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
HX - Evaporative Emission (EVAP) Monitor and System
>>
Pinpoint Test Schematics
Pinpoint Test Schematics

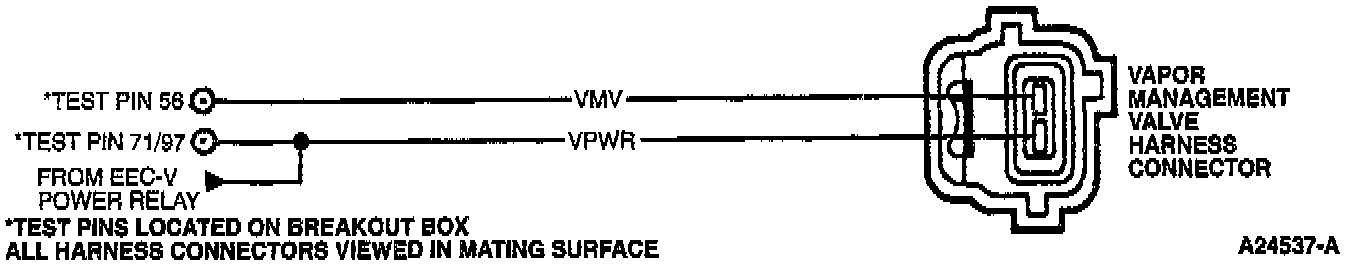

All Vehicles:

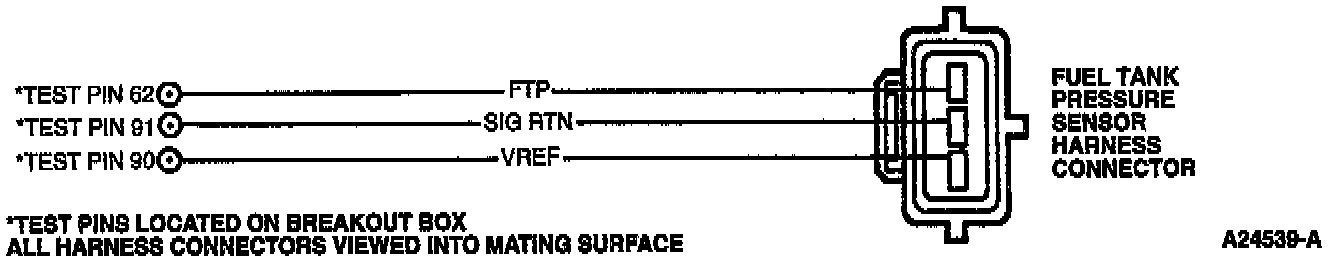

Crown Victoria/Grand Marquis, Town Car, 4.0L Explorer, 4.2L/4.6L F-Series:
All Vehicles:
