Full Body Views

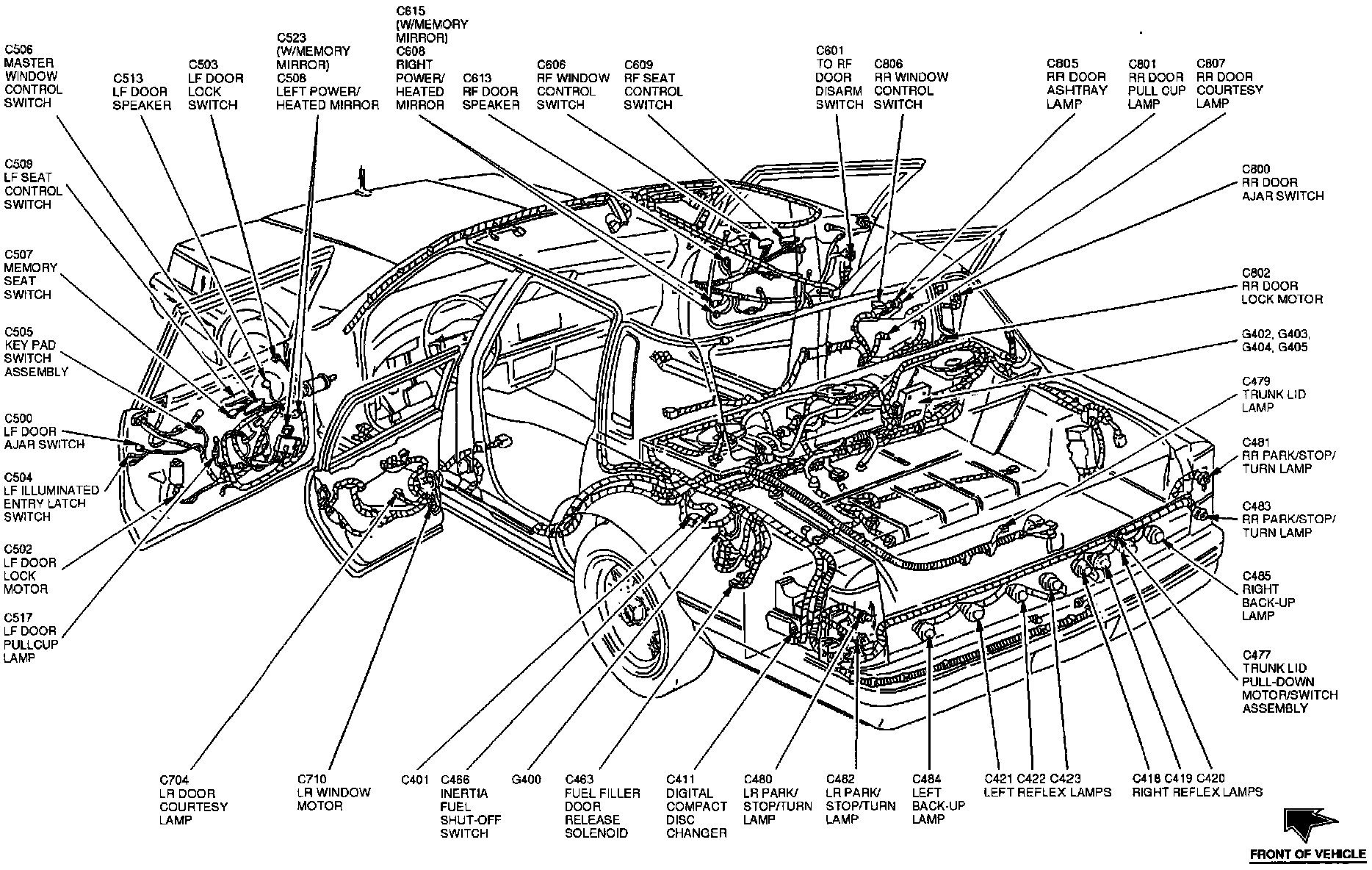

Full Body View:

DIGITAL COMPACT DISC CHANGER
FUEL FILLER DOOR RELEASE SOLENOID
INERTIA FUEL SHUT-OFF SWITCH
KEY PAD SWITCH ASSEMBLY
LEFT BACKUP LAMP
LEFT POWER/HEATED MIRROR
LEFT REFLEX LAMPS
LF DOOR AJAR SWITCH
LF DOOR LOCK MOTOR
LF DOOR LOCK SWITCH
LF DOOR PULLCUP LAMP
LF DOOR SPEAKER
LF ILLUMINATED ENTRY LATCH SWITCH
LF SEAT CONTROL SWITCH
LR DOOR COURTESY LAMP
LR PARK/STOP/TURN LAMP
LR WINDOW MOTOR
MASTER WINDOW CONTROL SWITCH
MEMORY SEAT SWITCH
RF DOOR DISARM SWITCH
RF DOOR PULLCUP LAMP
RF DOOR SPEAKER
RF SEAT CONTROL SWITCH
RF WINDOW CONTROL SWITCH
RIGHT BACKUP LAMP
RIGHT POWER/HEATED MIRROR
RIGHT REFLEX LAMPS
RR DOOR AJAR SWITCH
RR DOOR ASHTRAY LAMP
RR DOOR COURTESY LAMP
RR DOOR LOCK MOTOR
RR PARK/STOP/TURN LAMP
RR WINDOW CONTROL SWITCH
TRUNK LID PULL DOWN MOTOR/SWITCH ASSEMBLY
TRUNK LID LAMP

Full Body View:

CELLULAR TELEPHONE TRANSCEIVER
COMPASS MODULE
ELECTRONIC DAY/NIGHT MIRROR
FRONT DOME/MAP SWITCH AND LAMP
FUEL PUMP/FUEL GAUGE SENDER
HIGH MOUNT STOP LAMPS
ISOLATOR/RADIO ANTENNA MODULE
LEFT VANITY MIRROR SWITCH AND LAMP
LF DOOR COURTESY LAMP
LF DOOR DISARM SWITCH
LF DOOR LOCK/UNLOCK SWITCH LAMP
LF DOOR MODULE
LR DOOR ASHTRAY LAMP
LR DOOR PULLCUP LAMP
LR SPEAKER
LR WINDOW CONTROL SWITCH
MOONROOF DRIVE ASSEMBLY
MOONROOF RELAY
MOONROOF SWITCH
POWER MIRROR SWITCH
REAR CHASSIS UNIT
REAR DOME/READING SWITCH AND LAMP
RIGHT VANITY MIRROR SWITCH AND LAMP
RR SPEAKER
SUBWOOFER AMPLIFIER
TRUNK LID AJAR SWITCH
TRUNK LID ANTI-THEFT SWITCH
TRUNK LID RELEASE MOTOR
VISOR MICROPHONE CONNECTOR

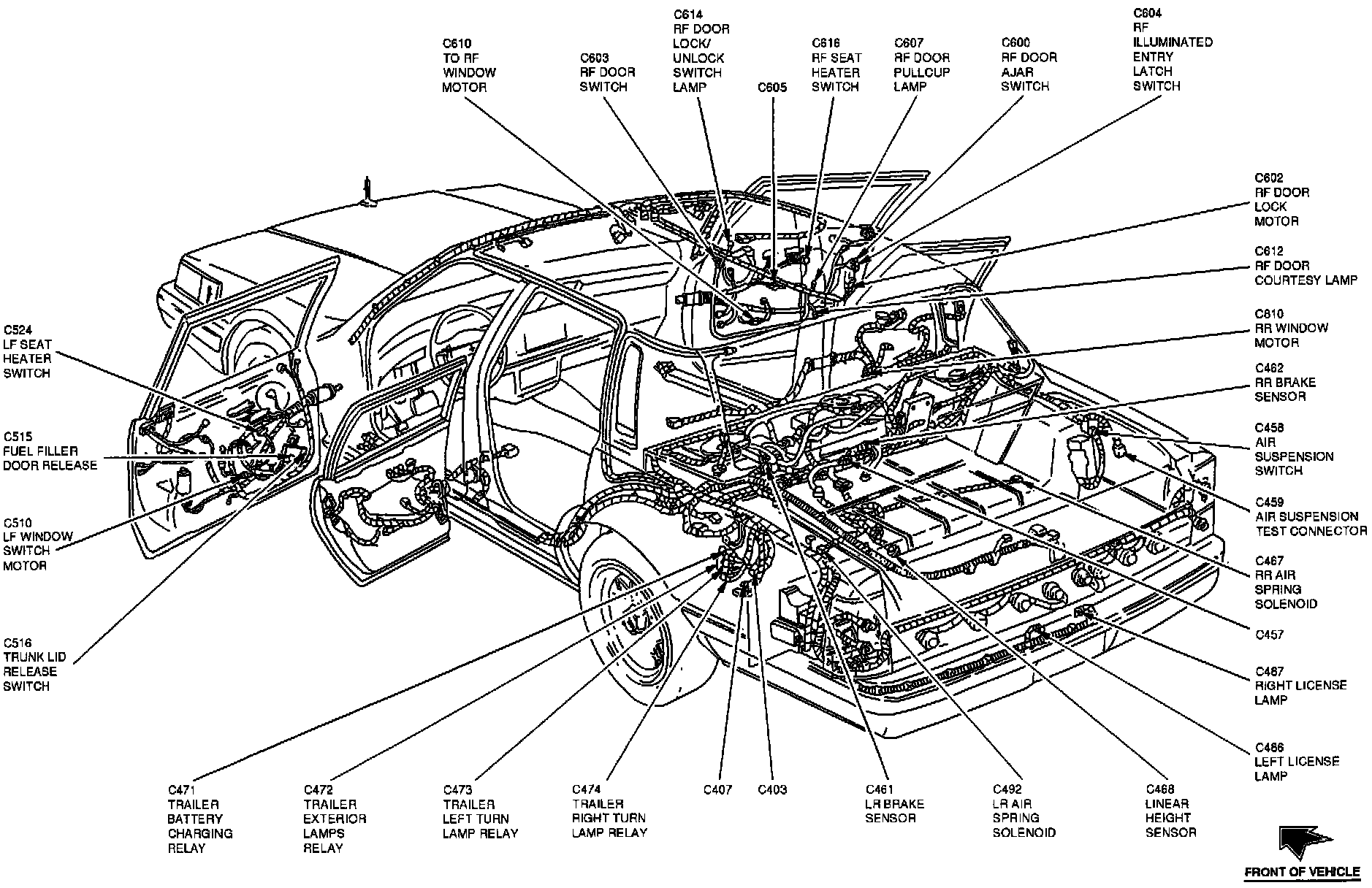

Full Body View:

AIR SUSPENSION SWITCH
AIR SUSPENSION TEST CONNECTOR
FUEL FILLER DOOR RELEASE
LEFT LICENSE LAMP
LF SEAT HEATER SWITCH
LF WINDOW SWITCH MOTOR
LINEAR HEIGHT SENSOR
LR AIR SPRING SOLENOID
LR BRAKE SENSOR
RF DOOR AJAR SWITCH
RF DOOR COURTESY LAMP
RF DOOR LOCK MOTOR
RF DOOR LOCK/UNLOCK SWITCH LAMP
RF DOOR PULLCUP LAMP
RF DOOR SWITCH
RF ILLUMINATED ENTRY LATCH SWITCH
RF SEAT HEATER SWITCH
RF WINDOW MOTOR
RIGHT LICENSE LAMP
RR AIR SPRING SOLENOID
RR BRAKE SENSOR
RR WINDOW MOTOR
TRAILER BATTERY CHARGING RELAY
TRAILER EXTERIOR LAMPS RELAY
TRAILER LEFT TURN LAMP RELAY
TRAILER RIGHT TURN LAMP RELAY
TRUNK LID RELEASE SWITCH
