Lincoln
>>
1996
>>
Town Car V8-281 4.6L SOHC
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Cigarette Lighter
>>
Testing and Inspection
>>
Pinpoint Tests
Pinpoint Tests

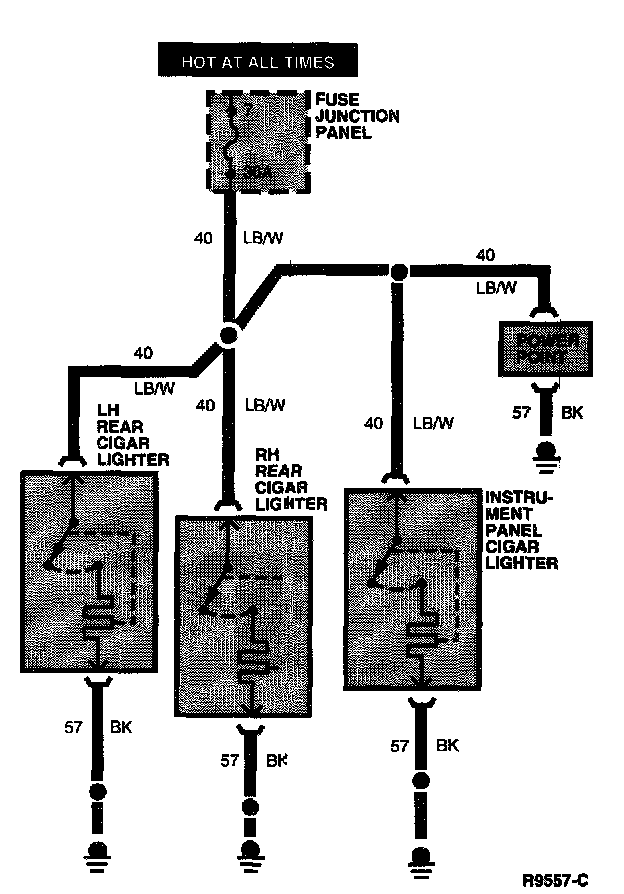

Electrical Schematic:

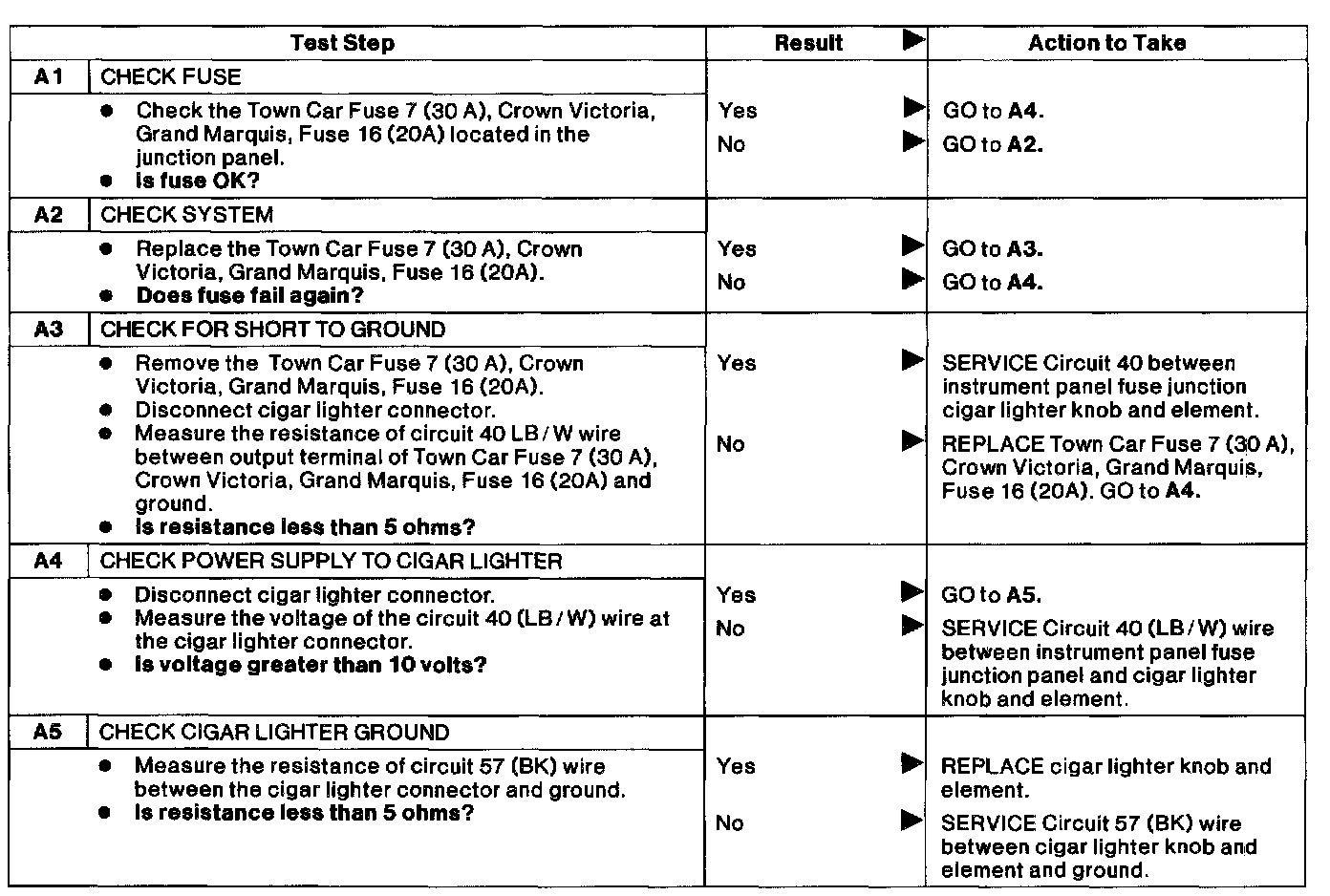

A1 - A5:
