Cigarette Lighter: Service and Repair

Removal and Installation
1. Disconnect the battery ground cable.
2. Remove cigar lighter knob and element.

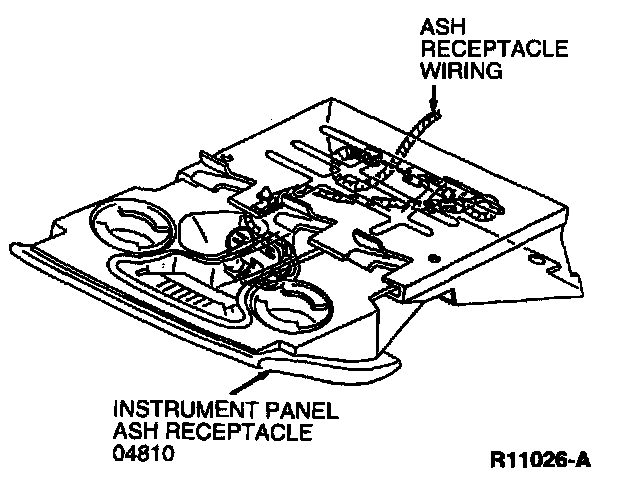

3. Unscrew the socket from the retainer and push the socket out of instrument panel ash receptacle.
4. To install, reverse Removal procedure.
