Home
>>
Lincoln
>>
1996
>>
Town Car V8-281 4.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Fuse Block
>>

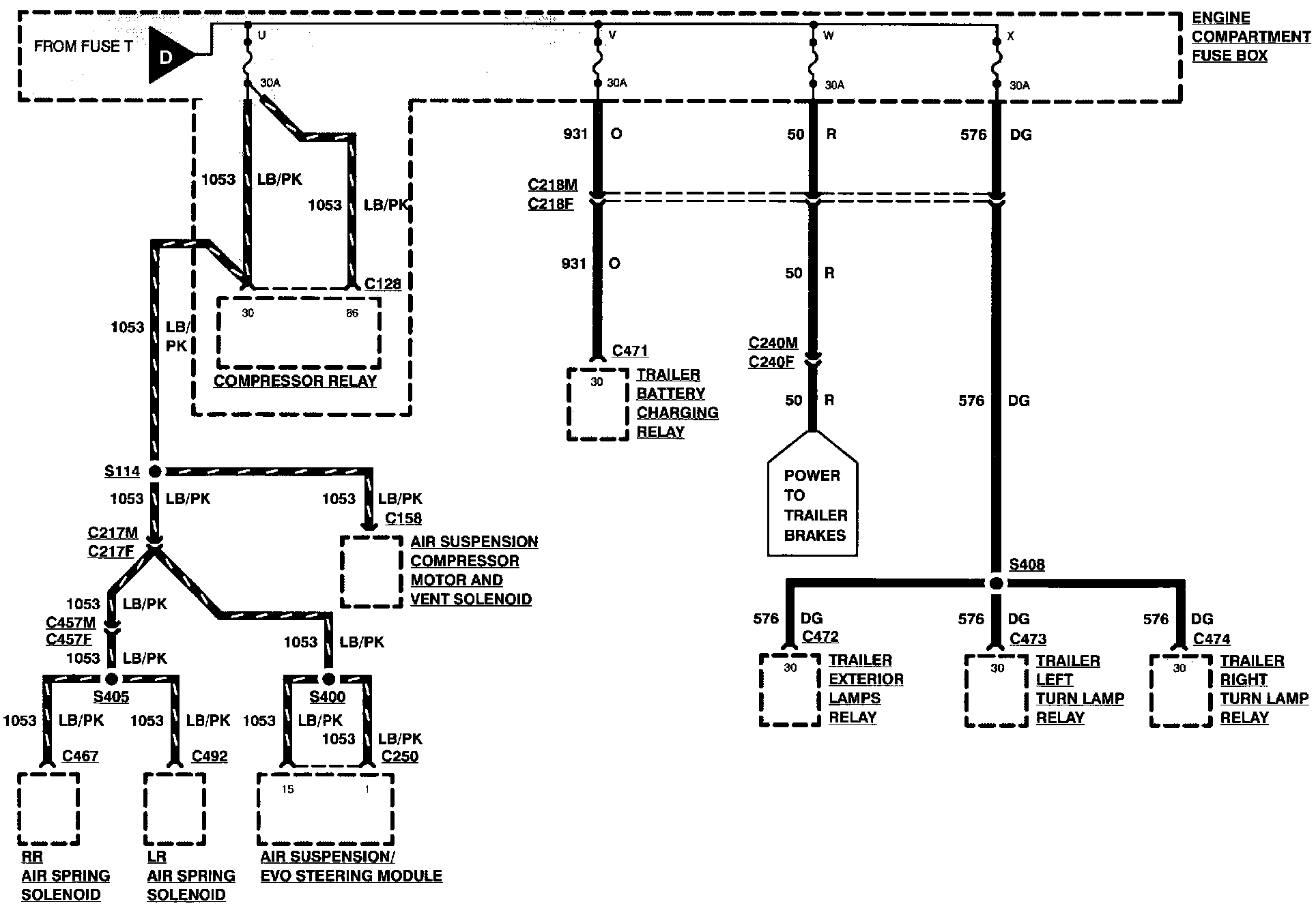

Engine Compartment Fuse Box
>>
Fuse Circuits
>>
Fuse W
Fuse W
Fuse W
- protects the following circuits:
^
Trailer Brakes
Power Distribution:
Power Distribution:
