Front Shoulder Strap Adjuster With Stripped Weld Nuts

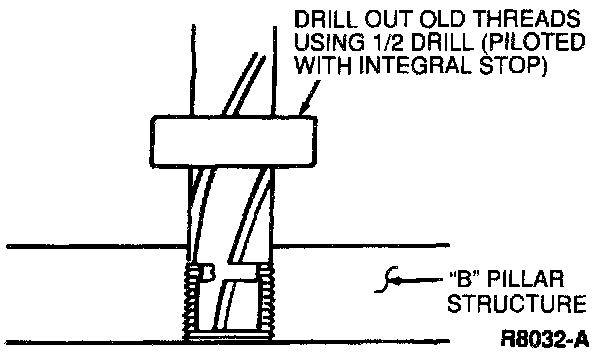

1. With the B-pillar interior trim panel removed, drill out the damaged threads in the upper B-pillar structure using the 1/2-inch drill provided in the Rotunda D Ring Installation Kit 134-00018 or equivalent.

NOTE: If the two hex-head attaching bolts on the front seat shoulder strap adjuster are not stripped, install the front seat shoulder strap adjuster to the body structure using proper service procedures. If the front seat shoulder strap adjuster attaching bolts are stripped, replace the front seat shoulder strap adjuster and install it to the body structure using proper service procedures.

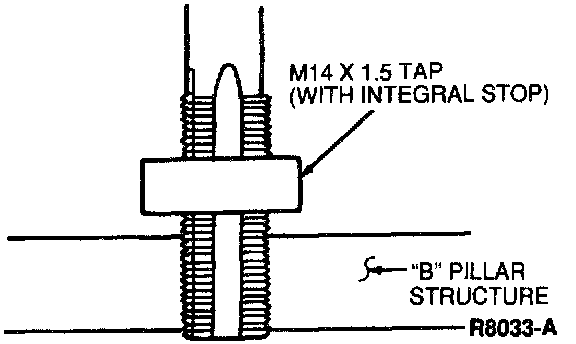

2. Apply a suitable lubricant to the threads of the M 14 x 1.5 tap provided in the Rotunda D Ring Installation Kit 134-00018 or equivalent and tap new threads.









3. Select one of the thread inserts provided in the Rotunda D Ring Installation Kit 134-00018 or equivalent and hand-screw it into the retapped hole until it is slightly below the surface of the hole.

NOTE
- After each rotation, back tap off slightly to remove new cuttings and be sure to blow out any chips before performing Step 3.
- The drive "kees" on the insert will act as an automatic stop.





4. After insertion of the thread insert, use a 12-ounce hammer to lightly tap the installation tool (provided in the kit) several times to drive down the insert "kees".
