Canister Purge Solenoid: Service and Repair

Evaporative Emission Canister Purge Valve:

REMOVAL
^ Disconnect main emission vacuum control connector from connector port on evaporative emission canister purge valve.
^ Disconnect fuel tank vent tube from the evaporative emission canister purge valve.
^ Disconnect the engine control sensor wiring from the evaporative emission canister purge valve.
^ Remove evaporative emission canister purge valve retaining nuts and evaporative emission canister purge valve from bracket located on RH side of the dash panel.

INSTALLATION

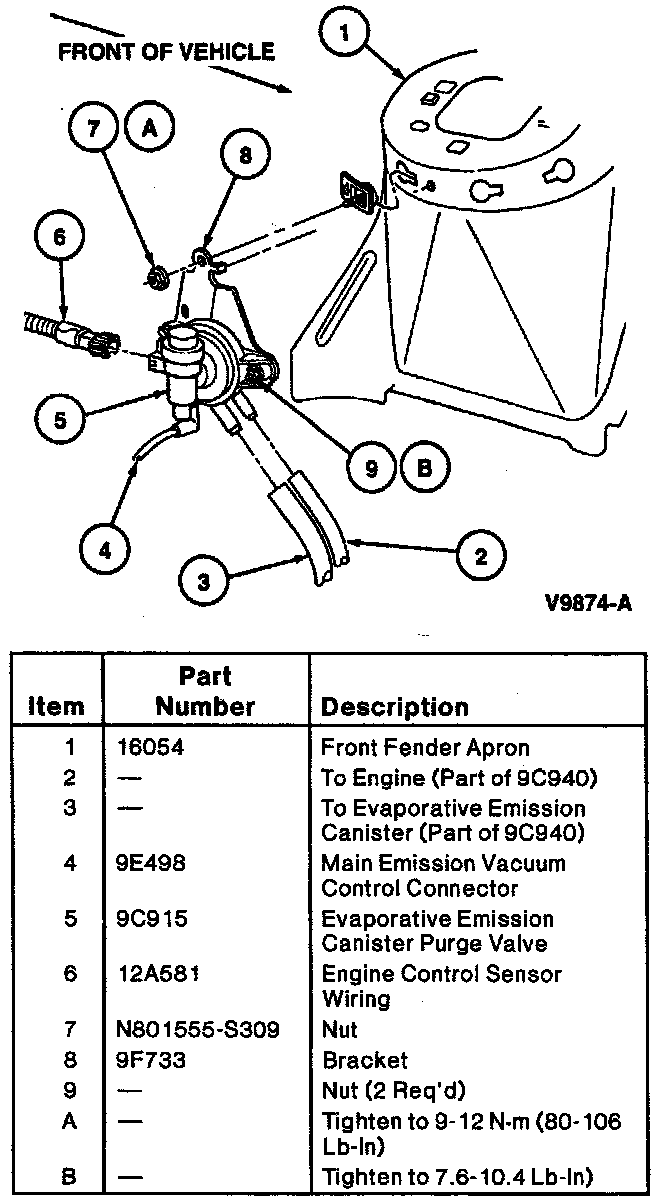

^ To install, reverse removal procedure. Tighten evaporative emission canister purge valve retaining nuts to 7.6-10.4 Nm (67-92 in lb).
^ Perform system leak check as follows:
- Disconnect and plug fuel fuel tank filler pipe shield leading to the evaporative emissions canister at the evaporative emission canister purge valve.
- Plug vent at the evaporative emissions canister.
- Using a leak tester, pressurize the fuel system through the test fuel tank filler cap.
- Verify that the pressure within the system does not decay.
- If pressure does decay, determine the cause of the leak and repair.
- Remove plugs and reconnect fuel tank filler pipe shield to the evaporative emission canister purge valve.
