B2 Check LH Front ABS Sensor Resistance

- Disconnect LH front brake anti-lock sensor plug.

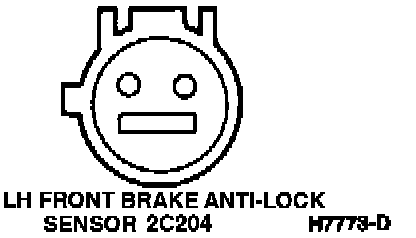

Sensor Plug Terminals:

- Measure resistance of front brake anti-lock sensor at brake anti-lock plug.

- Is resistance between 800 and 1400 ohms?

YES -- Service or replace cable harness circuit 521 or 522.

NO -- Replace LH front brake anti-lock sensor.
