Home >> Lincoln >> 1994 >> Continental V6-232 3.8L >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Switch >> Testing and Inspection

Wiper Switch: Testing and Inspection

Component Testing Procedure:

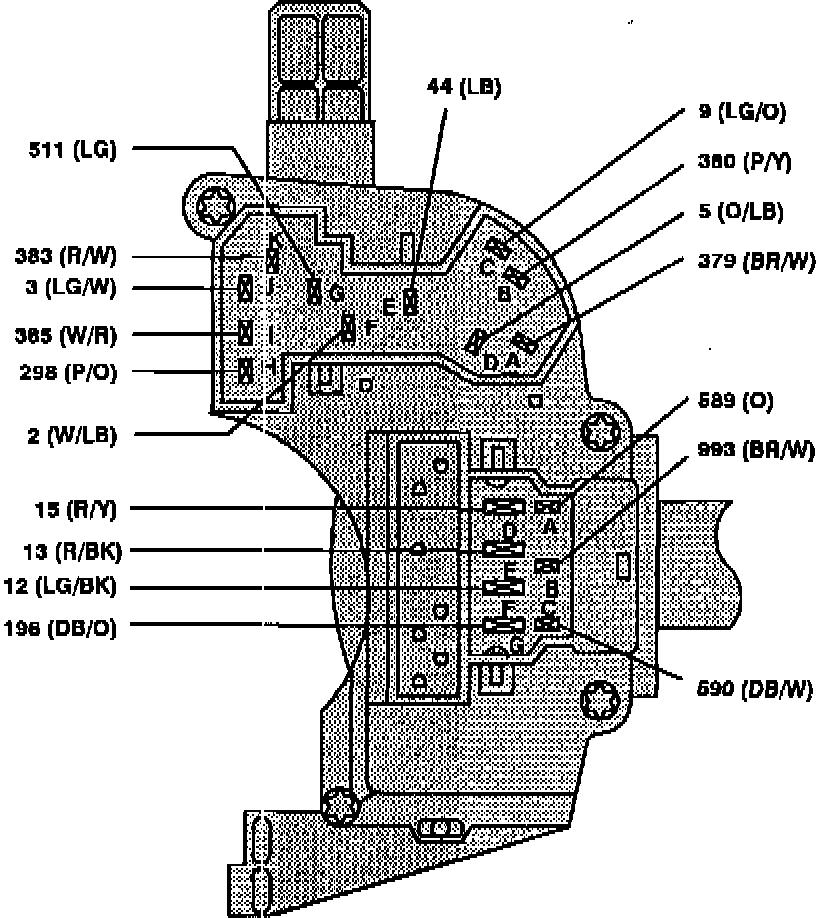

Terminal ID:

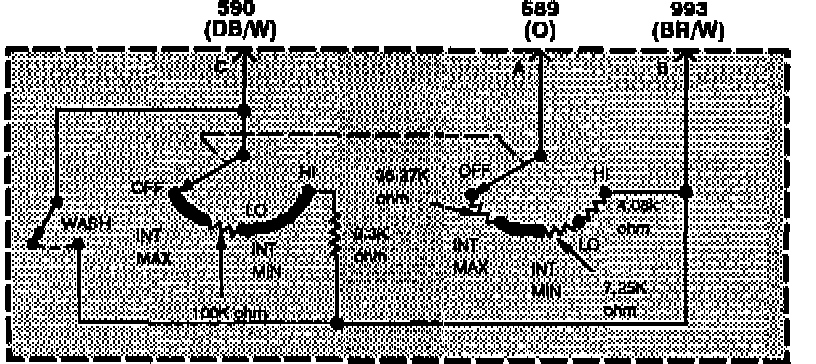

Schematic:
