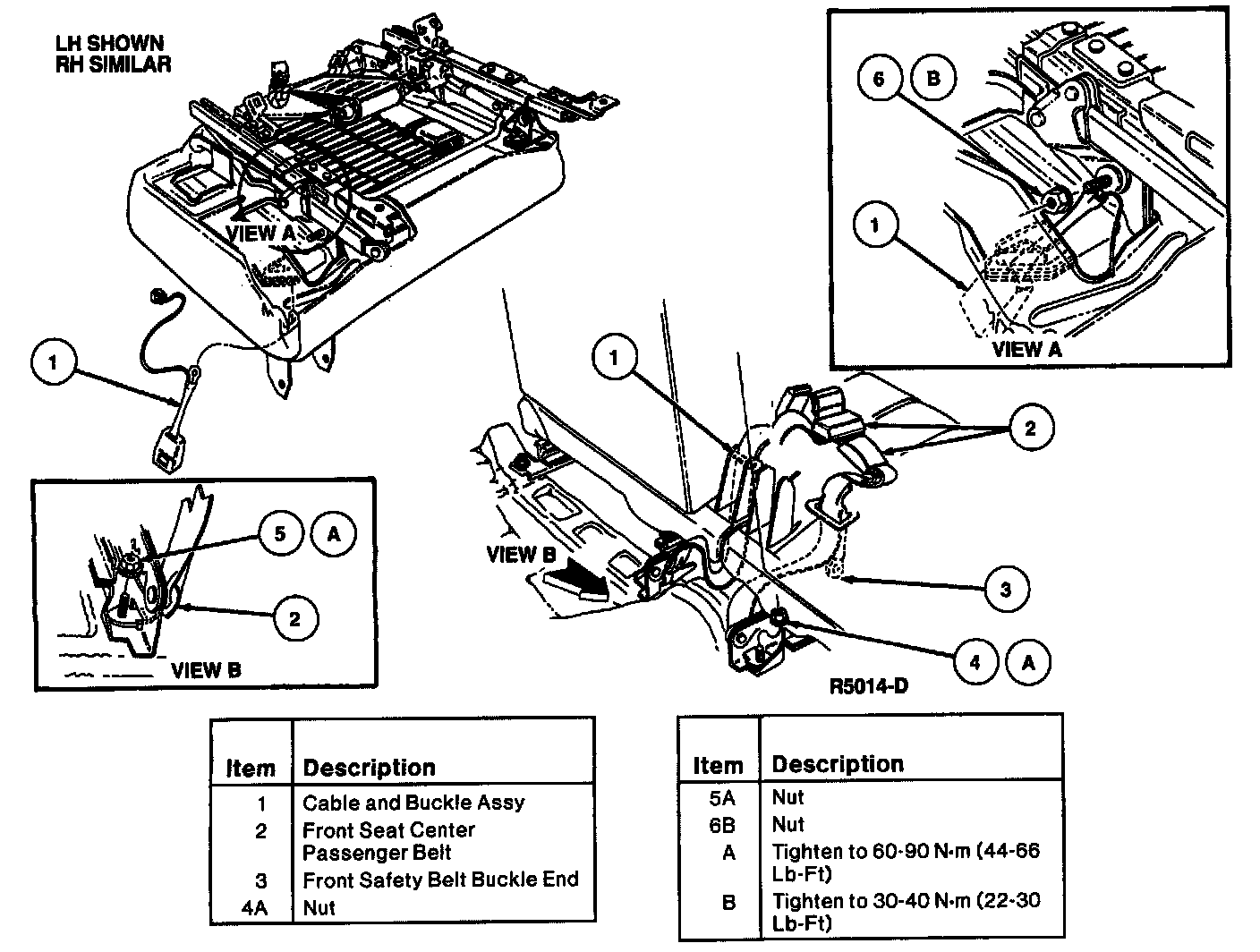

Power Split Bench Seat

REMOVAL






1. Remove nut/bolt from inboard buckle assembly. On LH side, disconnect safety belt warning chime wire and pry locator off seat.
2. Pull buckle upward to remove from seat.

INSTALLATION
1. To install, reverse Removal procedure. Be sure to position belts properly.
2. Tighten all retaining bolts to 30-40 Nm (22-30 ft lbs).
3. Cycle system several times to ensure proper operation of front safety belt retractor and tongue. Make sure the belt is not twisted.
