Home
>>
Lincoln
>>
1994
>>
Continental V6-232 3.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

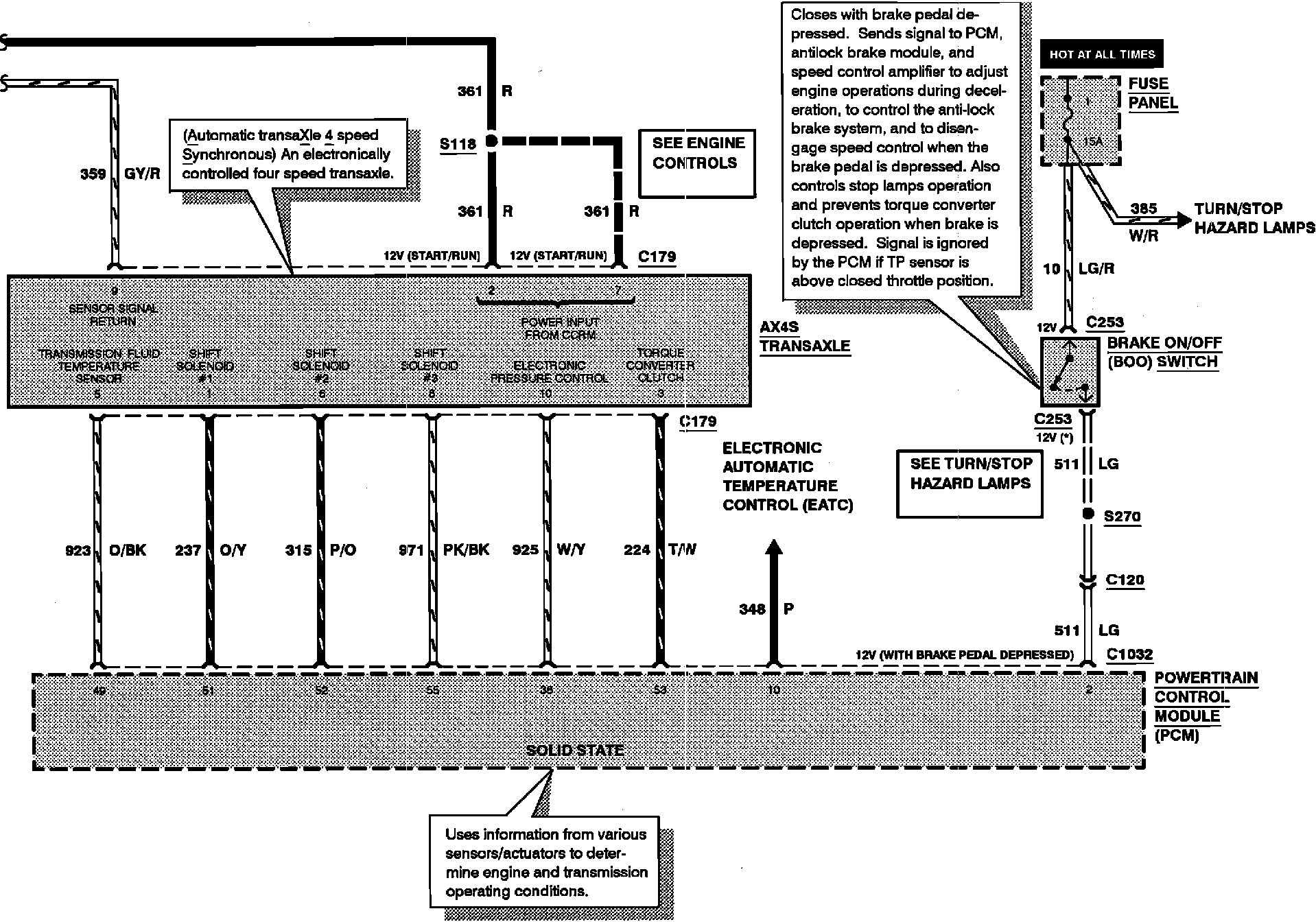

Transaxle:

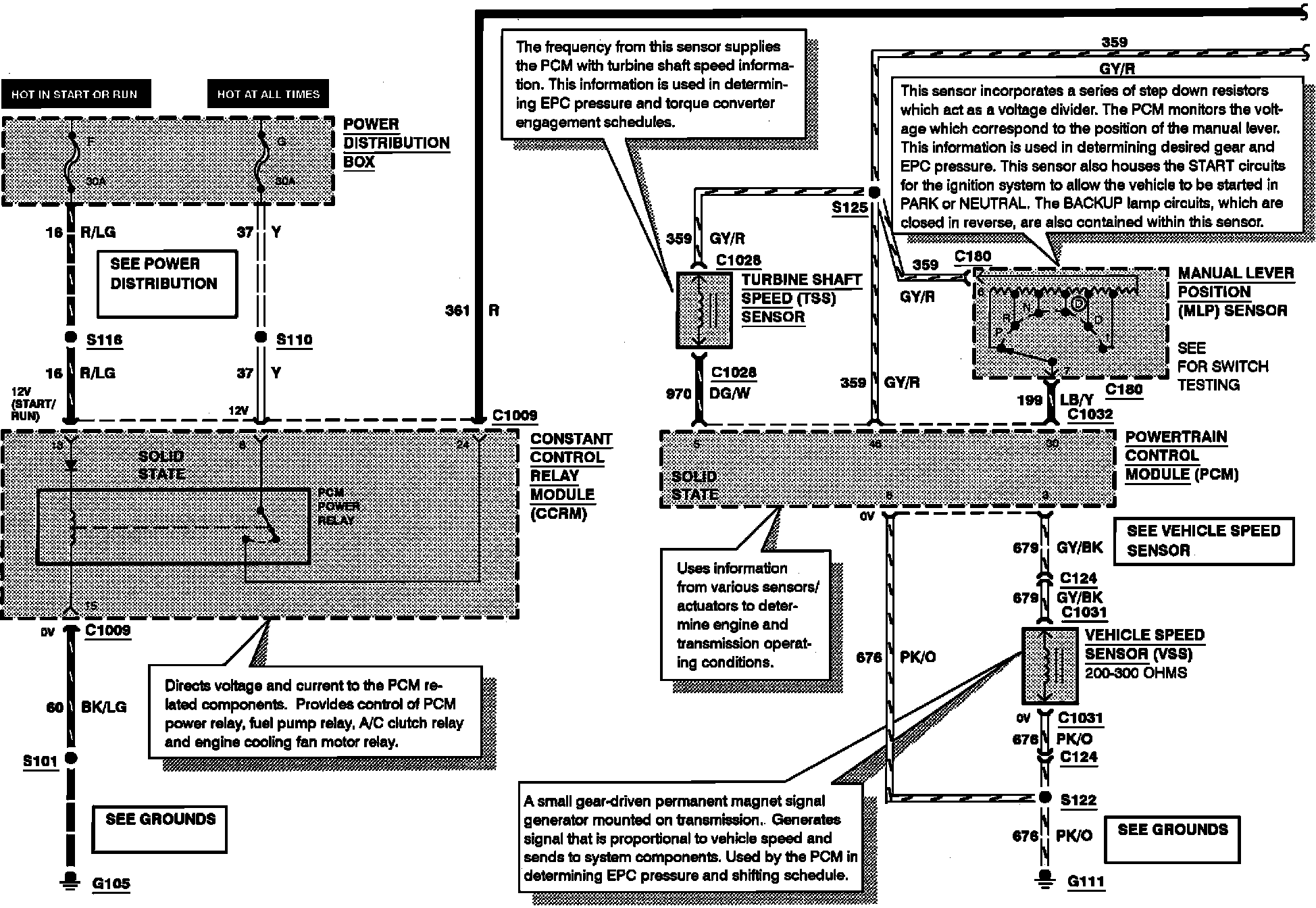

Transaxle:
