Home
>>
Lincoln
>>
1994
>>
Continental V6-232 3.8L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Headlamp Switch
>>
Testing and Inspection
>>
Autolamp Switch
Autolamp Switch

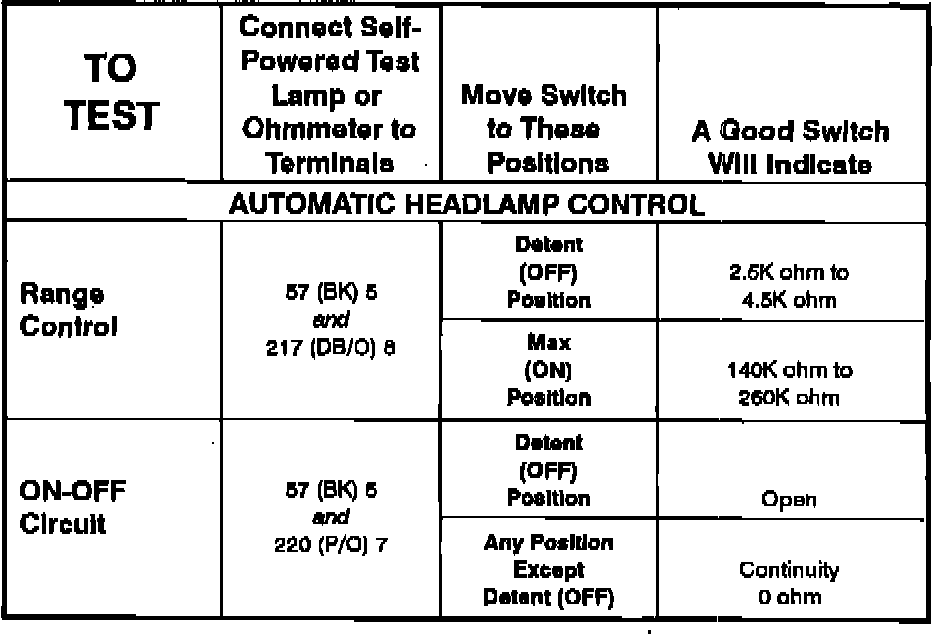

Component Testing Procedure:

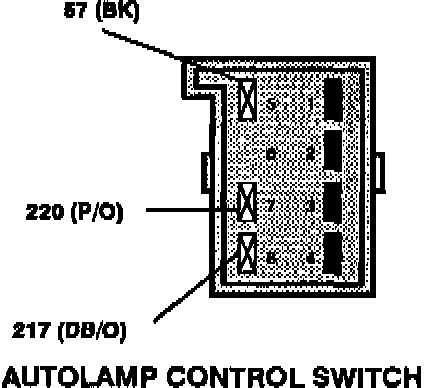

Terminal ID:
Schematic:
