Home
>>
Lincoln
>>
1994
>>
Continental V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Keyless Entry
>>
System Diagram
>>

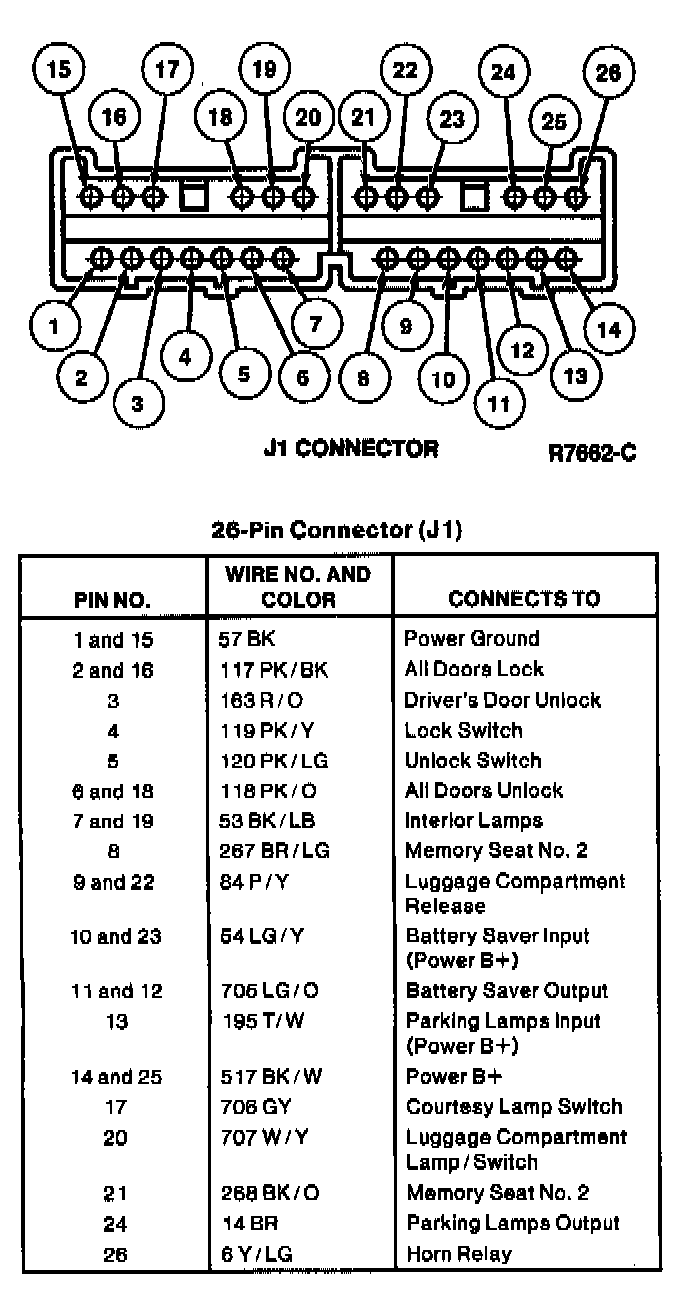

J1 Connector
J1 Connector
J1 Connector:
