System Diagram
System Diagram

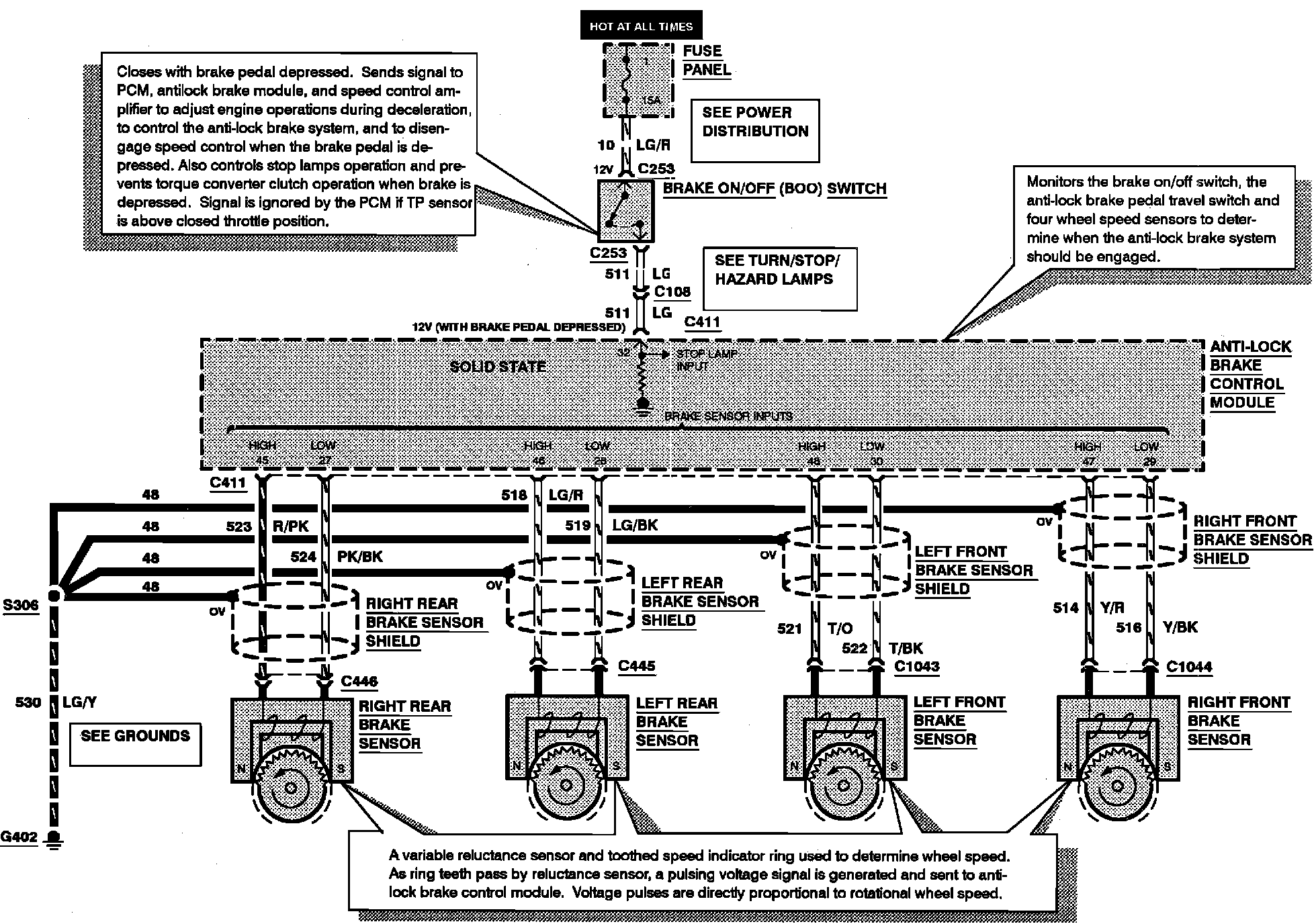

Anti-lock Brake System (ABS):

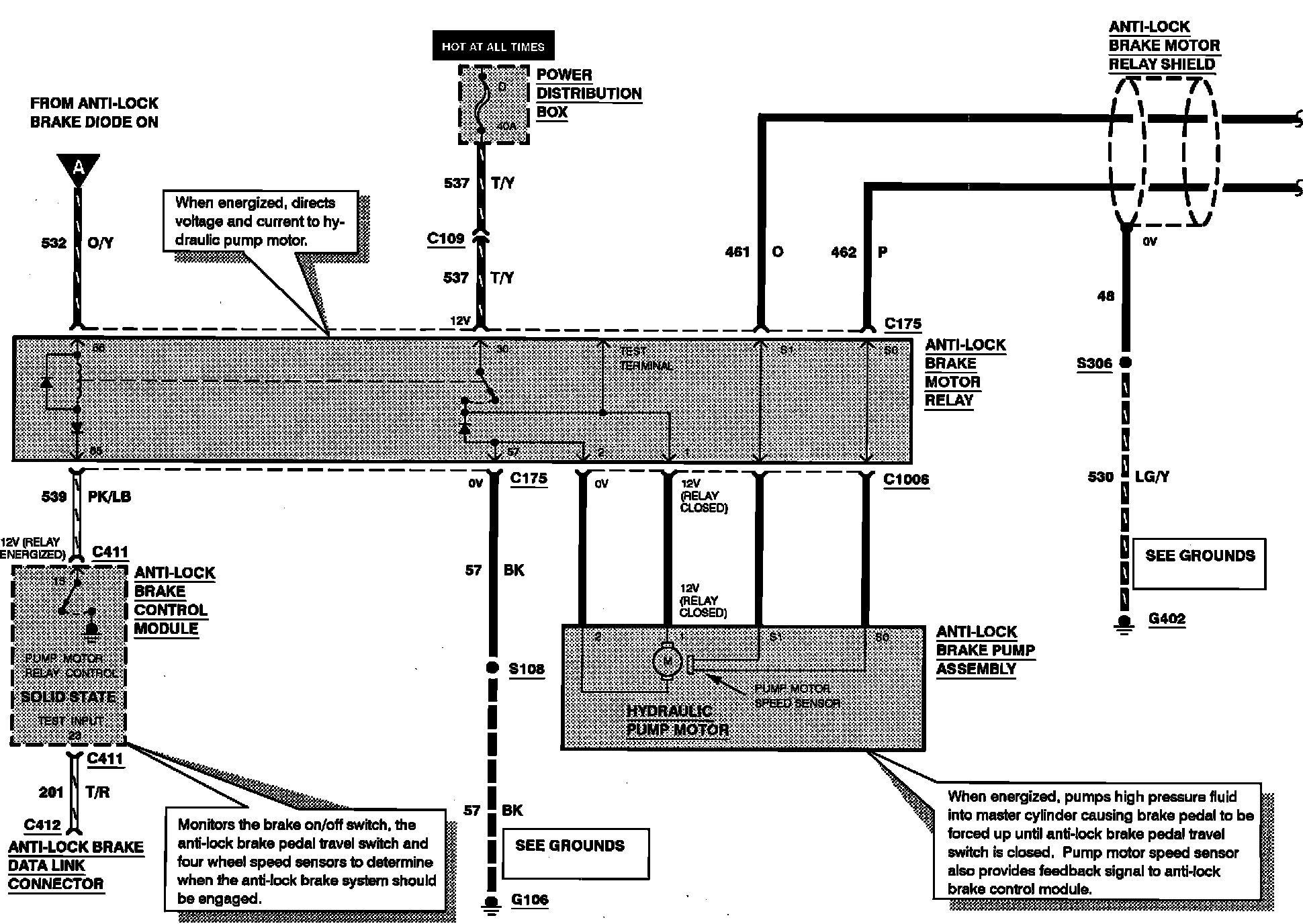

Anti-lock Brake System (ABS):

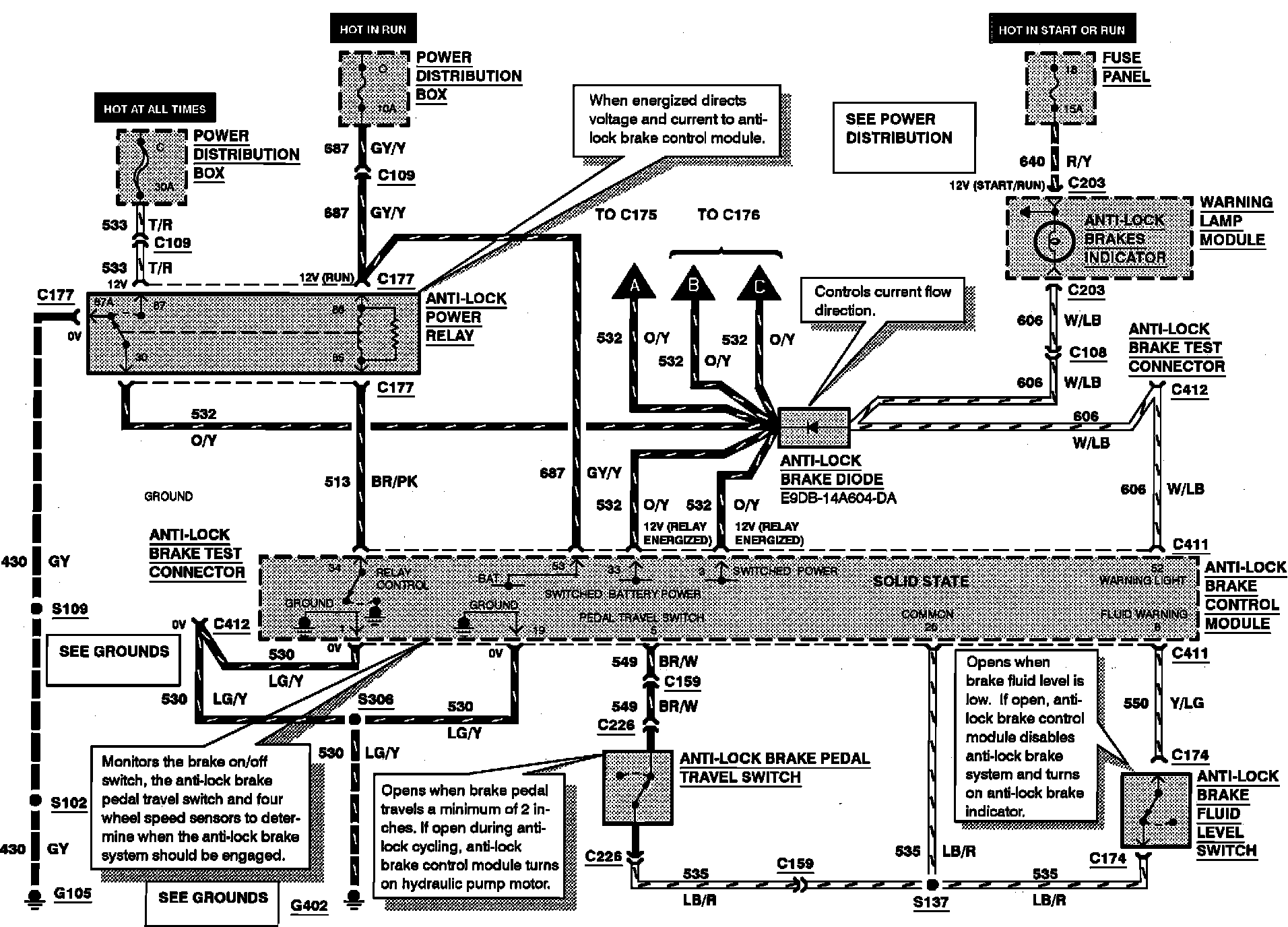

Anti-lock Brake System (ABS):
Anti-lock Brake System (ABS):
