Ash Receptacle and Retainer

REMOVAL
1. Disconnect battery ground cable.
2. Pull out drawer to open position.
3. Remove cigar lighter.

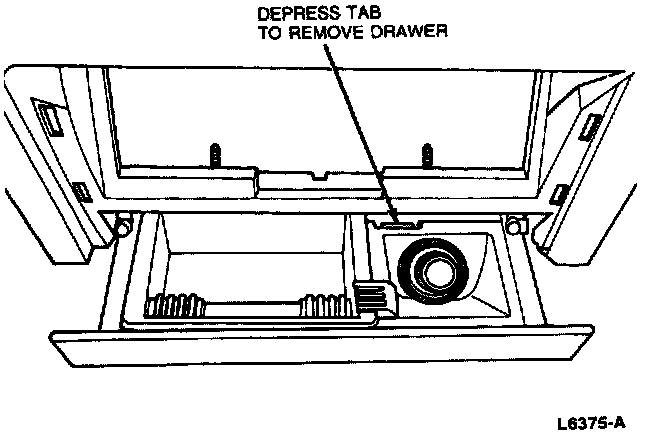

4. Press tab in center and remove ash receptacle drawer. Disconnect wiring and unsnap halo assembly from socket retainer.






5. Remove four screws attaching drawer retainer to instrument panel, remove upper lamp assembly and remove drawer retainer.

INSTALLATION
1. Install upper lamp assembly.
2. Install drawer retainer and four screws to instrument panel.
3. Install halo assembly on socket retainer.
4. Slide ash receptacle drawer into retainer, position and connect wiring.
5. Install cigar lighter.
6. Connect battery ground cable.
