Home >> Lincoln >> 1994 >> Continental V6-232 3.8L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Compact Disc Player (CD) >> Diagrams

Compact Disc Player (CD): Diagrams

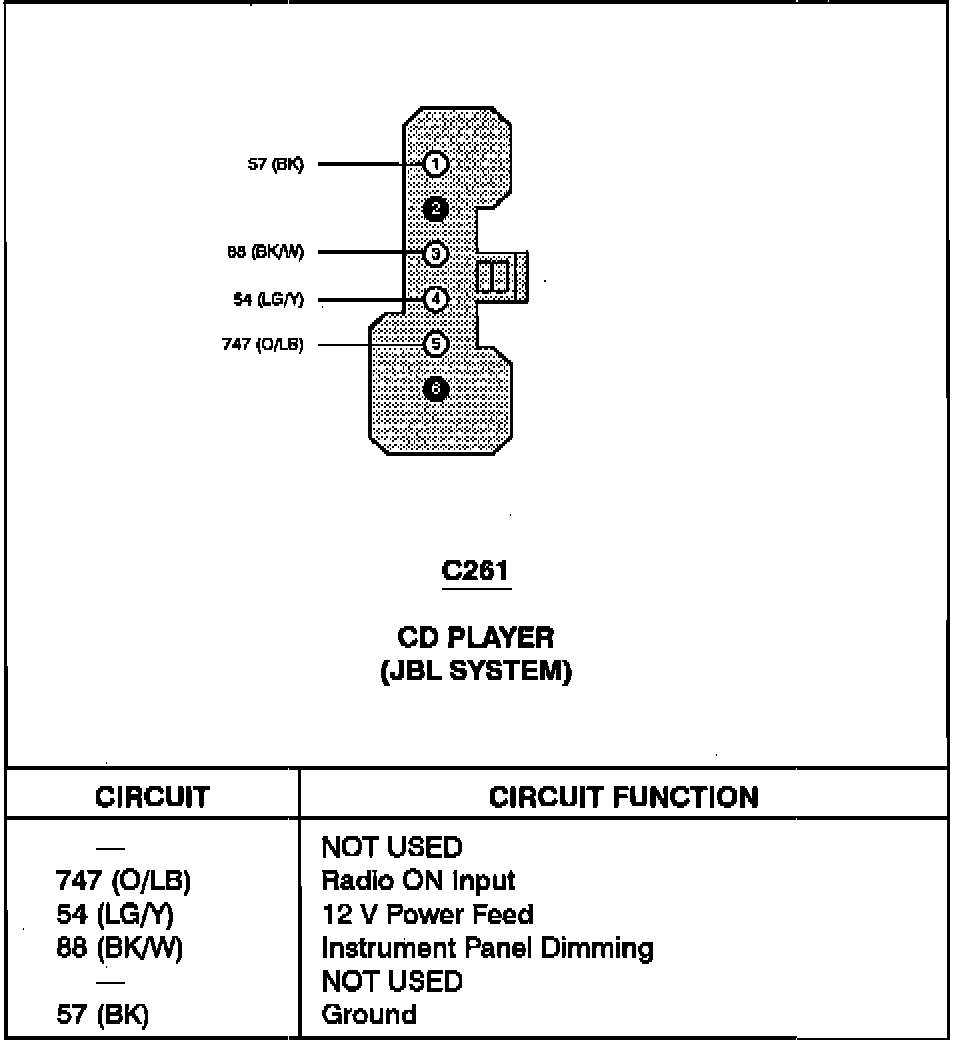

CD Player (JBL System):

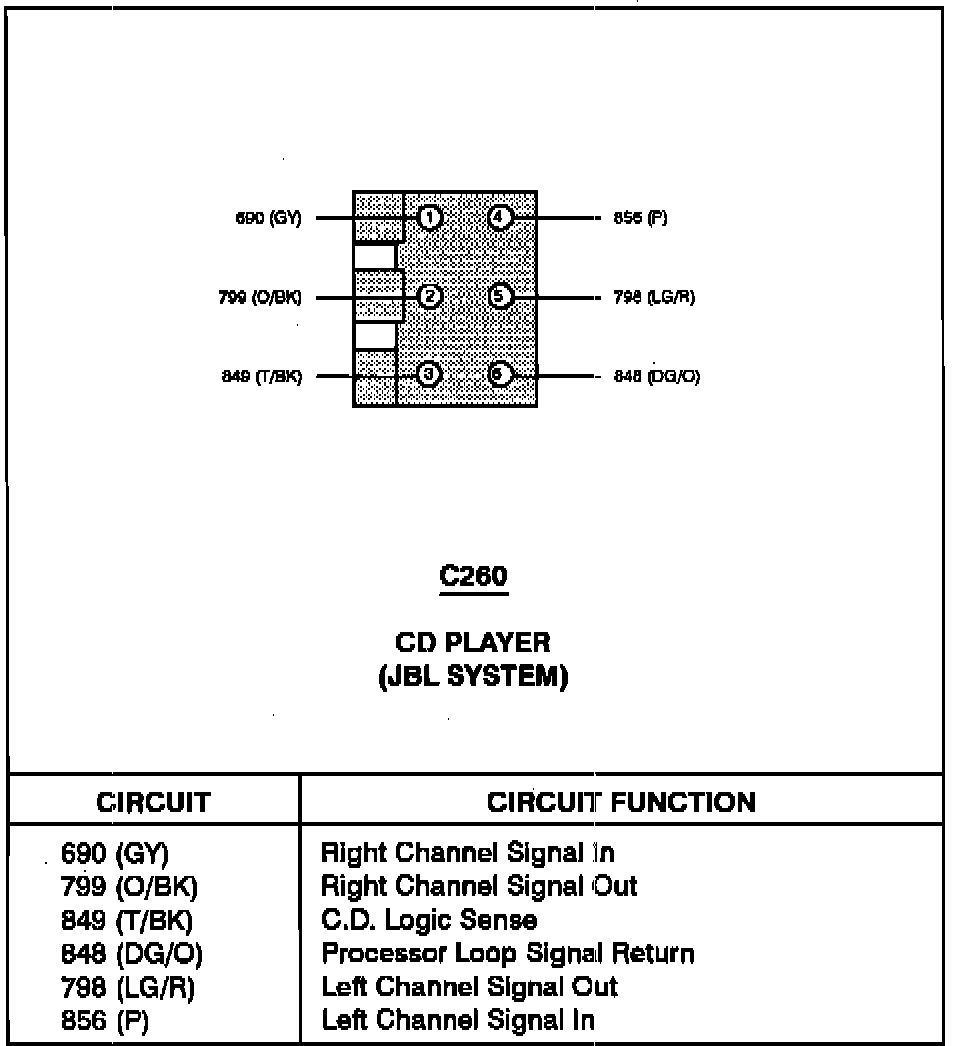

CD Player (JBL System):
