Windshield Molding - Cracking Noise In Cold Weather

Article No.
93-3-1

February 3, 1993

^ EXTERIOR TRIM - WINDSHIELD MOULDING - "CRACKING" OR "SQUEAKING" NOISE DURING COLD WEATHER - VEHICLES BUILT AFTER 6/24/91

^ GLASS - MODULAR WINDSHIELD - "CRACKING" OR "SQUEAKING" NOISE DURING COLD WEATHER - VEHICLES BUILT AFTER 6/24/91

^ NOISE - "CRACKING" OR "SQUEAKING" NOISE DURING COLD WEATHER - VEHICLES BUILT AFTER 6/24/91



LINCOLN-MERCURY: 1992-93 CONTINENTAL


This TSB article is being republished in its entirety to include 1993 Continentals.

ISSUE:
A "cracking" or "squeaking" noise along the "A" pillars and across the windshield header may be heard during cold weather operation at 35~ F (2~C) and below. This occurs because the leading edge of the front door rubs against the windshield moulding finisher lip moulding and the finisher lip moulding rubs against the windshield header.

ACTION:

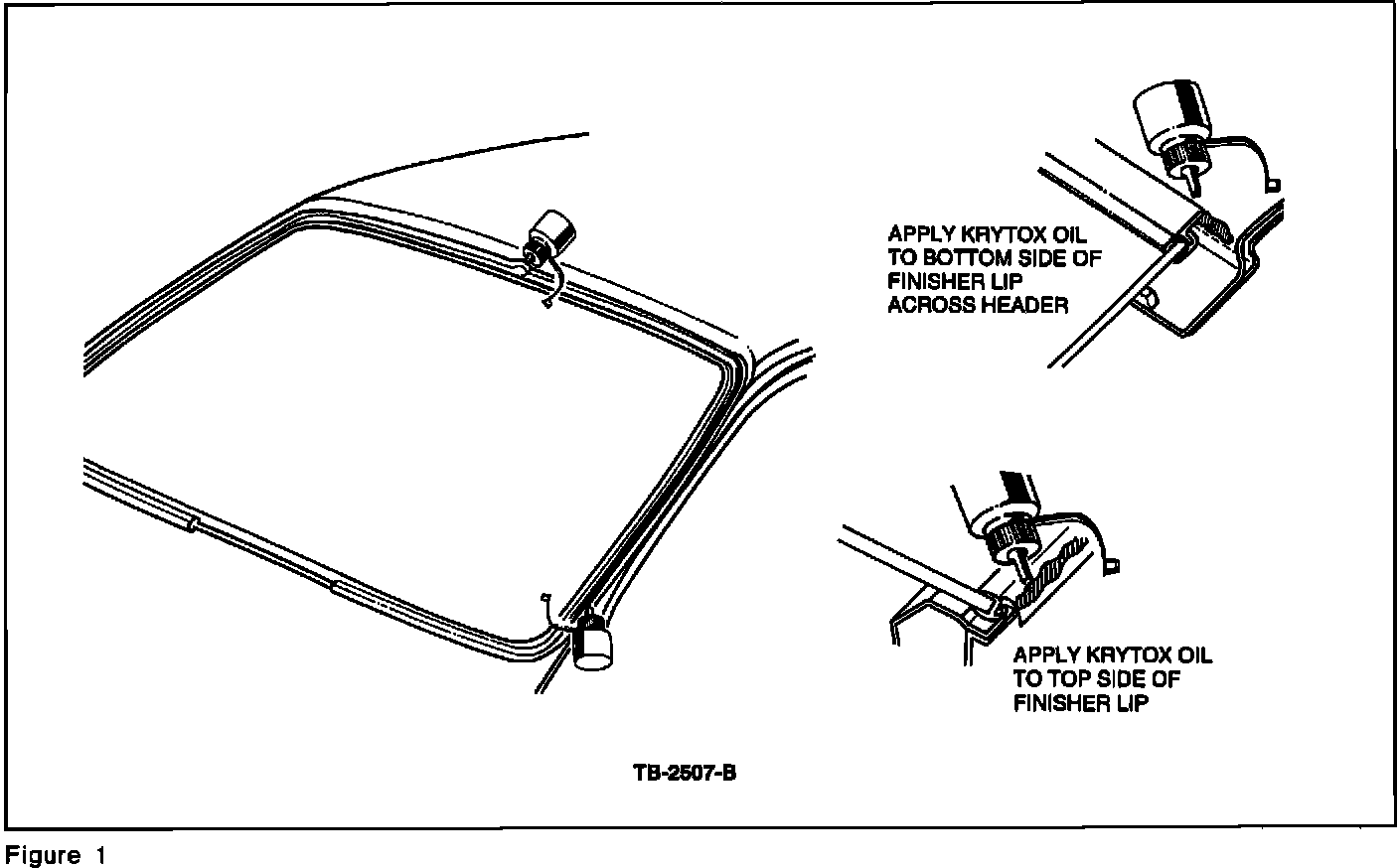

Apply "Krytox Oil" lubricant to the top surface of the windshield moulding finisher lip along the "A" pillars. Also apply "Krytox Oil" to the bottom surface of the finisher lip across the windshield. Refer to Figure 1.


NOTE:
THOROUGHLY CLEAN SILICONE LUBRICANTS FROM ALL SURFACES OF THE FINISHER LIP AND THE LEADING EDGE OF THE FRONT DOOR WITH NAPHTHA.



To obtain "Krytox GPL 105 Fluorinated Oil" - (1) 1/2 oz. bottle per vehicle - contact the following source.

Miller-Stephenson Chemical Co.
Danbury, Connecticut 06810
Telephone: (203) 743-4447 or 1-800-992-2424
(8:00 a.m. - 4:00 p.m. EST)
CONTACT: Mr. Mourad Fahmi

OTHER APPLICABLE ARTICLES: NONE

SUPERSEDES: 92-7-4

WARRANTY STATUS:
Eligible Under Bumper To Bumper Warranty Coverage

OPERATION DESCRIPTION TIME
930301A Apply Krytox Oil Lubricant 0.3 Hr.
To Windshield Moulding

DEALER CODING
BASIC PART NO. CONDITION CODE
7003144 03

OASIS CODES: 102000, 701000, 702000
