Shift Linkage: Adjustments

MANUAL SHIFT LINKAGE ADJUST
1. Place shift lever in Overdrive position, then hang a 3 lb weight on shift lever ensuring lever is firmly in Overdrive detent.

Manual Control Linkage Adjustment:

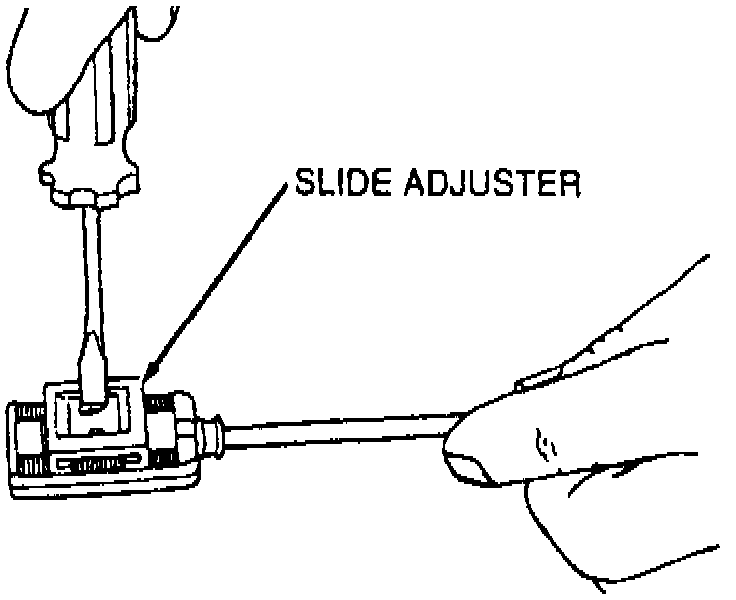

2. Use suitable screwdriver in slide adjuster slot to open adjuster.
3. Move transaxle manual shift lever to Overdrive position, second detent from most rearward position.
4. Push slide adjuster closed.
