Diagrams For Use With Test Harness

DI Diagnostic Cable:

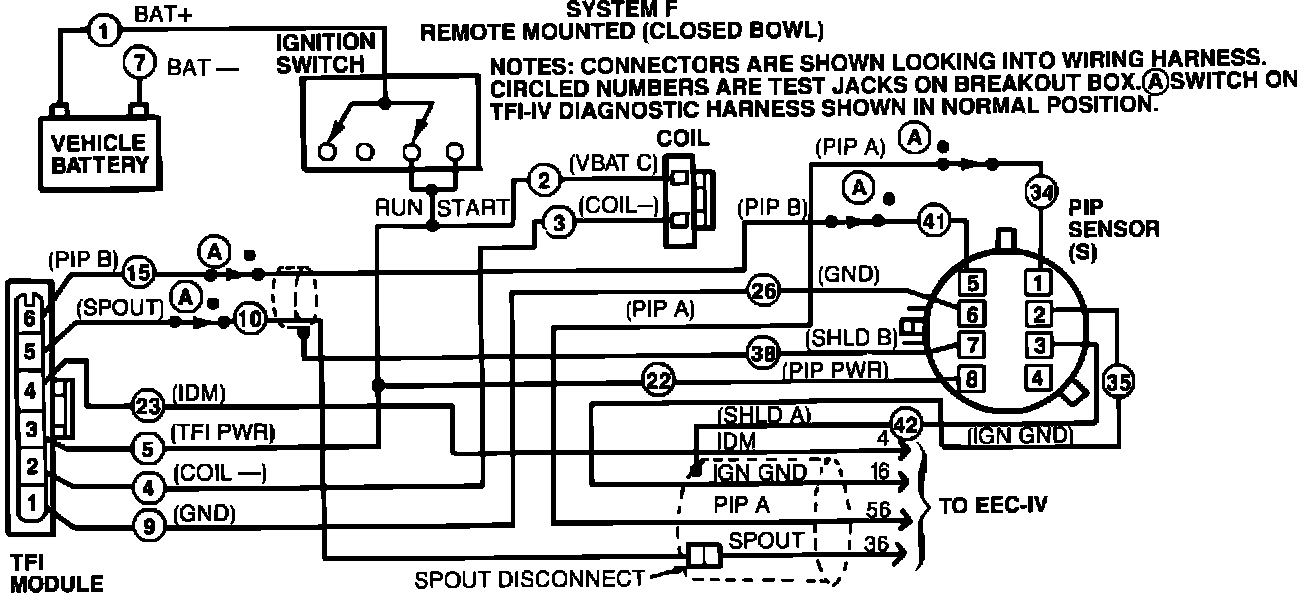

TFI-IV System F With Diagnostic Harness Installed:
