Home >> Lincoln >> 1992 >> Continental V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls

Engine Controls

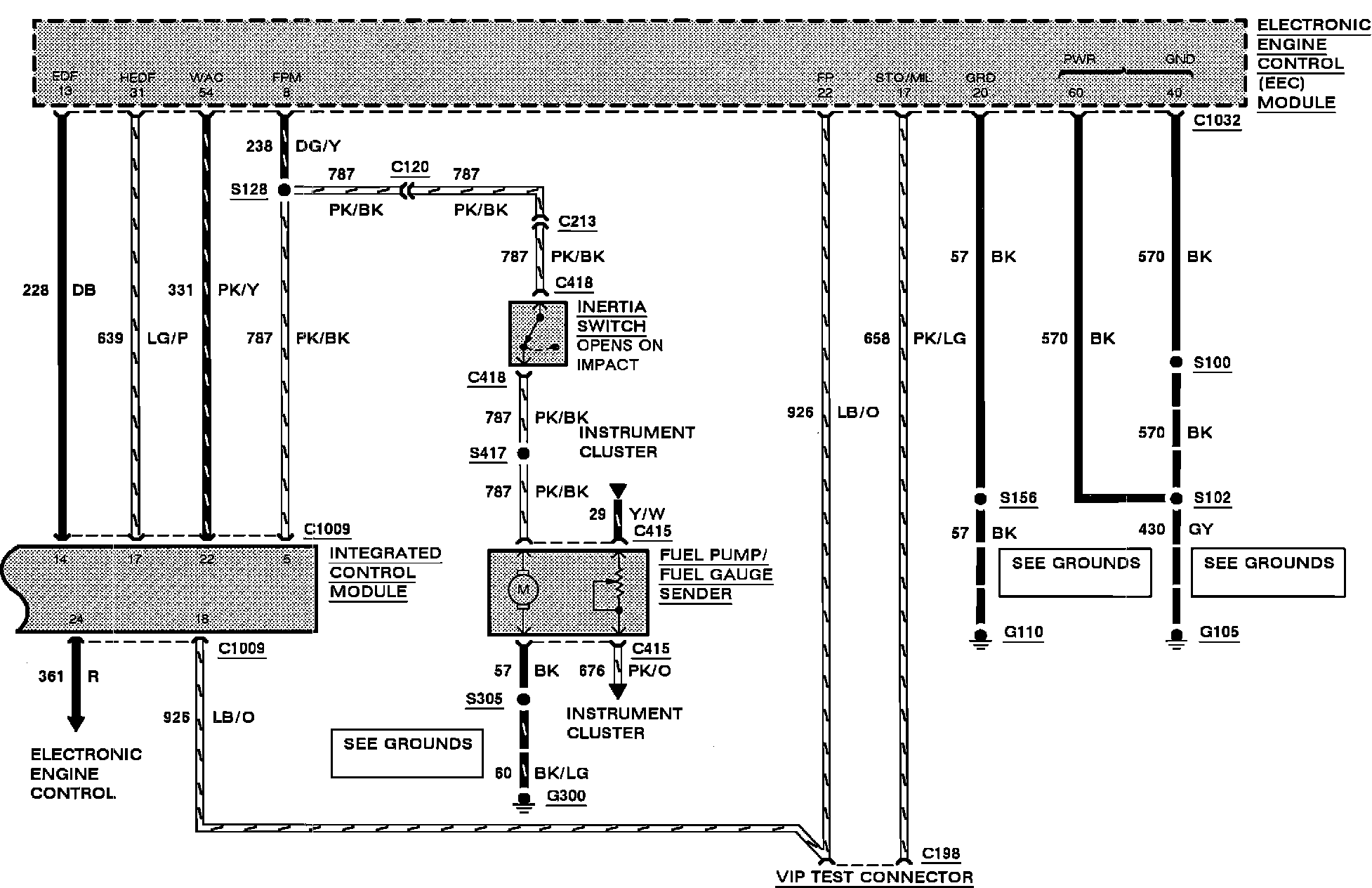

Electronic Engine Control:

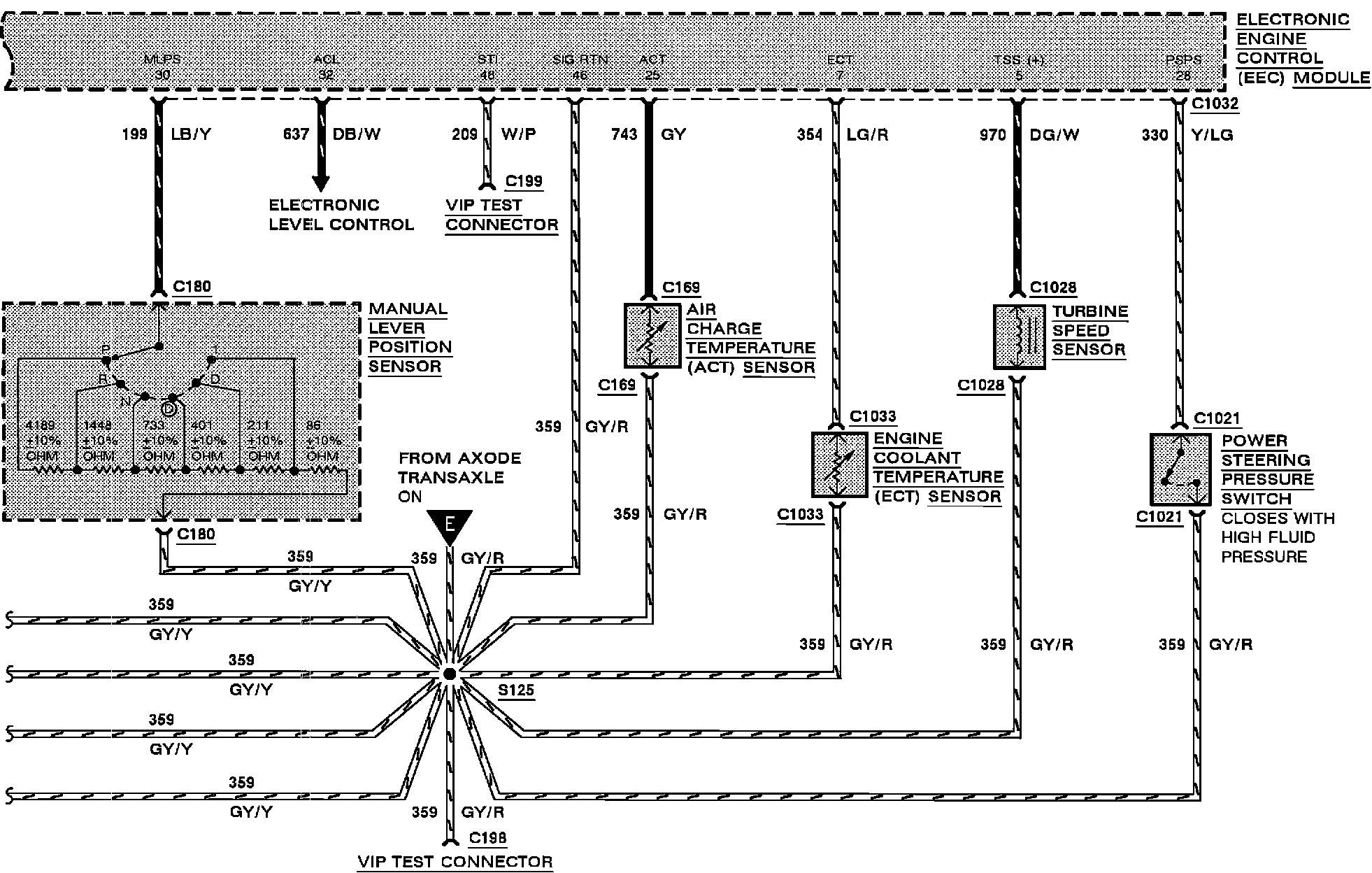

Electronic Engine Control:

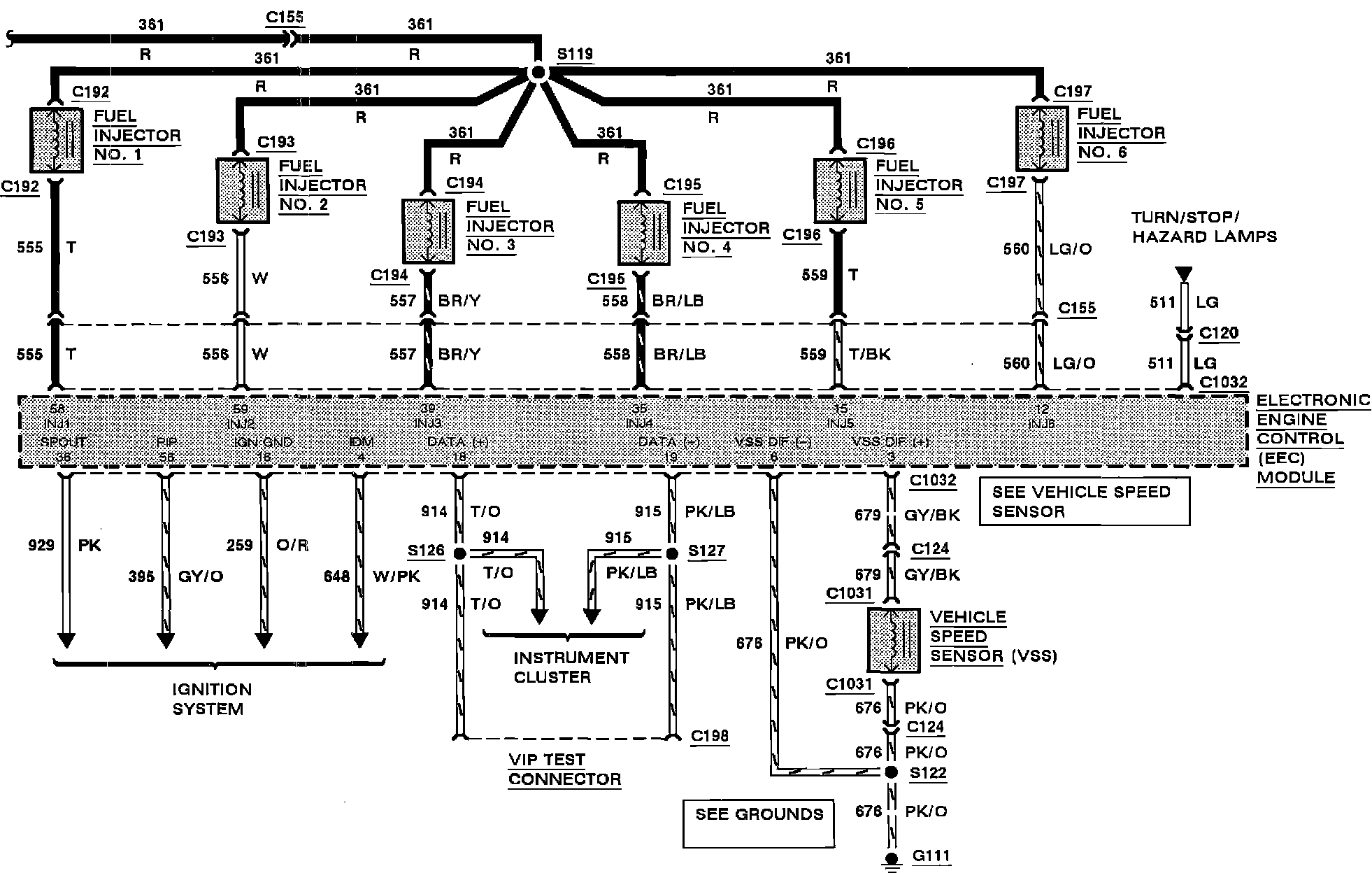

Electronic Engine Control:

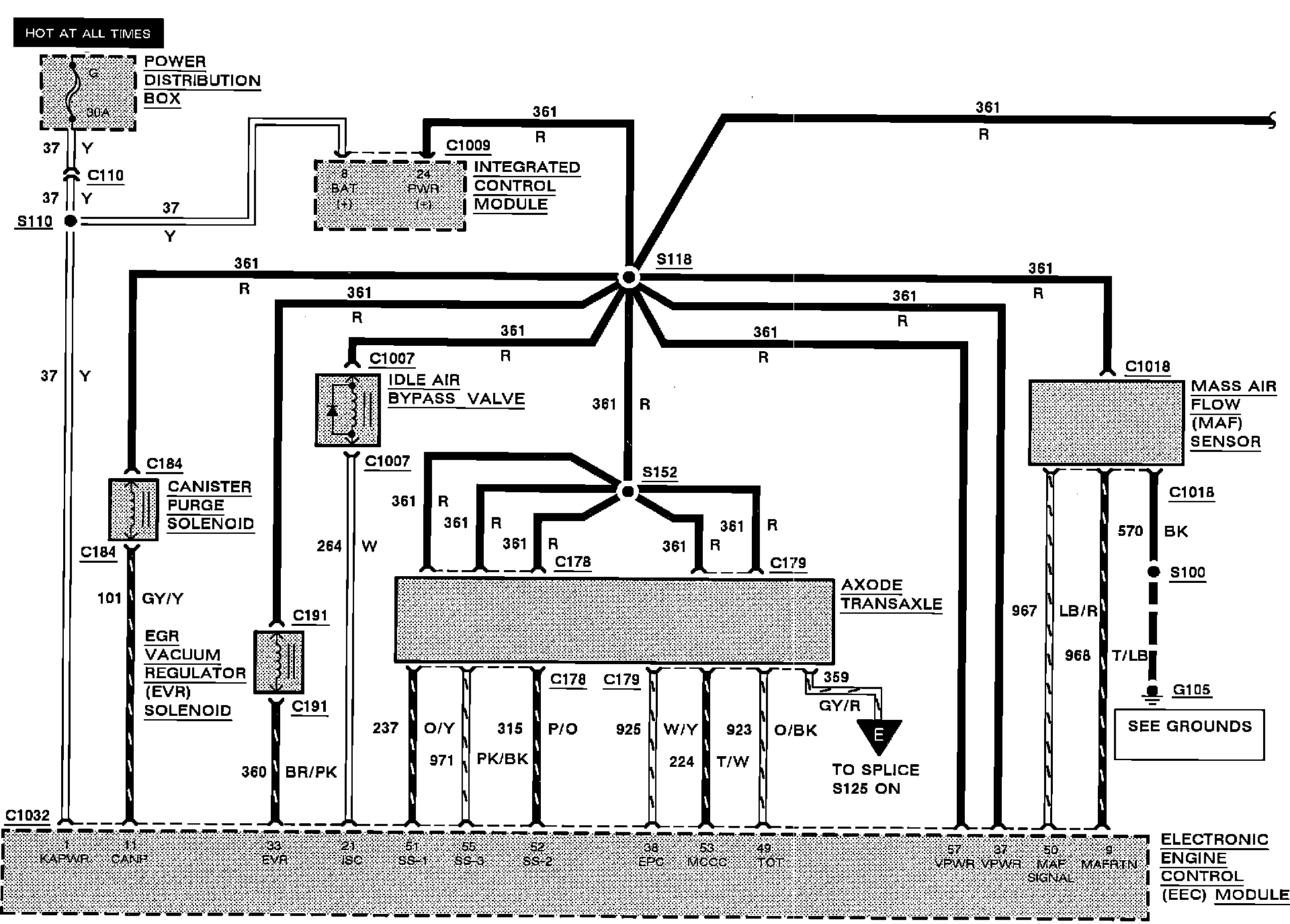

Electronic Engine Control:

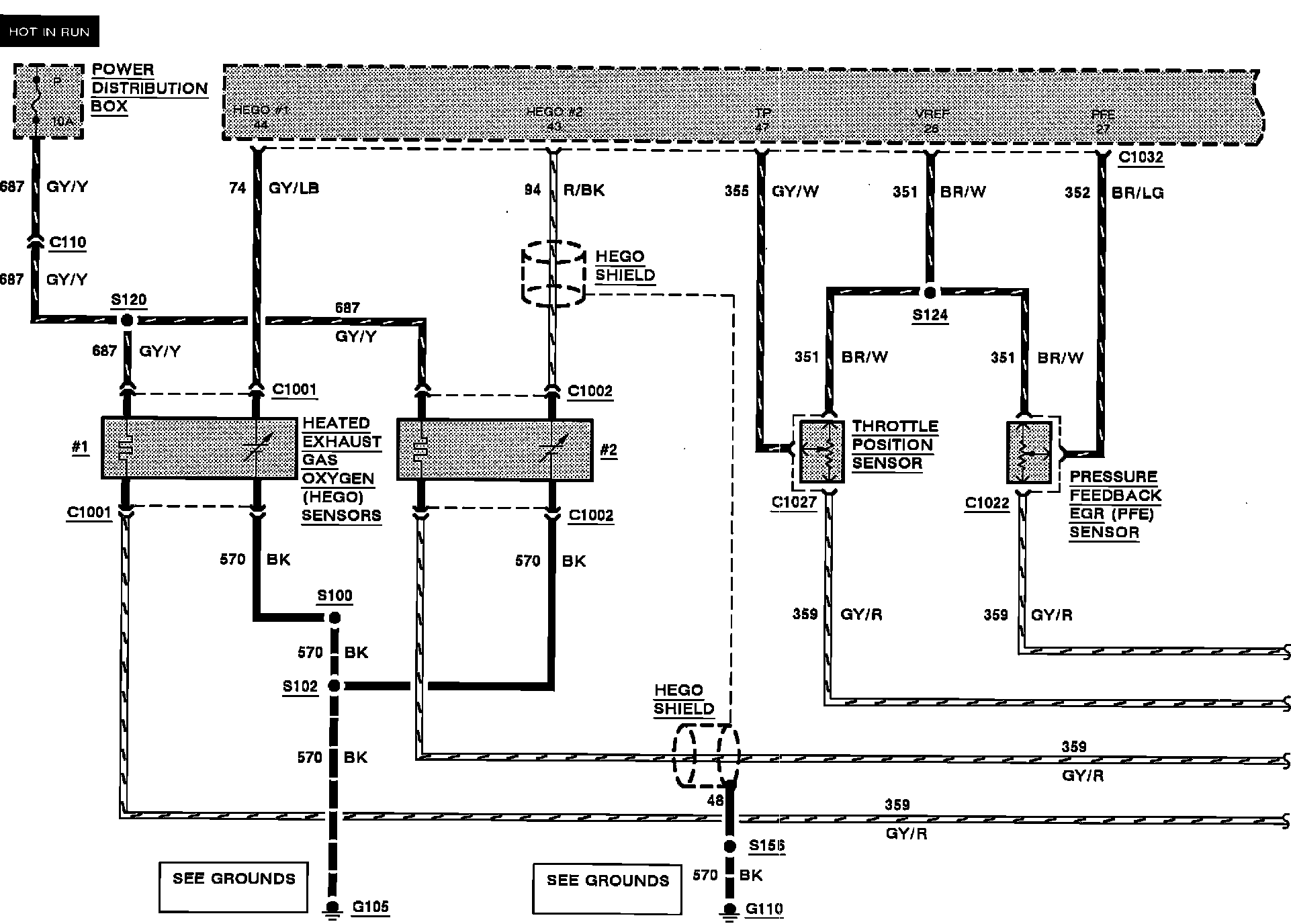

Electronic Engine Control:






Electronic Engine Control:
