Home >> Lincoln >> 1992 >> Continental V6-232 3.8L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> DD Wheel Sensor Diagnosis >> DD4

DD4

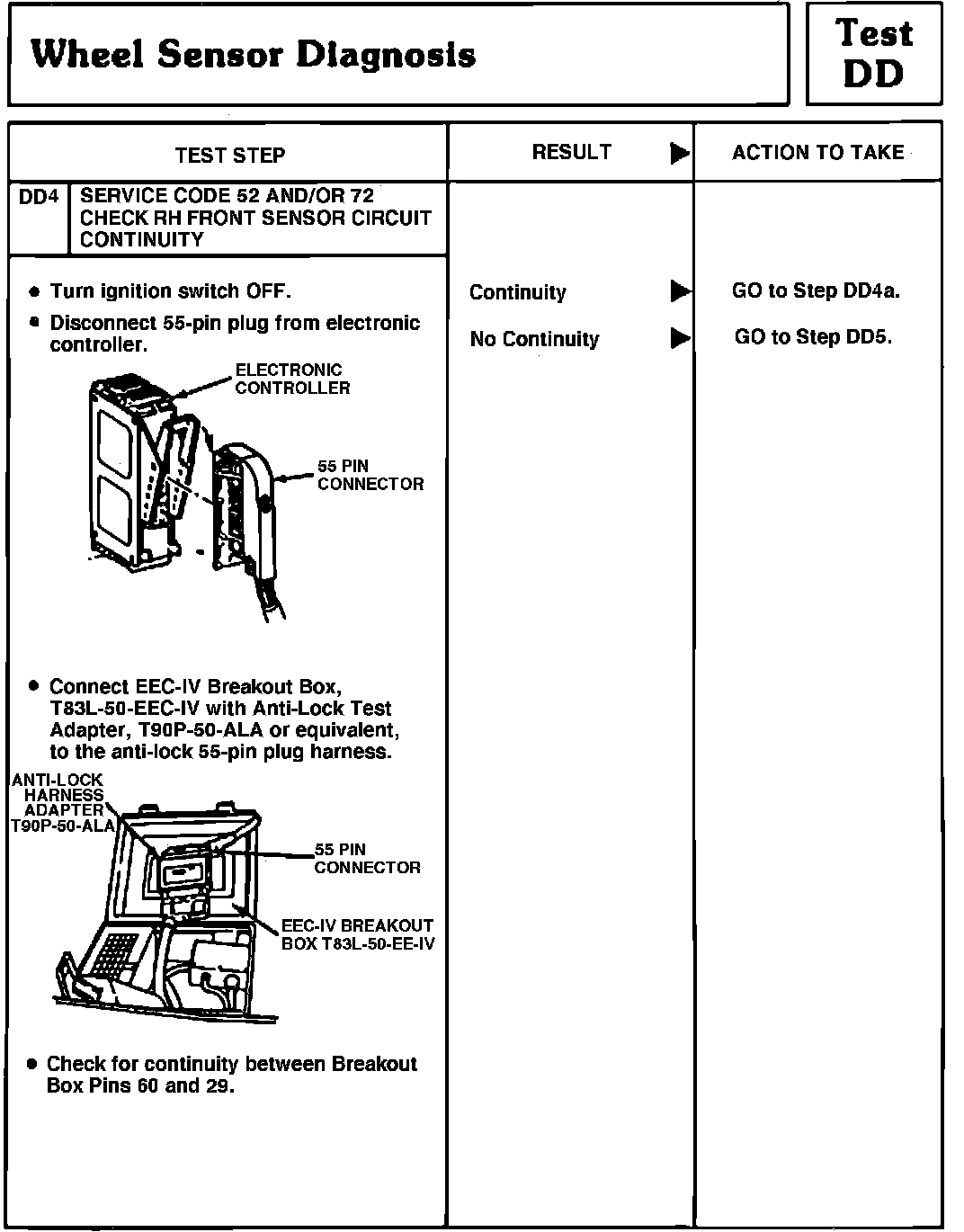

Fig. 46 Test DD4 (Wheel Sensor):
