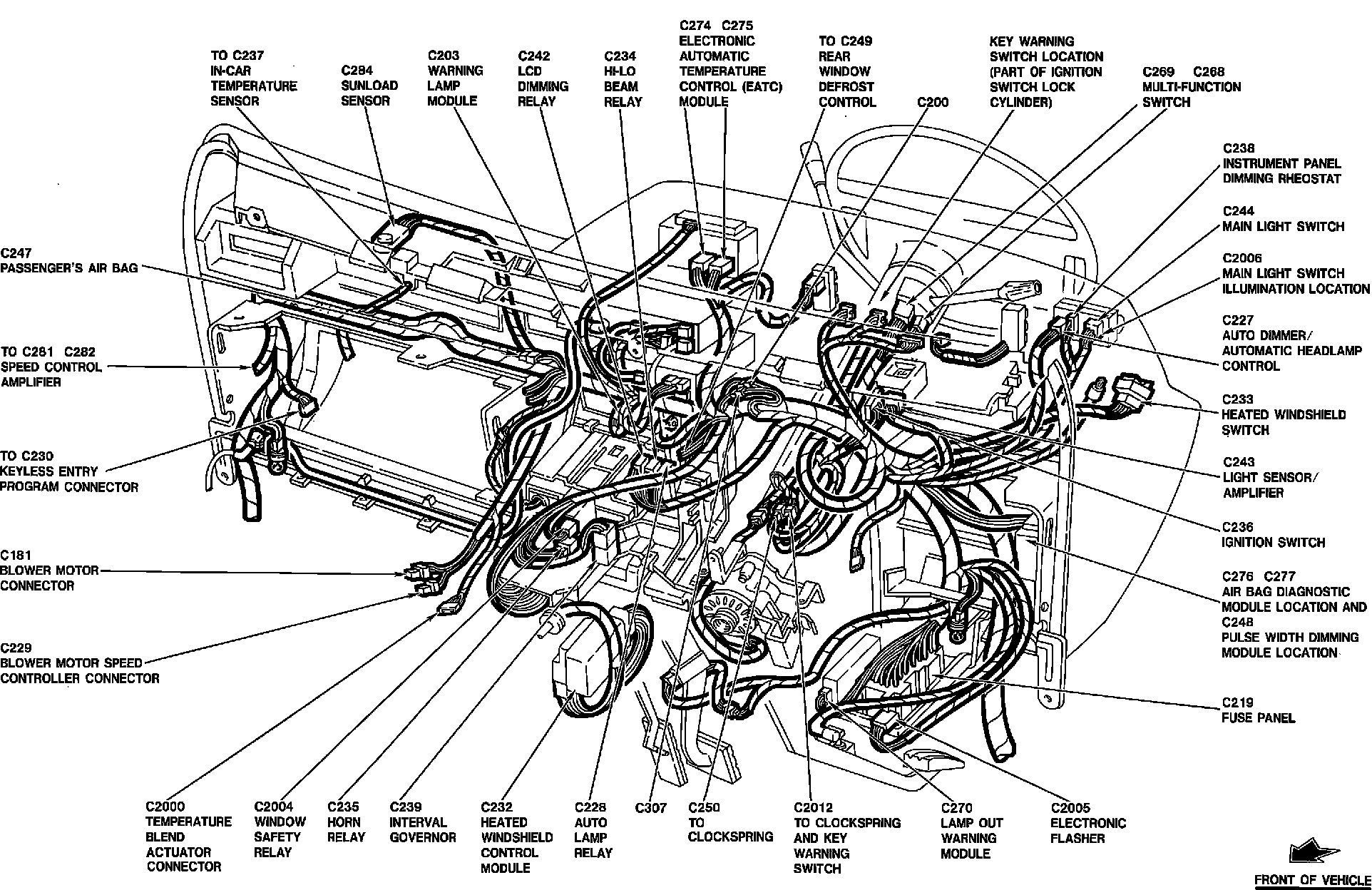

Instrument Panel Views

Component Location:

AIR BAG DIAGNOSTIC MODULE
AUTO DIMMER/AUTOMATIC HEADLAMP CONTROL
AUTO LAMP RELAY
BLOWER MOTOR CONNECTOR
BLOWER MOTOR SPEED CONTROLLER
CLOCKSPRING
CLOCKSPRING AND KEY WARNING SWITCH
ELECTRONIC AUTOMATIC TEMPERATURE CONTROL (EATC) MODULE
ELECTRONIC FLASHER
FUSE PANEL
IGNITION SWITCH
IN-CAR TEMPERATURE SENSOR
INSTRUMENT PANEL DIMMING RHEOSTAT
INTERVAL GOVERNOR
HEATED WINDSHIELD CONTROL MODULE
HEATED WINDSHIELD SWITCH
HI-LO BEAM RELAY
HORN RELAY
KEY WARNING SWITCH
KEYLESS ENTRY PROGRAM CONNECTOR
MAIN LIGHT SWITCH
MAIN LIGHT SWITCH ILLUMINATION
MULTI-FUNCTION SWITCH
LAMP OUT WARNING MODULE
LCD DIMMING RELAY
LIGHT SENSOR/AMPLIFIER
PASSENGER'S AIR BAG
PULSE WIDTH DIMMING MODULE
REAR WINDOW DEFROST CONTROL
SPEED CONTROL AMPLIFIER
SUNLOAD SENSOR
TEMPERATURE BLEND ACTUATOR
WARNING LAMP MODULE
WINDOW SAFETY RELAY

Component Location:

ANTI-LOCK BRAKE PEDAL TRAVEL SWITCH
ANTI-THEFT INDICATOR LAMP
CD PLAYER
CIGAR LIGHTER ILLUMINATION
DIGITAL CLOCK
FUEL FILLER DOOR RELEASE SWITCH
GLOVE BOX LAMP
INSTRUMENT CLUSTER
INSTRUMENT PANEL COURTESY LAMP
MESSAGE CENTER SWITCH
PARK BRAKE SWITCH
RADIO
RADIO ANTENNA
RADIO ANTENNA CABLE
RADIO SUPPRESSION CHOKE CONNECTOR
RADIO NOISE SUPPRESSION GROUND STRAP
SHIFT LOCK ACTUATOR
STEERING RATE SENSOR
STOP LAMP SWITCH
SWITCH ASSEMBLY
TRUNK LID RELEASE SWITCH
VARIABLE ASSIST POWER STEERING (VAPS) MODULE
WARNING CHIME MODULE
