Blend Door Actuator Functional Test Chart - Revision

9207ford02

Article No.
91-25B-9

12/20/91


SHOP MANUAL - 1991 - PAGE 36-75-15 - BLEND DOOR ACTUATOR FUNCTIONAL TEST CHART REVISED


FORD: 1991 CROWN VICTORIA

LINCOLN-MERCURY: 1991 GRAND MARQUIS, TOWN CAR


ISSUE: Wire numbers and color codes shown in the Blend Door Actuator Functional Test Chart on Page 36-75-15 of the 1991 Town Car/Crown Victoria/Grand Marquis Shop Manual are incorrect.

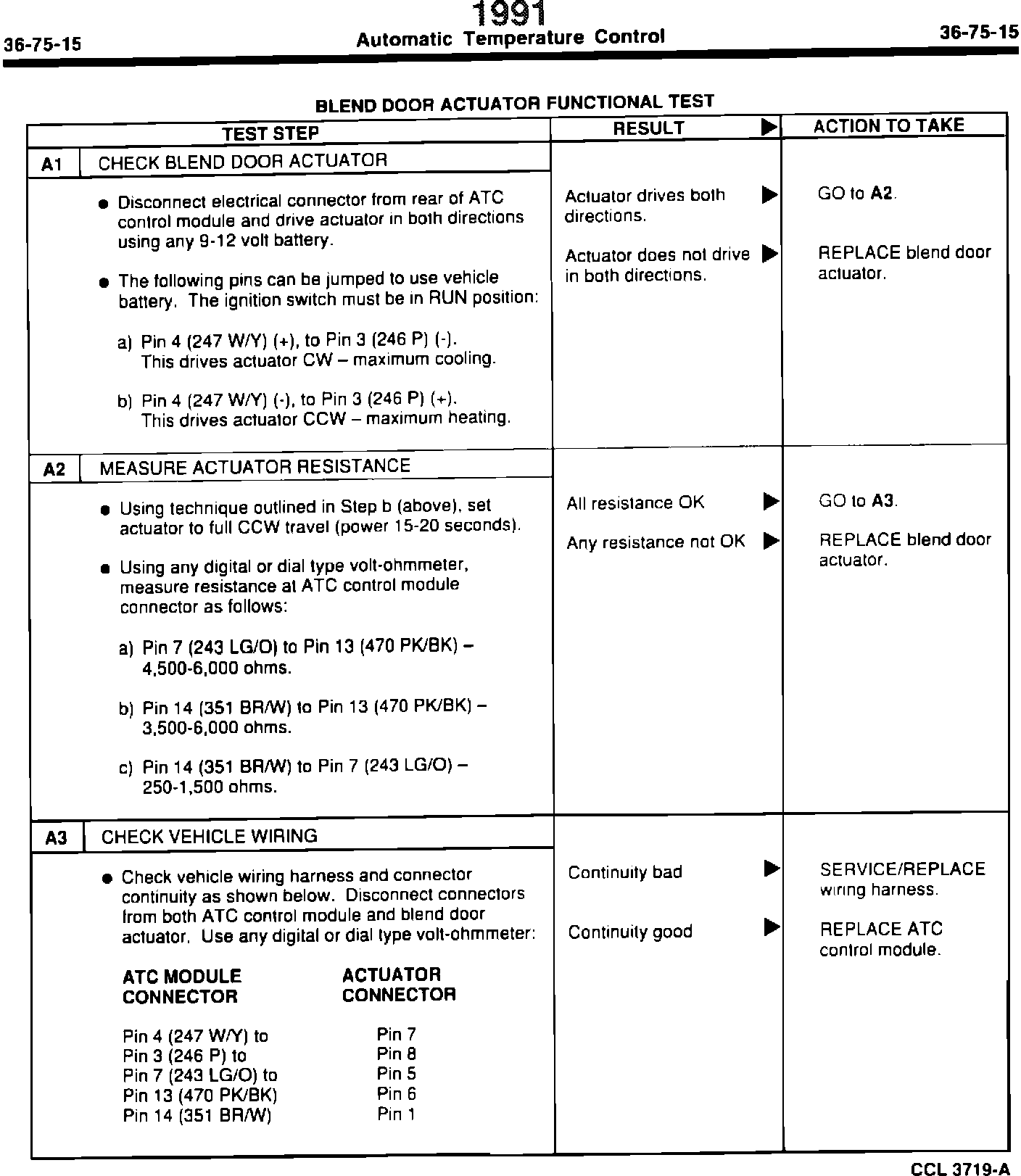

ACTION: Refer to the page following this TSB article for the revised information.


OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 290000
