A/C Blend Door Actuator Functional Test - Revision

91ford08

Article No. 91-5B


SHOP MANUAL - 1991 - PAGE 36-75-15 - TEST STEP A2 REVISED


FORD: 1991 CROWN VICTORIA

LINCOLN-MERCURY: 1991 GRAND MARQUIS, TOWN CAR





ISSUE: Test Step A2, b) and c), of the Blend Door Actuator Functional Test for Automatic. Temperature Control on Page 36-75-15 of the 1991 Lincoln Town Car/Crown Victoria/Grand Marquis Shop Manual is incorrect. The ohm values shown are reversed.

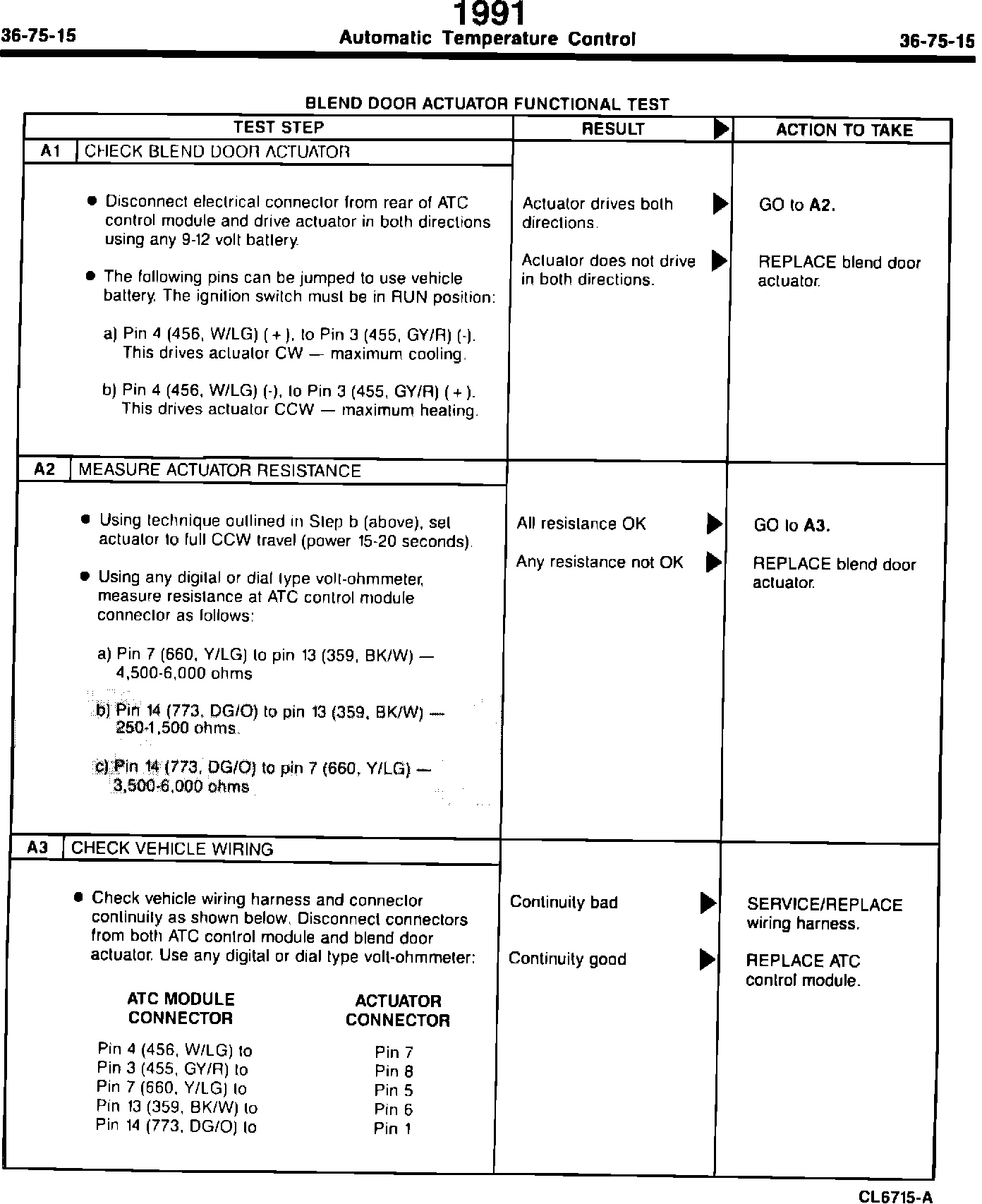

ACTION: Refer to the pages following this TSB article for the correct Test Step ohm values.


OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 290000
