Lincoln
>>
1991
>>
Town Car V8-281 4.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Ignition System
>>
Diagrams For Use With Test Harness
Diagrams For Use With Test Harness

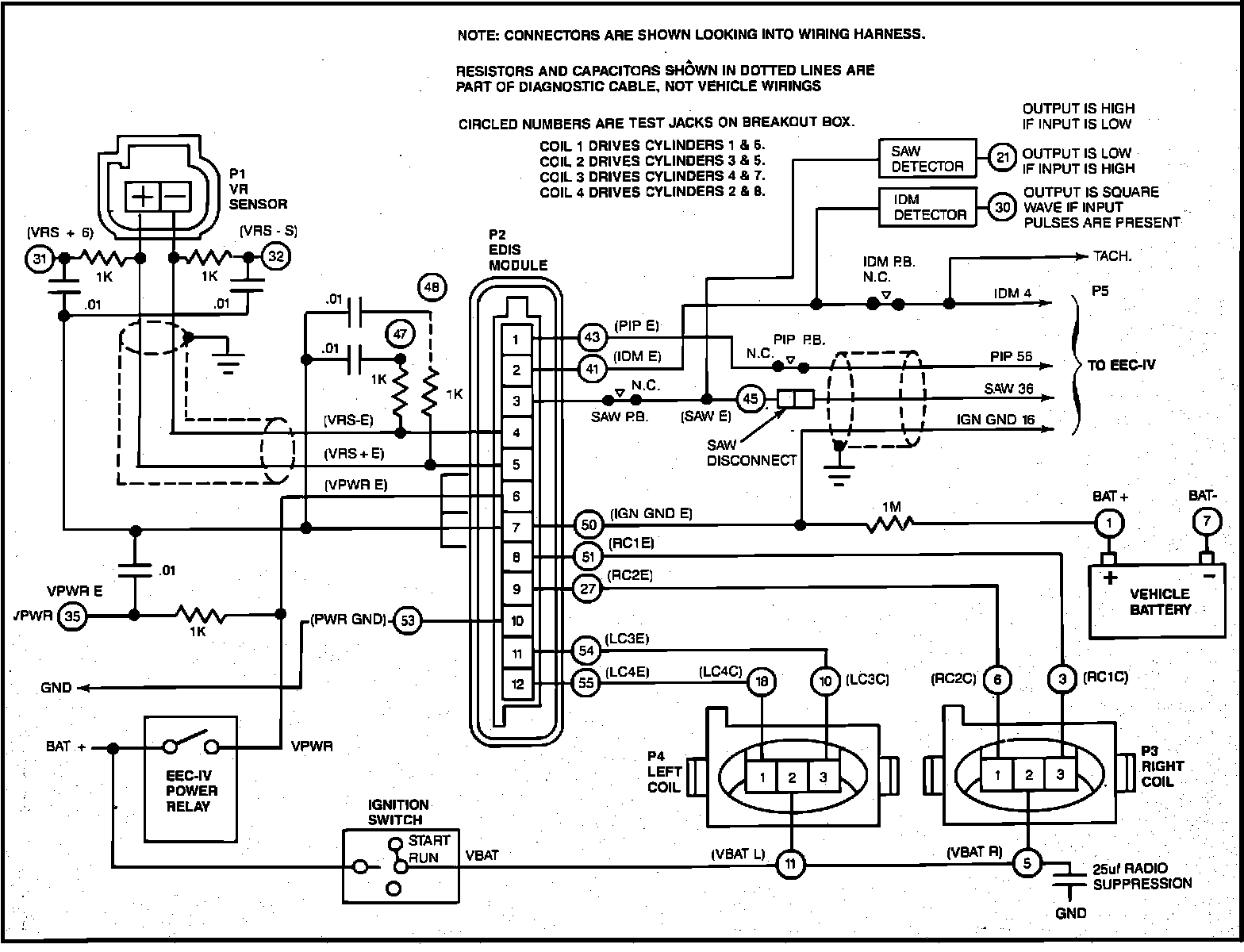

Wiring Schematic:
