Town Car V8-281 4.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Power Distribution
>>
Fuse S
Fuse S

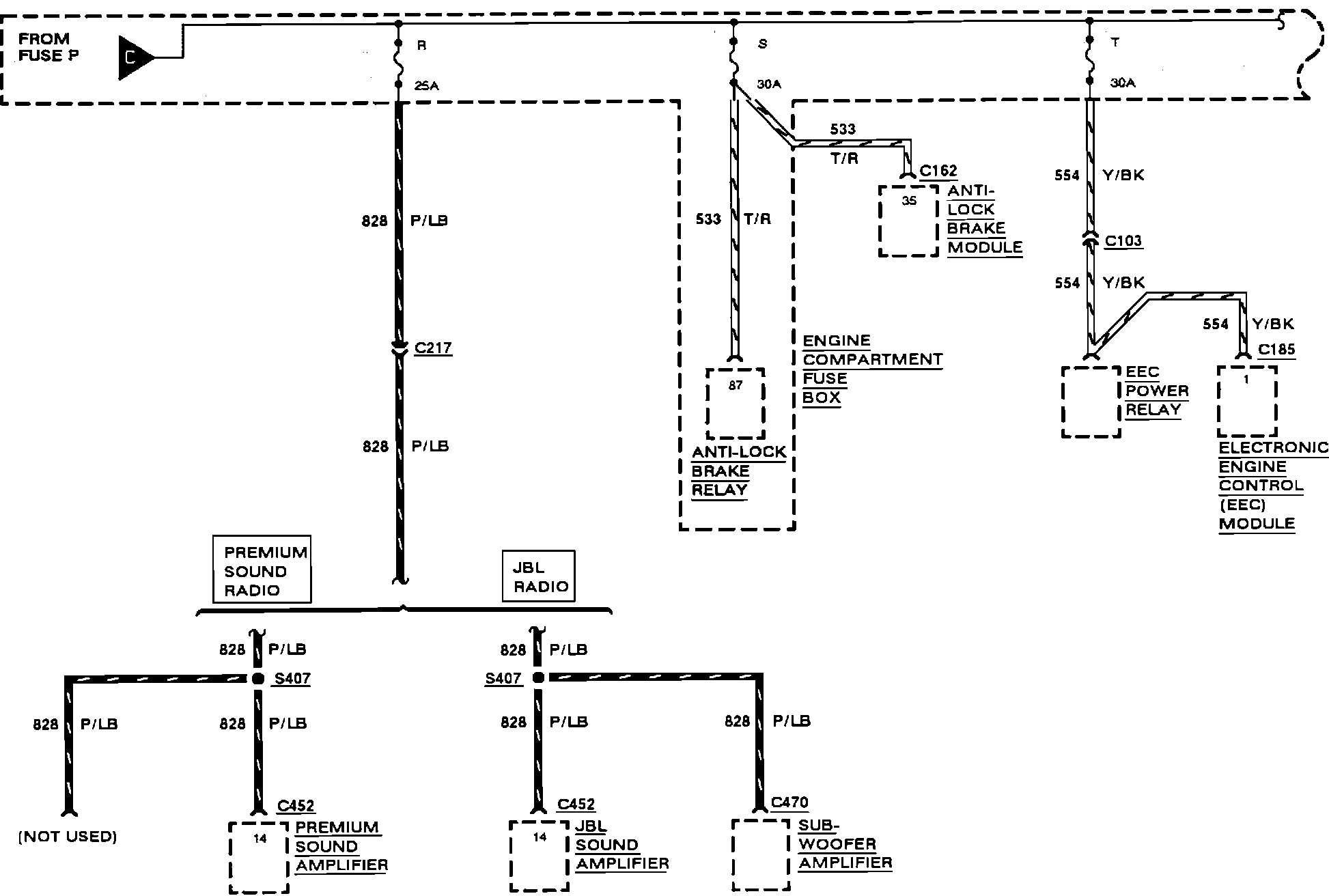

Power Distribution: Fuses R,S,T:
