Home >> Lincoln >> 1991 >> Town Car V8-281 4.6L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Power Distribution >> Fuse P

Fuse P

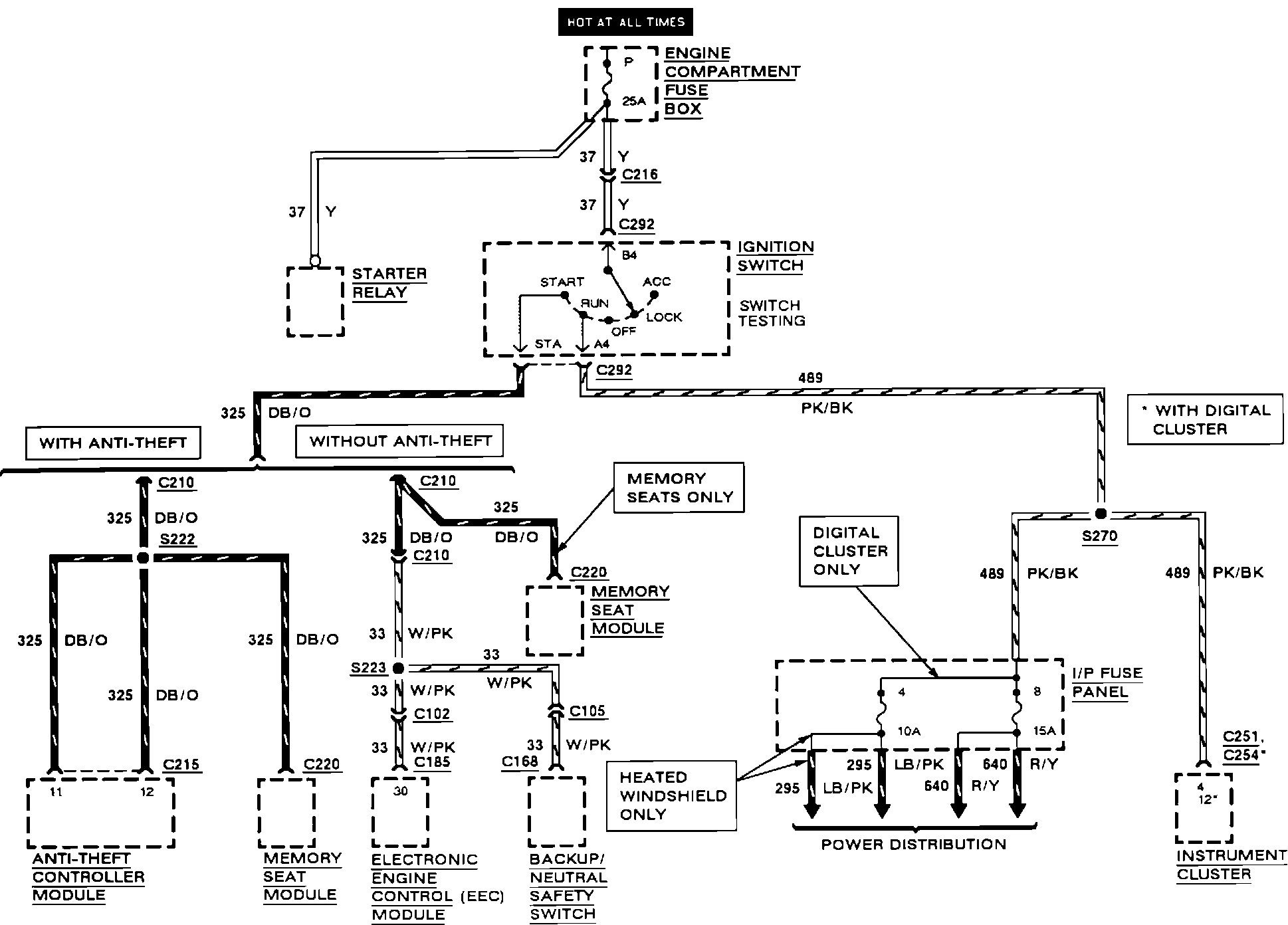

Power Distribution: Fuses M,N,P:

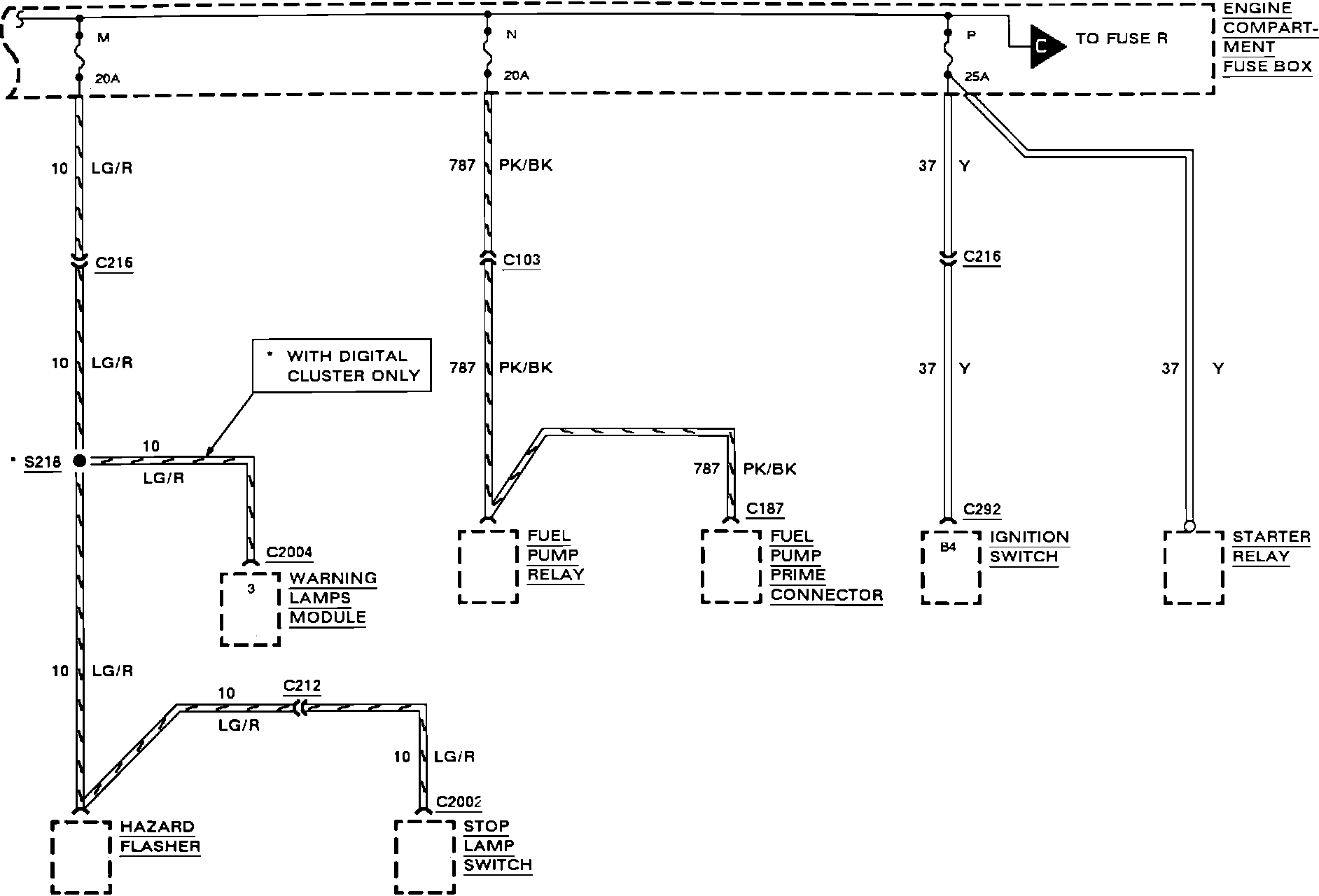

Power Distribution: Fuse P:
