Lincoln
>>
1991
>>
Town Car V8-281 4.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Power Distribution
>>
Fuse 17
>>
Less Automatic Headlamps
Less Automatic Headlamps

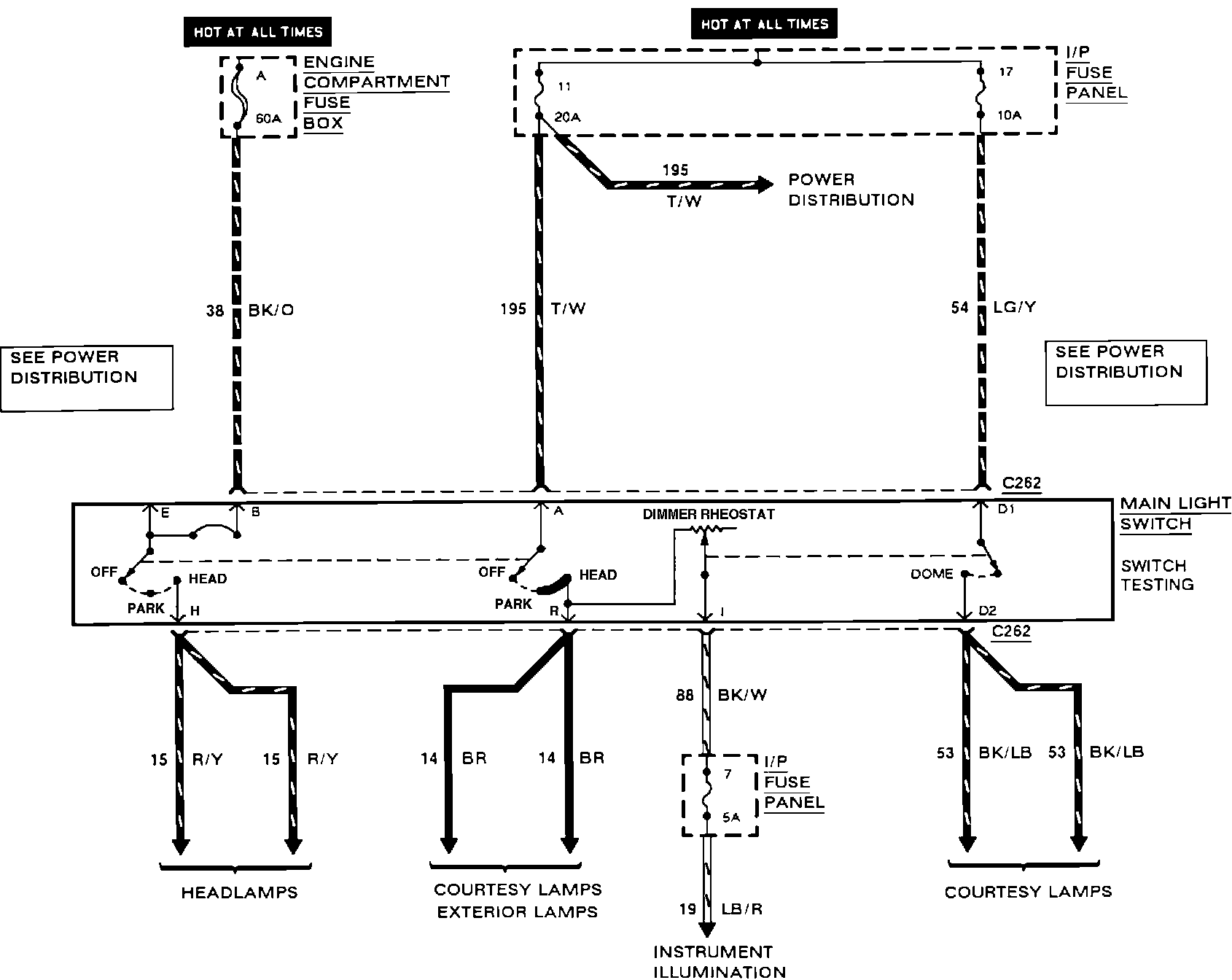

Power Distribution: Fuses A,7,11,17:
