Home
>>
Lincoln
>>
1991
>>
Town Car V8-281 4.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>
System Diagram
>>
Less Keyless Entry System
Less Keyless Entry System

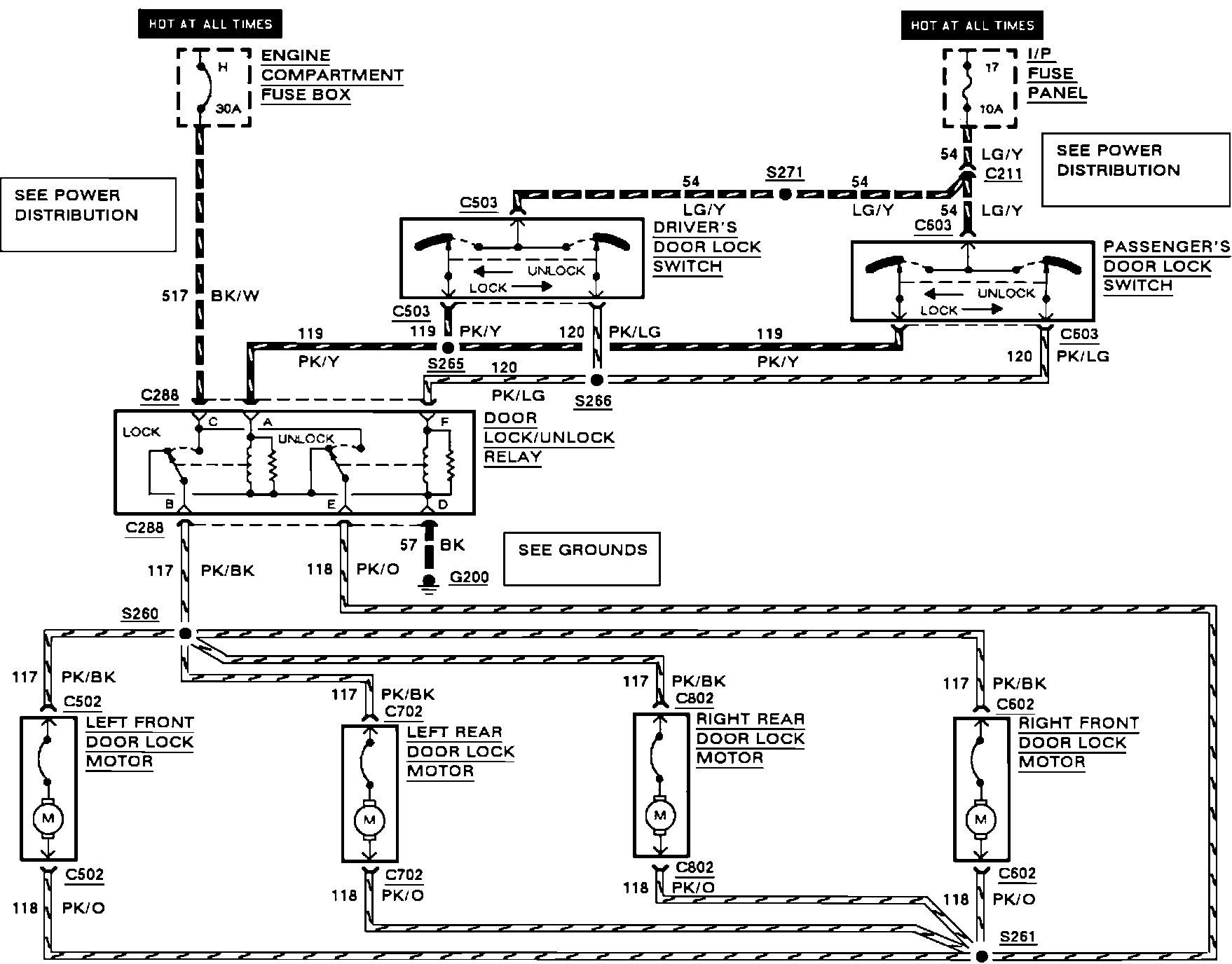

Power Door Locks (without Keyless Entry):
