Lincoln
>>
1987
>>
Mark VII V8-302 5.0L VIN F FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trailer Connector
Trailer Connector

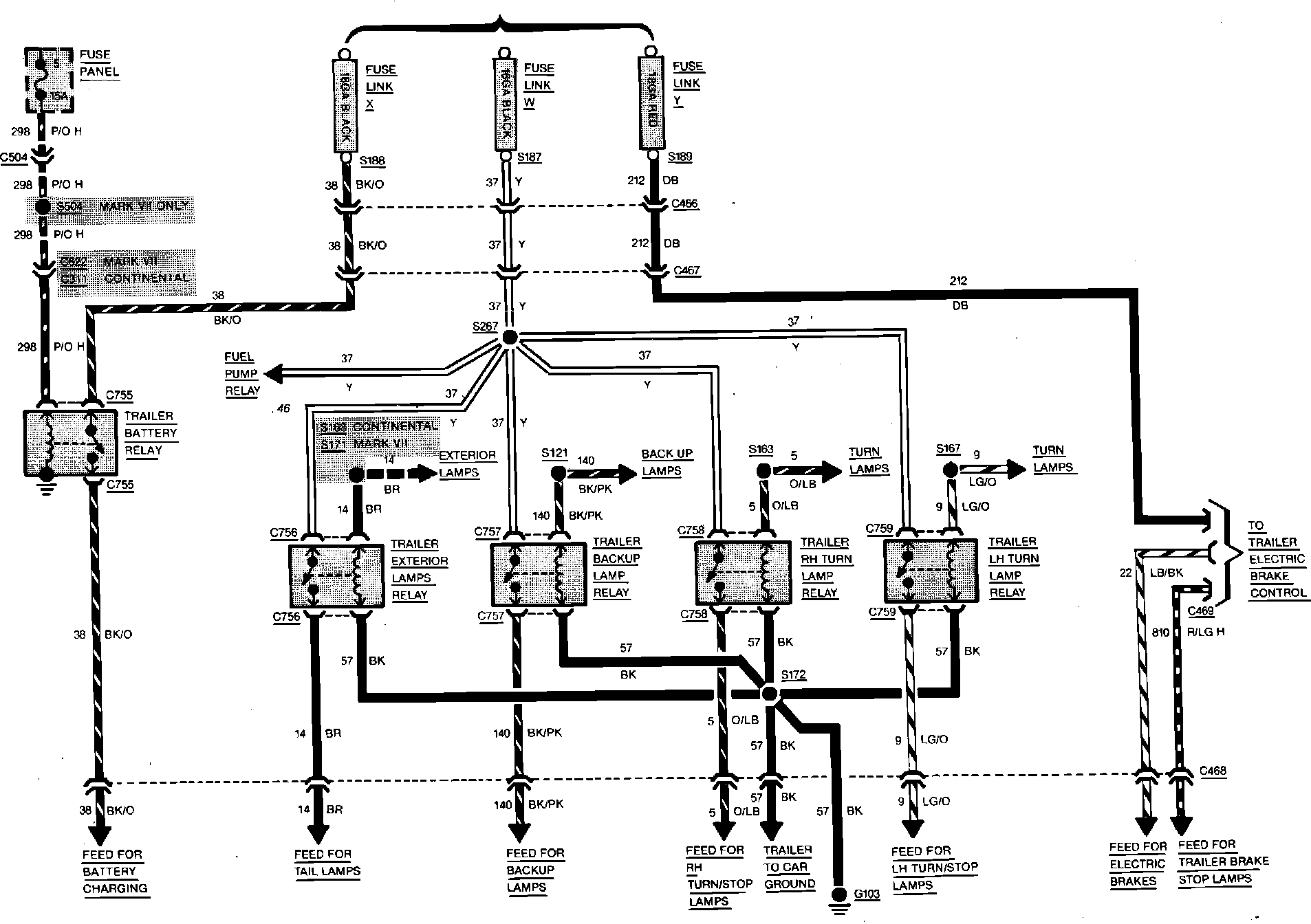

Fig. 83 Trailer Towing Wiring Circuit. Continental & Mark VII:
