Home >> Lincoln >> 1986 >> Mark VII V8-302 5.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Accumulator HVAC >> Locations

Accumulator HVAC: Locations

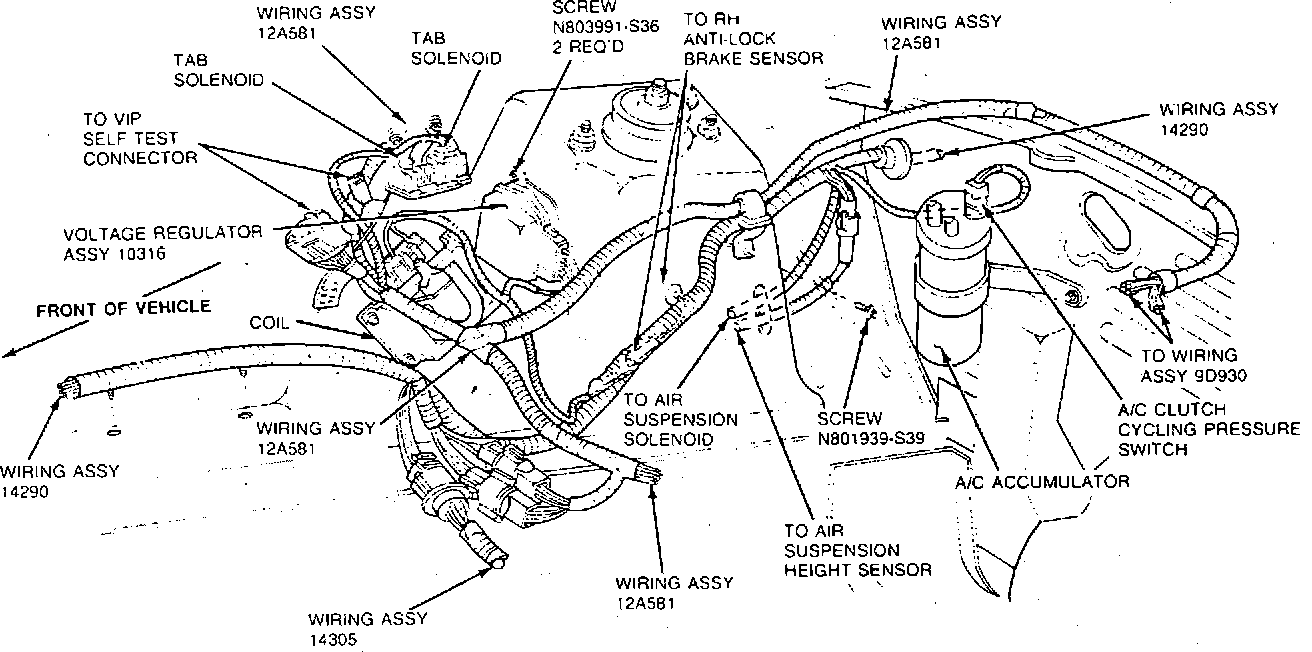

RH fender apron:




RH Side Of Dash Panel
