Less Keyless Entry

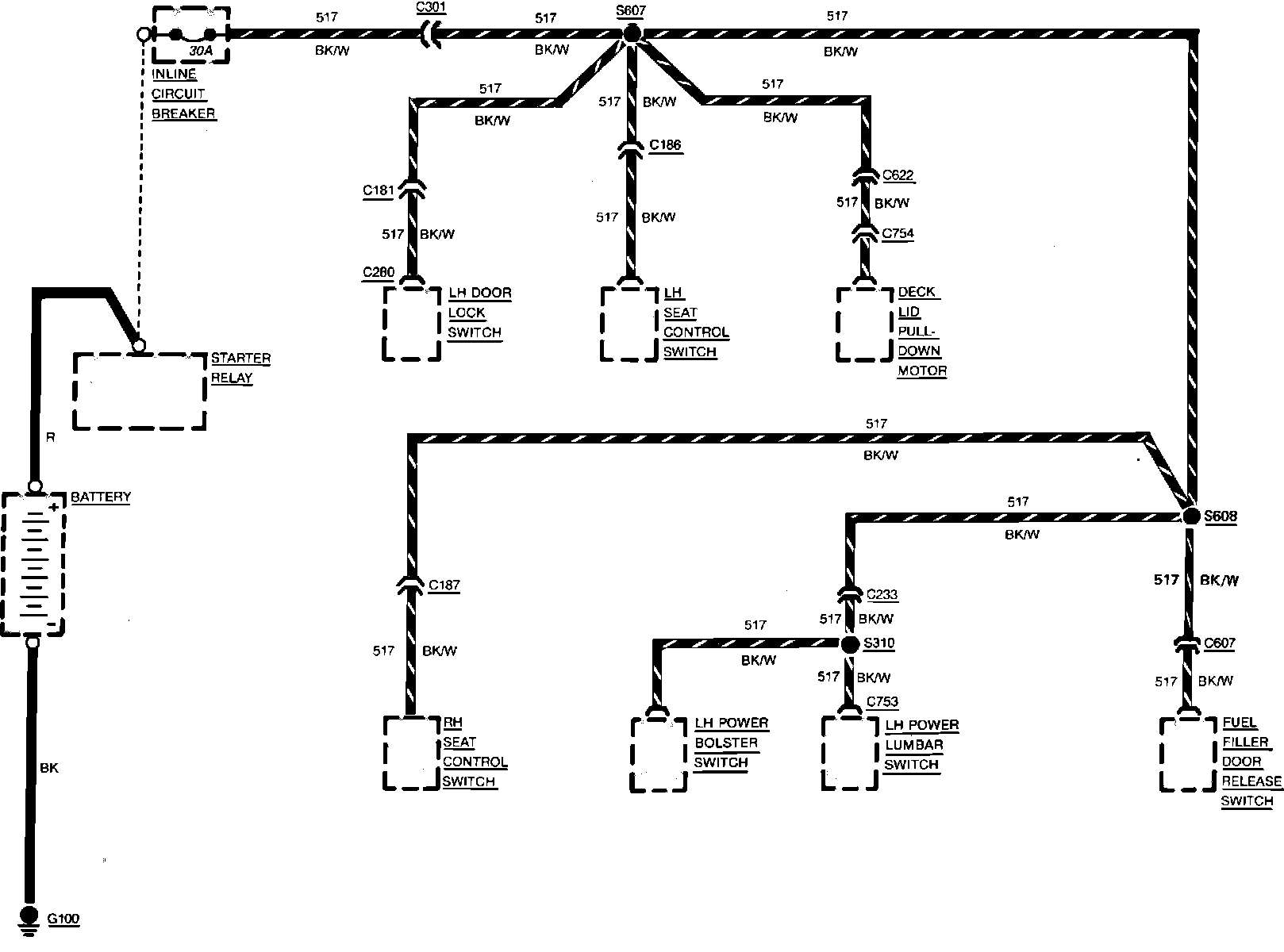

Fig. 65 Power Distribution Wiring Circuit (Circuit 517 Less Keyless Entry). Mark VII:
