With Automatic Lamps & Delayed Exit System Wiring Circuit

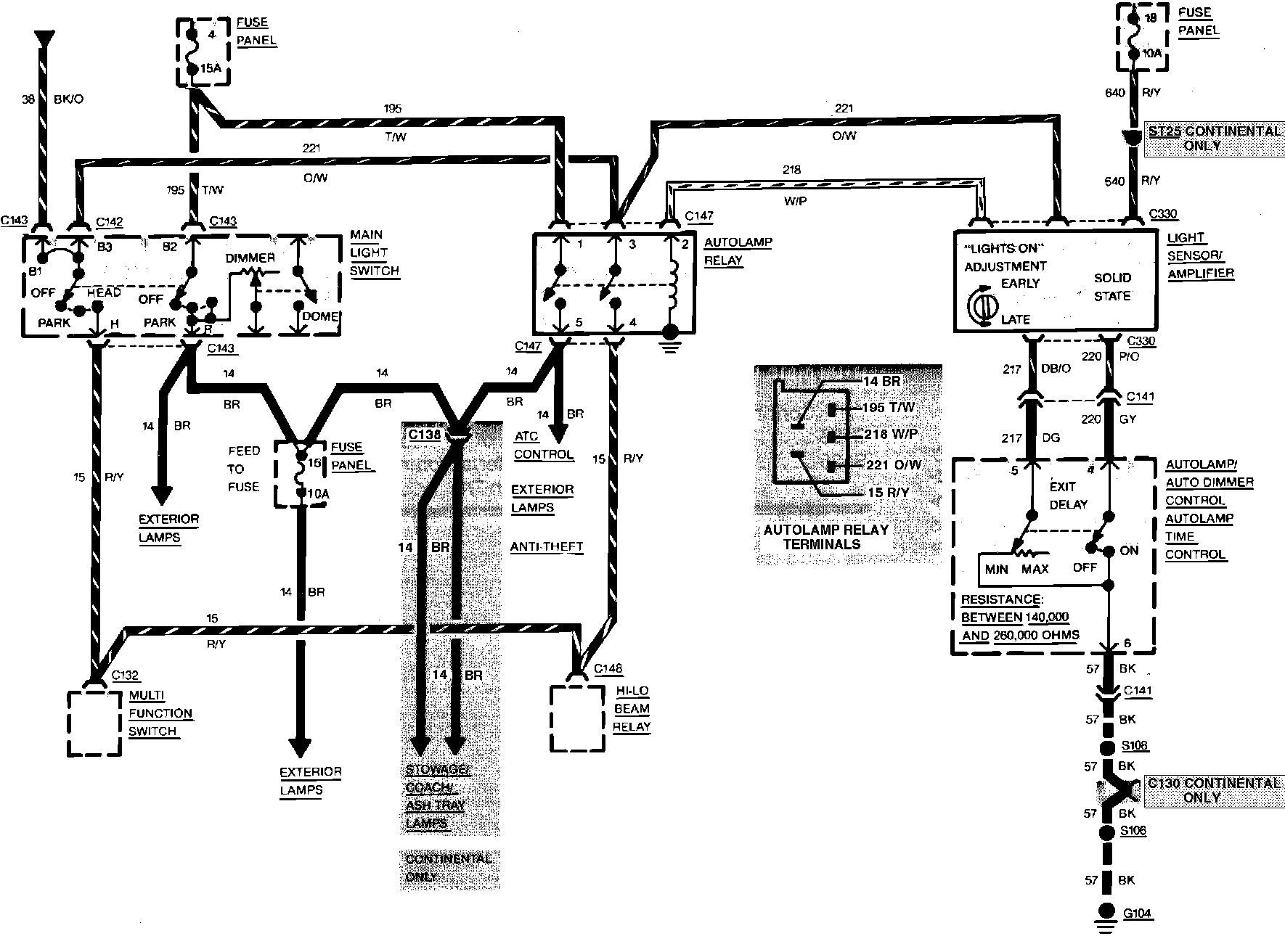

Fig. 7 Automatic Headlamps & Delayed Exit Wiring Circuit. Continental & Mark VII:
